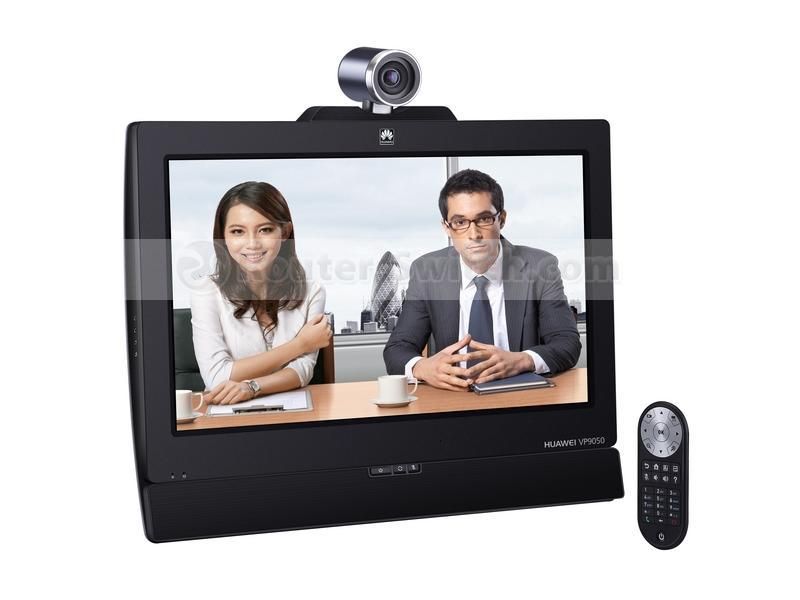

VC8MB4PEN, Huawei VC8MB4PEN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen
Brand: Huawei · SKU: VC8MB4PEN · MPN: VC8MB4PEN · Category: Components
Huawei VC8MB4PEN VP9050,Videoconferencing Terminal(1080P,miniMCU,touch screen,cables-British)
Specifications
| Model | VC8MB4PEN |
|---|---|
| Camera | Embedded high-quality CMOS camera; video capture resolution: 1080p; Automatic Exposure (AE); Automatic White Balance (AWB); manual picture parameter control; rotatable; privacy protection switch. |
| Weight | 14.5 kg |
| Display | 21.5in 16:9 LCD; resolution: 1080p; luminance: > 200 cd/m²; response time: < 5 ms; viewing angle: horizontal 70°, vertical 65°; contrast ratio: 700:1; luminance and contrast control; rotatable; supports external source input. |
| Network | Communication standards: ITU-T H.323, IETF SIP; network standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP, HTTPS, PPPoE, RTP, RTCP; interfaces: 1-port IP, 10/100 Base-T, 2 × RJ45 connectors; 1-port wireless (WCDMA, CDMA2000 EV-DO), USB connectors; bandwidth: IP 64 kbps to 4Mbps; IP total 8Mbps (supports up to 4 HD video endpoints + 3 voice terminals in a conference). |
| Security | H.235 signaling and media stream encryption; AES media stream encryption; conference access password; conference control password; administrator password; H.323 ID and number binding; IP address and number binding. |
| Interface | Audio input: 1 × 3.5mm line-in jack, 1 × 3.5mm mic jack; audio output: 1 × 3.5mm earphone jack, 1 × 3.5mm line-out jack; video input: 1 × DVI / YPbPr / VGA; video output: 1 × DVI / YPbPr / VGA; 1 × USB port. |
| Electrical | Working voltage: 100–240 V AC; working frequency: 50–60 Hz; power consumption: 100W. |
| Embedded MCU | Up to 4 HD 720p video endpoints + 3 voice terminals to join the conference; supports CP, voice activation, camera control, chairman token; two level cascading; mixed H.323 and SIP. |
| Sound System | 2 embedded microphones, supports external microphones; 2 embedded stereo loudspeakers. |
| People Video Resolution | 1080p (optional), 720p, 4CIF/4SIF; frame rates: 1080p 30 fps (optional), 720p 50/60 fps (optional), 720p 30 fps; bandwidth: 512 kbps for 720p 30 fps, 768 kbps for 720p 50/60 fps, 1Mbps for 1080p 30 fps; VideoIntensifier; ViewProcessing. |
| Content Video Resolution | SXGA (1280 × 1024), XGA (1024 × 768), SVGA (800 × 600), VGA (640 × 480). |
| Audio Standards & Protocols | AAC-LD Stereo, G.722, G.711, G.728; HWA-LD Stereo (Huawei Audio Broadband Low Delay Stereo); Acoustic Echo Cancellation (AEC); Acoustic Noise Suppression (ANS) 12 dB; Automatic Gain Control (AGC) ± 6 dB; VoiceClear; AudioEnhancer; audio-lip synchronization. |
| Environmental Specification | Operating temperature: 0–40°C; operating humidity: 10–80%; non-operating temperature: -40–85°C; non-operating humidity (non-condensing): 0–95%; peripheral noise: < 46 dBA SPL; lowest illuminance: 15 lux; recommended illuminance: > 300 lux; codec dimensions (L × W × H): 542mm × 114mm × 490mm; package dimensions (L × W × H): 685mm × 269mm × 685mm; weight: 8.214.5 kg. |
| Video Standards & Protocols | H.264, H.263, H.263+, H.261; ITU-T H.239; VME (Video Motion Enhancement). |
| Other ITU-Supported Standards | H.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this VC8MB4PEN, Huawei VC8MB4PEN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen (VC8MB4PEN) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This VC8MB4PEN, Huawei VC8MB4PEN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the VC8MB4PEN, Huawei VC8MB4PEN VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VC8MB4PEN.
