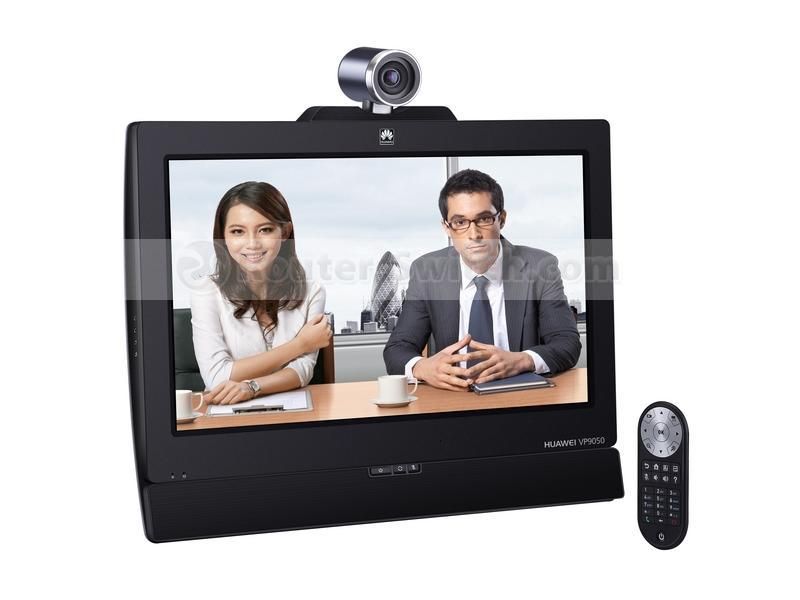

VC8MB2PEN, Huawei VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen

Brand: Huawei · SKU: VC8MB2PEN · MPN: VC8MB2PEN · Category: Components

VC8MB2PEN, Huawei VP9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen
$6,477.72
In Stock • 10 units

Huawei VC8MB2PEN VP9050,Videoconferencing Terminal(1080P,miniMCU,touch screen,cables-Italy)

View Components Products

Specifications

ModelVC8MB2PEN
CameraEmbedded high quality CMOS camera; video capture resolution: 1080p; automatic exposure (AE); automatic white balance (AWB); manual picture parameters control; rotatable; private protection switch.
Weight14.5 kg
Display21.5in 16:9 LCD; resolution: 1080p; luminance > 200 cd/m²; response time < 5 ms; viewing angle: horizontal 70°, vertical 65°; contrast: 700:1; luminance and contrast control; rotatable; supports external source input.
NetworkCommunication standards: ITU-T H.323, IETF SIP. Network standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP, HTTPS, PPPoE, RTP, RTCP. Interfaces: 1-port IP 10/100Base-T, 2 × RJ45 connectors; 1-port wireless (WCDMA, CDMA2000 EV-DO), USB connectors. Bandwidth: IP 64 kbps to 4Mbps; IP total 8Mbps (supports up to 4 HD video endpoints plus 3 voice terminals to join the conference).
SecurityH.235 signaling and media stream encryption; AES media stream encryption; conference access password; conference control password; administrator password; H.323 ID and number binding; IP address and number binding.
InterfaceAudio input interfaces: 1 × 3.5mm line-in jack, 1 × 3.5mm mic jack. Audio output interfaces: 1 × 3.5mm earphone jack, 1 × 3.5mm line-out jack. Video input interface: 1 × DVI / YPbPr / VGA. Video output interface: 1 × DVI / YPbPr / VGA. USB: 1 × USB port.
ElectricalWorking voltage: 100–240 V AC; working frequency: 50–60 Hz; power consumption: 100W.
Embedded MCUUp to 4 HD 720p video endpoints plus 3 voice terminals to join the conference; supports CP, voice activation, camera control, and chairman token; two level cascading; mixed H.323 and SIP.
Sound System2 embedded microphones, supports external microphones; 2 embedded stereo loudspeakers.
People Video Resolution1080p (optional), 720p, 4CIF/4SIF; 1080p 30 fps (optional); 720p 50/60 fps (optional); 720p 30 fps; 512 kbps for 720p 30 fps; 768 kbps for 720p 50/60 fps; 1Mbps for 1080p 30 fps; Video Intensifier; View Processing.
Content Video ResolutionSXGA (1280 × 1024), XGA (1024 × 768), SVGA (800 × 600), VGA (640 × 480).
Physical CharacteristicsCodec dimensions (L × W × H): 542mm × 114mm × 490mm; package dimensions (L × W × H): 685mm × 269mm × 685mm; weight: 8.214.5 kg.
Environmental SpecificationOperating temperature: 0–40°C; operating humidity: 10–80%; non-operating temperature: -40–85°C; non-operating humidity (non-condensing): 0–95%; peripheral noise: < 46 dBA SPL; lowest illuminance: 15 lux; recommended illuminance: > 300 lux.
Audio Standards and ProtocolsAAC-LD stereo, G.722, G.711, G.728; HWA-LD Stereo (Huawei Audio Broadband Low Delay Stereo); acoustic echo cancellation (AEC); acoustic noise suppression (ANS) 12 dB; automatic gain control (AGC) ± 6 dB; VoiceClear; AudioEnhancer; audio-lip synchronization.
Other ITU-Supported StandardsH.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140.
Video Standards and ProtocolsH.264, H.263, H.263+, H.261; ITU-T H.239; VME (Video Motion Enhancement).
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
