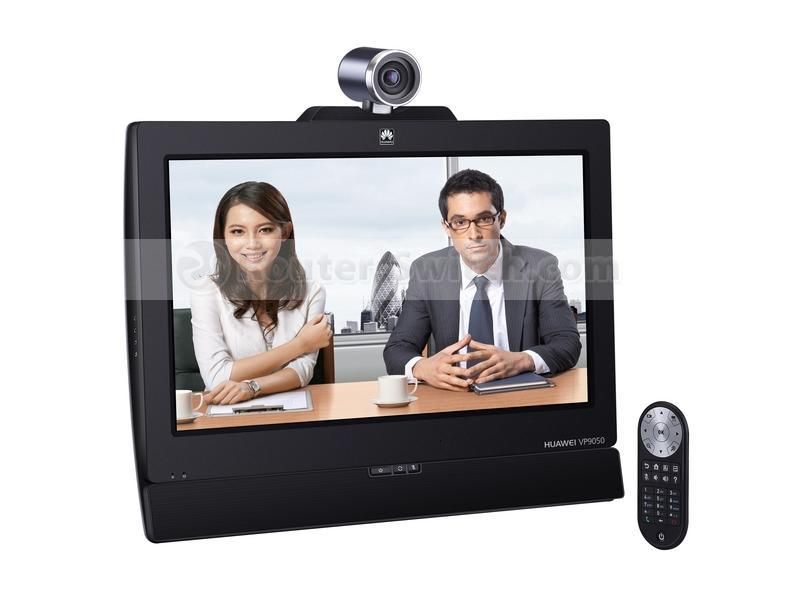

VC8MB1PEN, Huawei VP9050 Videoconferencing Terminal, 720P/miniMCU/Touch screen

Brand: Huawei · SKU: VC8MB1PEN · MPN: VC8MB1PEN · Category: Components

VC8MB1PEN, Huawei VP9050 Videoconferencing Terminal, 720P/miniMCU/Touch screen
$5,795.08
In Stock • 10 units

Huawei VC8MB1PEN VP9050,Videoconferencing Terminal(720P,miniMCU,touch screen,cables-Europe)

View Components Products

Specifications

ModelVC8MB1PEN
CameraEmbedded high-quality CMOS camera; video capture resolution: 1080p; Automatic Exposure (AE); Automatic White Balance (AWB); manual picture parameters control; rotatable; private protection switch.
Weight14.5 kg
Display21.5in 16:9 LCD; resolution: 1080p; luminance: > 200 cd/m²; response time: < 5 ms; viewing angle: horizontal 70°, vertical 65°; contrast ratio: 700:1; luminance and contrast control; rotatable; supports external source input.
SecurityH.235 signaling and media stream encryption; AES media stream encryption; conference access password; conference control password; administrator password; H.323 ID and number binding; IP address and number binding.
ElectricalWorking voltage: 100–240 V AC; working frequency: 50–60 Hz; power consumption: 100W.
Embedded MCUUp to 4 HD 720p video endpoints + 3 voice terminals to join the conference; supports CP, voice activation, camera control, chairman token; two-level cascading; mixed H.323 and SIP.
Sound System2 embedded microphones, supports external microphones; 2 embedded stereo loudspeakers.
Audio InterfacesAudio input: 1 × 3.5mm line-in jack, 1 × 3.5mm mic jack; audio output: 1 × 3.5mm earphone jack, 1 × 3.5mm line-out jack.
Network ProtocolsCommunication standards: ITU-T H.323, IETF SIP; network standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP, HTTPS, PPPoE, RTP, RTCP.
Video & USB InterfacesVideo input: 1 × DVI / YPbPr / VGA; video output: 1 × DVI / YPbPr / VGA; 1 × USB port.
People Video Resolution1080p (optional), 720p, 4CIF/4SIF; 1080p @ 30 fps (optional), 720p @ 50/60 fps (optional), 720p @ 30 fps; 512 kbps for 720p @ 30 fps; 768 kbps for 720p @ 50/60 fps; 1Mbps for 1080p @ 30 fps; VideoIntensifier; ViewProcessing.
Content Video ResolutionSXGA (1280 × 1024), XGA (1024 × 768), SVGA (800 × 600), VGA (640 × 480).
Physical CharacteristicsCodec dimensions (L × W × H): 542mm × 114mm × 490mm; package dimensions (L × W × H): 685mm × 269mm × 685mm; weight: 8.214.5 kg.
Audio Standards & ProtocolsAAC-LD Stereo, G.722, G.711, G.728; HWA-LD Stereo (Huawei Audio Broadband Low Delay Stereo); Acoustic Echo Cancellation (AEC); Acoustic Noise Suppression (ANS) 12 dB; Automatic Gain Control (AGC) ± 6 dB; VoiceClear; AudioEnhancer; audio-lip synchronization.
Video Standards & ProtocolsH.264, H.263, H.263+, H.261; ITU-T H.239; VME (Video Motion Enhancement).
Environmental SpecificationsOperating temperature: 0–40°C; operating humidity: 10–80%; non-operating temperature: -40–85°C; non-operating humidity (non-condensing): 0–95%; peripheral noise: < 46 dBA SPL; lowest illuminance: 15 lx; recommended illuminance: > 300 lx.
Other ITU-Supported StandardsH.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140.
Network Interfaces & Bandwidth1 IP port, 10/100Base-T, 2 × RJ45 connectors; 1 wireless port (WCDMA, CDMA2000 EV-DO), USB connectors; IP bandwidth: 64 kbps to 4Mbps; IP total: 8Mbps (supports up to 4 HD video endpoints + 3 voice terminals to join the conference).
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this VC8MB1PEN, Huawei VP9050 Videoconferencing Terminal, 720P/miniMCU/Touch screen (VC8MB1PEN) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This VC8MB1PEN, Huawei VP9050 Videoconferencing Terminal, 720P/miniMCU/Touch screen includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the VC8MB1PEN, Huawei VP9050 Videoconferencing Terminal, 720P/miniMCU/Touch screen compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VC8MB1PEN.
