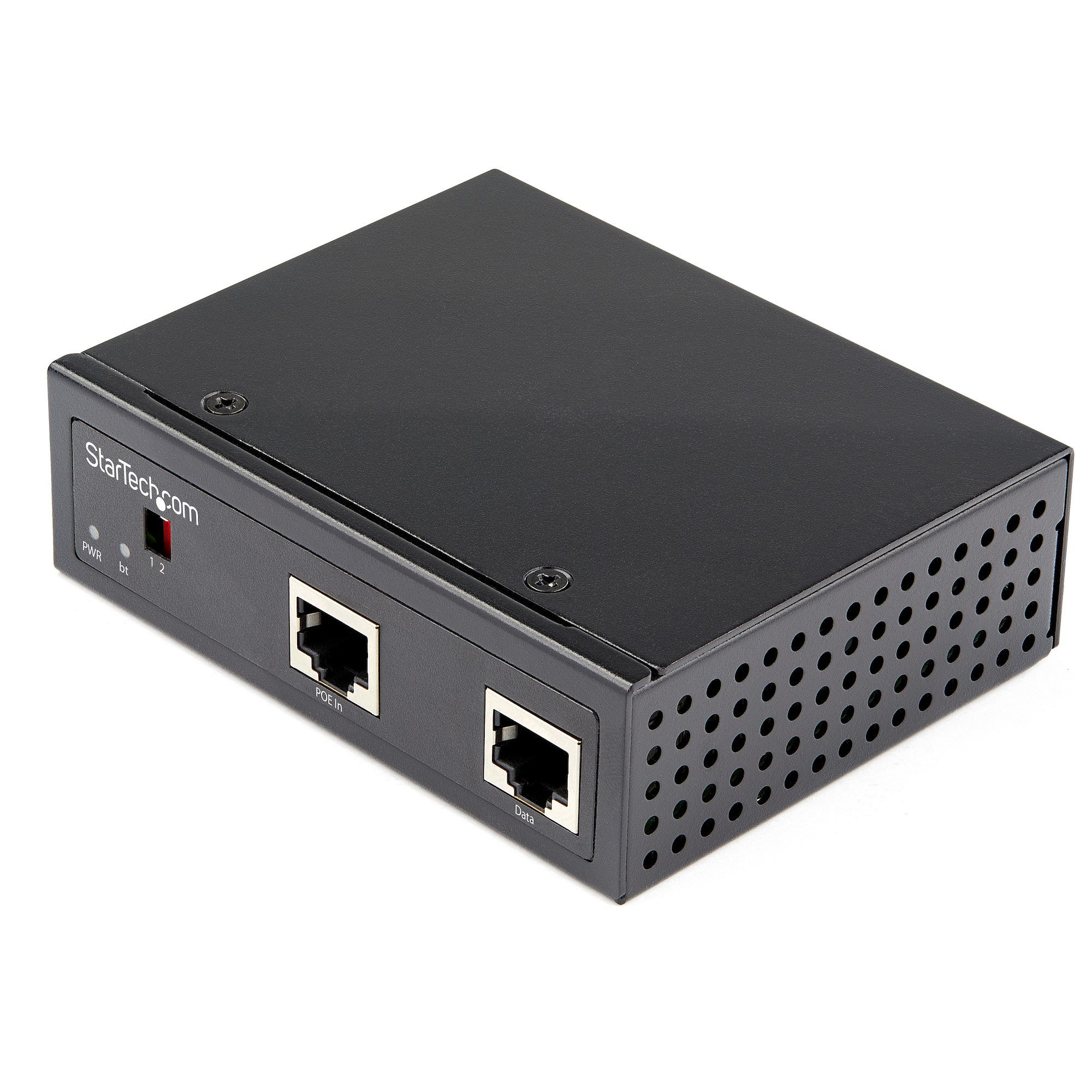

StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C

Brand: StarTech.com · SKU: STA-POESLT1G48V · MPN: Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C · Category: Components

StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C
$339.74
In Stock • 10 units

StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000Base-T(X), IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Full, CSMA/CD

View Components Products

Specifications

Depth104 mm
Width81.5 mm
Height32 mm
Weight150 g
CertificationCE, FCC, UL
Duplex systemFull
Package depth64 mm
Package width162 mm
Auto MDI/MDI-XYes
LED indicatorsYes
Output current1.5 A
Package length21.1 cm
Package weight392 g
Product colourBlack
Surge protectionYes
RJ-45 input ports1
Cabling technology10/100/1000Base-T(X)
RJ-45 output ports1
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Compliance certificatesRoHS
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet interface typeGigabit Ethernet
Quick installation guideYes
Power over Ethernet (PoE)Yes
Warranty3-Year Warranty
Weight150 g
Dimensions81.5 mm x 104 mm x 32 mm

Product Description

Rugged PoE Splitter | 12-48V DC | IP-30 Aluminum Housing | 1.5A Power Output Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion) Straightforward Deployment Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A). The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - HIGH POWER GIGABIT PoE SPLITTER: Power non-PoE devices using network infrastructure where power isn't available - Splits PoE connection (max 90W) into RJ45 data & DC power (terminal block) - 90W POE IEEE802.3bt: Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), IEEE 802.3bt (PoE++ / Type 3); power out configured w/ DIP switch for 12/16/24/48V DC (1.5A) via terminal block

Key Features

StarTech.com Industrial Gigabit PoE Splitter - 90W High Speed Power over Ethernet PoE+++ Splitter - 12-48V DC Splitter 802.3bt - LAN/RJ45 Ultra PoE to DC Adapter - -40C to +75C. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Product colour: Black, Maximum operating distance: 100 m. Output current: 1.5 A, Total Power over Ethernet (PoE) budget: 90 W. Compliance certificates: RoHS, Certification: CE, FCC, UL. Width: 81.5 mm, Depth: 104 mm, Height: 32 mm
