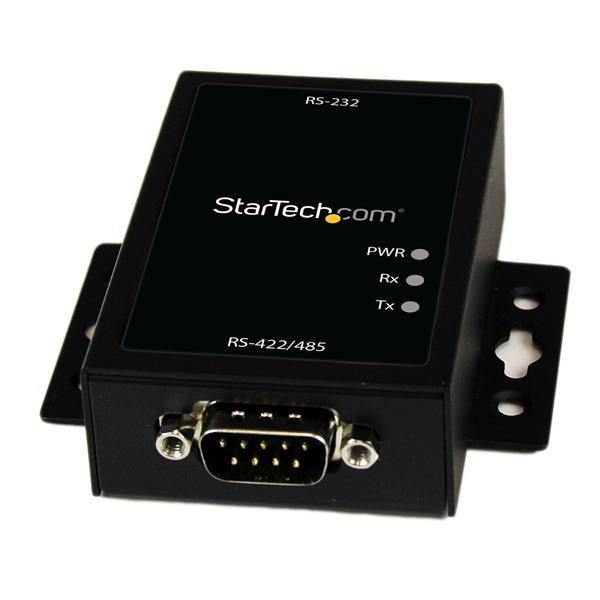

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
Brand: StarTech.com · SKU: STA-IC232485S · MPN: Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection · Category: Components
StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection, 0 - 50 °C, -20 - 60 °C, 5 - 85%, 59 mm, 117 mm, 22 mm
Specifications
| Depth | 117 mm |
|---|---|
| Width | 59 mm |
| Height | 22 mm |
| Manual | Yes |
| Weight | 143 g |
| Connector 1 | DB-9 |
| Connector 2 | DB-9 |
| Certification | CE, FCC, REACH |
| Input current | 0.3 A |
| Input voltage | 110 - 240 V |
| Package depth | 146 mm |
| Package width | 208 mm |
| Host interface | RS-232 |
| Package height | 41 mm |
| Package weight | 351 g |
| Product colour | Black |
| Connector gender | Male/Female |
| Housing material | Steel |
| Output interface | RS-232 |
| Maximum cable length | 1200 m |
| Compliance certificates | RoHS |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Warranty | 3-Year Warranty |
| Weight | 143 g |
| Dimensions | 59 mm x 117 mm x 22 mm |
Product Description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps. Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m). Backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage - Protect sensitive industrial equipment with integrated ESD protection - Communicate efficiently with connected devices through high-speed 921Kbps support - Suitable for industrial environments with a rugged, wall-mountable enclosure
Key Features
StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection. Width: 59 mm, Depth: 117 mm, Height: 22 mm. Input voltage: 110 - 240 V, Input current: 0.3 A. Housing material: Steel. Certification: CE, FCC, REACH
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"As a genuine StarTech.com component, the STA-IC232485S ensures 100% compatibility for Server Fleet Uniformity. It is an essential part for Field Engineers tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection (STA-IC232485S) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-IC232485S.
