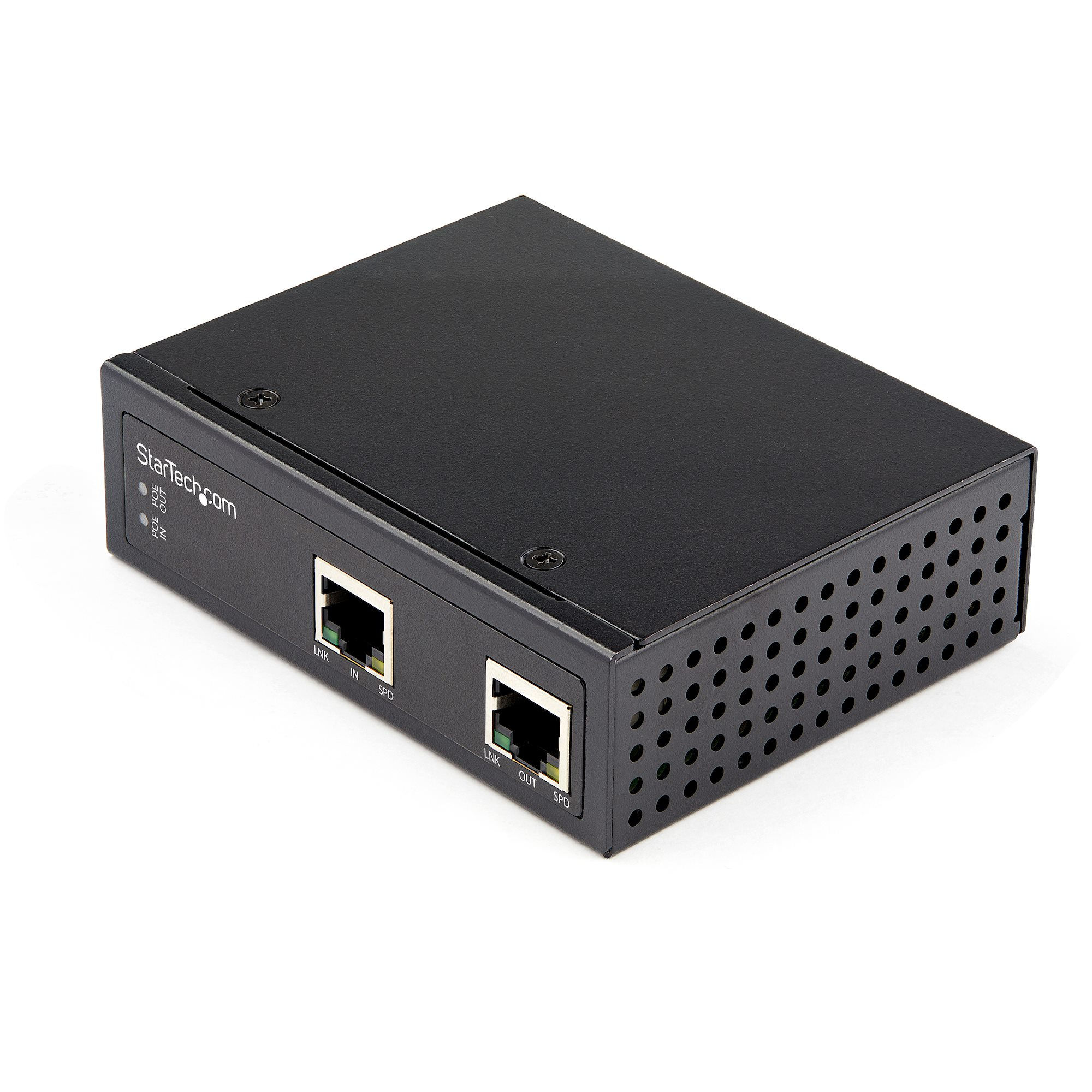

StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C
Brand: StarTech.com · SKU: STA-POEEXT1G60W · MPN: Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C · Category: Components
StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C, Network repeater, 100 m, 1000 Mbit/s, Cat5e, Cat6, Realtek RTL8367, Microsemi PD69101, 100,1000 Mbit/s
Specifications
| Type | Network repeater |
|---|---|
| Depth | 104 mm |
| Width | 81.5 mm |
| Height | 32 mm |
| Weight | 148 g |
| Chipset | Realtek RTL8367, Microsemi PD69101 |
| Certification | CE, FCC |
| Package depth | 162 mm |
| Package width | 211 mm |
| LED indicators | Yes |
| Package height | 64 mm |
| Package weight | 390 g |
| Product colour | Black |
| Auto-negotiation | Yes |
| Housing material | Aluminium |
| Quick start guide | Yes |
| Data transfer rate | 1000 Mbit/s |
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat5e, Cat6 |
| Compliance certificates | RoHS |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Master (outer) case width | 355 mm |
| Maximum transfer distance | 100 m |
| Warranty | 3-Year Warranty |
| Weight | 148 g |
| Dimensions | 81.5 mm x 104 mm x 32 mm |
Product Description
Rugged PoE Extender | 60 Watts | IP-30 Aluminum Housing | 100m (330ft) Extend the Reach of PoE Links up to 328 Feet Extends the reach of PoE links up to 328' (100 m) to power powered devices (PD) over long distances; up to 4 extenders can be cascaded to extend the range of a PoE source (PSE) device up to an additional 400m, for a total range of 500m from the original PSE source to the target device. Using Cat 5e (or higher rated) Ethernet cabling, it supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) to support PD devices like pan and tilt cameras, lighting, sensors, and wi-fi access points. Designed for Harsh Environments This PoE extender features IP-30 housing and an MTBF is 500,000+ hrs (Telcordia/Bellcore) at 50C, for long-term reliability and durability. Operating temp of -40C to 75C permits use in a wide range of indoor and outdoor applications that are not temperature controlled. Rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 PoE Extender also includes hardware for mounting to the DIN rail or wall. Flexible Power Outputs Accepts inputs up to 95W from a PSE source and can provide 15W, 30W, or 60W of power output to a target PD device. Low 2.7W power consumption provides more power for devices, especially when multiple extenders are used for a single extension. Features ESD, EFT, and surge protection at the following standards: ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV POEEXT1G60W is backed by a StarTech.com two-year warranty and free lifetime technical support. The StarTech.com Advantage - 100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6 - 60W PoE IEEE 802.3bt: Powered by the PSE source, this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD device - Low 2.7W power consumption
Key Features
StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C. Type: Network repeater, Maximum transfer distance: 100 m, Data transfer rate: 1000 Mbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Product colour: Black, Housing material: Aluminium, Certification: CE, FCC. Supported network protocols (IPv4): CSMA/CD. Power consumption (typical): 2.7 W, Total Power over Ethernet (PoE) budget: 60 W
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"Scaling a Leaf-Spine Data Center Fabrics requires hardware that ensures packet integrity; the StarTech.com STA-POEEXT1G60W is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C (STA-POEEXT1G60W) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Industrial Single Port Gigabit PoE Extender - 60W 802.3bt PoE /PoE+/ PoE++ - 100m/ 330ft - Power Over Ethernet Network Range Extender - IP-30 - -40C to +75C compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-POEEXT1G60W.
