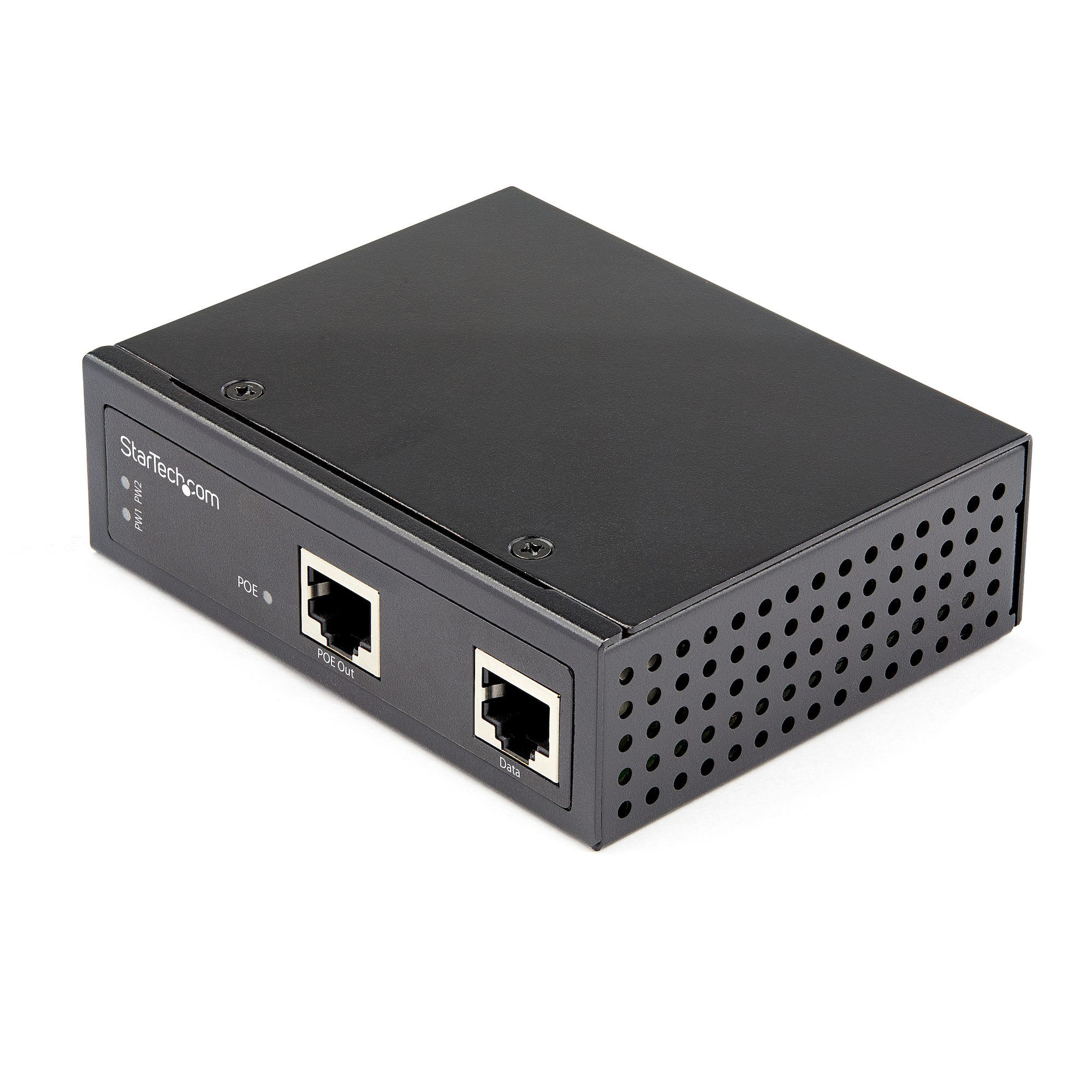

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged
Brand: StarTech.com · SKU: STA-POEINJ1G90W · MPN: Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged · Category: Components
StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged, Network repeater, 100 m, 1000 Mbit/s, Microsemi PD69204, 10,100,1000 Mbit/s, Full
Specifications
| Type | Network repeater |
|---|---|
| Depth | 82 mm |
| Width | 32 mm |
| Height | 104 mm |
| Weight | 174 g |
| Chipset | Microsemi PD69204 |
| Certification | CE, FCC, UL |
| Duplex system | Full |
| Package depth | 162 mm |
| Package width | 211 mm |
| Auto MDIX IEEE | Yes |
| LED indicators | Yes |
| Package height | 64 mm |
| Package weight | 416 g |
| Product colour | Black |
| Power plug type | Type N |
| Auto-negotiation | Yes |
| Housing material | Aluminium |
| Quick start guide | Yes |
| Data transfer rate | 1000 Mbit/s |
| Terminal block port | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Compliance certificates | CE, RoHS |
| Warranty | 3-Year Warranty |
| Weight | 174 g |
| Dimensions | 32 mm x 82 mm x 104 mm |
Product Description
Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. Flexible Configurations for a Variety of Applications Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications. 90 Watt Power Budget As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. • Vibration: EN 60068-2-6 • Shock: EN 60068-2-27 • Free-fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. The StarTech.com Advantage
Key Features
StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged. Type: Network repeater, Maximum transfer distance: 100 m, Data transfer rate: 1000 Mbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Product colour: Black, Housing material: Aluminium, Certification: CE, FCC, UL. Supported network protocols (IPv4): CSMA/CD. Total Power over Ethernet (PoE) budget: 90 W, Power plug type: Type N, Power over Ethernet (PoE) voltage range: 48 - 56 V
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"As a genuine StarTech.com component, the STA-POEINJ1G90W ensures 100% compatibility for Hardware Maintenance & Repairs. It is an essential part for Lifecycle Management Leads tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (STA-POEINJ1G90W) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-POEINJ1G90W.
