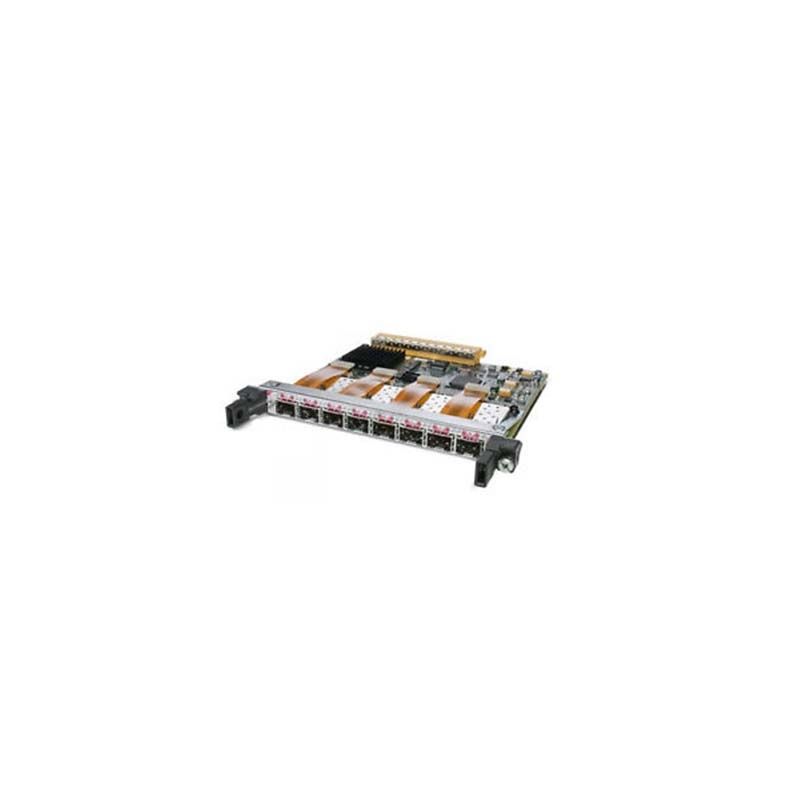

SPA-8XOC12-POS, Cisco ASR 9000 Adapter, 8x OC12/STM4 POS/Shared Port Adapter/Hot-swappable
Brand: Cisco · SKU: SPA-8XOC12-POS · MPN: SPA-8XOC12-POS · Category: Components
Cisco ASR 9000 Adapter SPA-8XOC12-POS 8-port OC12/STM4 POS Shared Port Adapters
Specifications
| Model | SPA-8XOC12-POS |
|---|---|
| Weight | 13.8 kg |
| Protocols | RFC 1662 PPP in HDLC-like framing; RFC 2615 PPP over SONET/SDH; RFC 2427 Multiprotocol Interconnect over Frame Relay; IPv4/IPv6 |
| Description | Cisco ASR 9000 Adapter, SPA-8XOC12-POS, 8-port OC-12/STM-4 POS Shared Port Adapter |
| Line Alarms | Line alarm indication signal (LAIS); line remote defect indication (LRDI); line remote error indication (LREI); error counts for B2; TCA for B2 |
| Path Alarms | Path alarm indication signal (PAIS); path remote defect indication (PRDI); path remote error indication (PREI); error counts for B3; TCA for B3 |
| Product Name | Cisco 8-Port OC-12c/STM-4 POS SPA |
| EMC Compliance | FCC Part 15 (CFR 47); ICES 003; EN 55022; CISPR 22; AS/NZS CISPR 22; VCCI Class A; EN 55024; EN 50082-1; EN 61000-6-1; EN 61000-3-2; EN 61000-3-3 |
| Section Alarms | Loss of signal (LOS); loss of frame (LOF); error counts for B1; threshold crossing alarms (TCA) for B1 |
| ETSI Compliance | EN 300 386 / EN 300 386-2 Class B; ETS 300 019 Storage Class 1.1; ETS 300 019 Transportation Class 2.3; ETS 300 019 Stationary Use Class 3.1 |
| NEBS Compliance | Designed to meet SR-3580-NEBS criteria levels (Level 3 compliant); GR-63-CORE NEBS physical protection; GR-1089-CORE NEBS EMC and safety |
| Power Consumption | 8 x OC-12 maximum without optics: 10.0 W |
| Safety Compliance | UL 60950; CSA 22.2 No. 60950; EN 60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN 60825 / IEC 60825 laser safety (SR, IR-Class 1, VSR-Class 1M); 21 CFR 1040 FDA laser safety (SR, IR-Class 1, VSR-Class 1M) |
| Network Management | RFC 2558 MIB (SONET/SDH); Simple Network Management Protocol (SNMP) |
| Payload Processing | Payload mapping; POS with 1 + X^43 self-synchronous scrambler |
| Physical Interface | OC-12c/STM-4 SFP optics module |
| Storage Environment | Storage temperature: -38 to 150 °F (-40 to 70 °C); storage humidity: 5% to 95% relative humidity |
| Port Density per SPA | 8 ports |
| SONET/SDH Compliance | Telcordia GR-253-CORE (as applicable); ANSI T1.105, T1.231; ITU-T G.707, G.957, G.825 (as applicable) |
| Operating Environment | Operating temperature: 41 to 104 °F (5 to 40 °C); operating humidity: 5% to 85% relative humidity |
| Product Compatibility | Cisco ASR 9000 Series Router |
| Multirate Mode Support | OC-3 and OC-12 |
| Path Indication Signals | Path unequipped indication signal (PUNEQ); path payload mismatch indication signal (PPLM) |
| Physical Specifications | Height: 0.8 in (2.03 cm) single height; width: 6.75 in (17.15 cm); depth: 7.28 in (18.49 cm) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-8XOC12-POS, Cisco ASR 9000 Adapter, 8x OC12/STM4 POS/Shared Port Adapter/Hot-swappable (SPA-8XOC12-POS) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-8XOC12-POS, Cisco ASR 9000 Adapter, 8x OC12/STM4 POS/Shared Port Adapter/Hot-swappable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-8XOC12-POS, Cisco ASR 9000 Adapter, 8x OC12/STM4 POS/Shared Port Adapter/Hot-swappable compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-8XOC12-POS.
