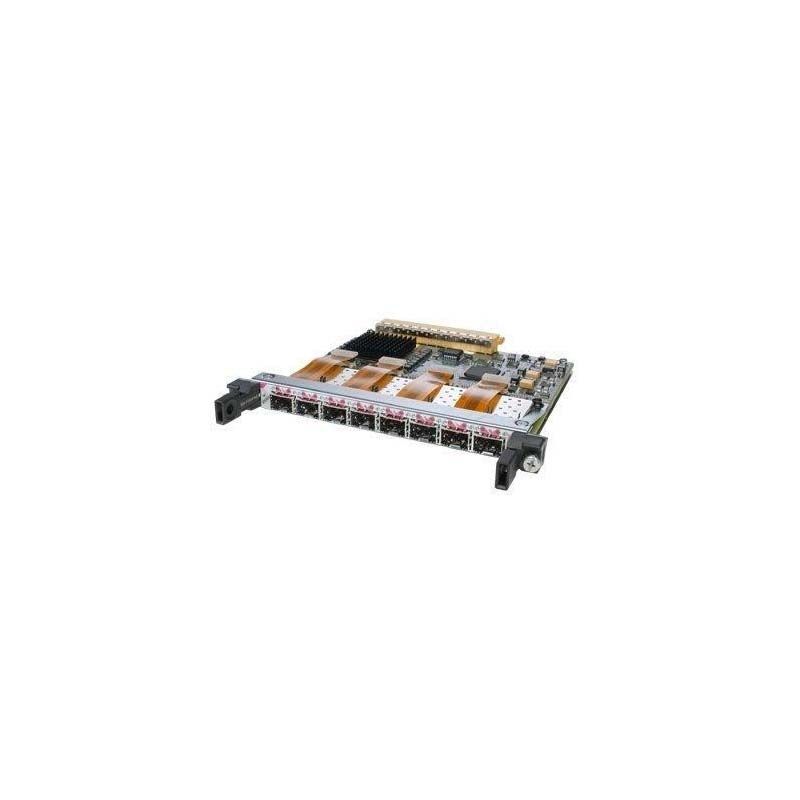

SPA-8XOC3-POS, Cisco ASR 9000 Adapter, 8-port OC-3/STM-1 POS/Shared Port Adapter/Plug-in Module
Brand: Cisco · SKU: SPA-8XOC3-POS · MPN: SPA-8XOC3-POS · Category: Components
Cisco ASR 9000 Adapter SPA-8XOC3-POS 8-port OC-3/STM-1 POS Shared Port Adapters
Specifications
| Model | SPA-8XOC3-POS |
|---|---|
| Weight | kg |
| Description | Cisco ASR 9000 Adapter SPA-8XOC3-POS 8-port OC-3/STM-1 POS Shared Port Adapter |
| Product Type | Cisco 8-Port OC-3c/STM-1 POS SPA |
| EMC Compliance | FCC Part 15 (CFR 47); ICES 003; EN55022; CISPR 22; AS/NZS CISPR22; VCCI; EN55024; EN50082-1; EN61000-6-1; EN61000-3-2; EN61000-3-3 |
| ETSI Compliance | EN300 386/EN300 386-2 Class B; ETS 300 019 Storage Class 1.1; ETS 300 019 Transportation Class 2.3; ETS 300 019 Stationary Use Class 3.1 |
| NEBS Compliance | Designed to meet: SR-3580-NEBS criteria levels (Level 3 compliant); GR-63-Core NEBS physical protection; GR-1089-Core NEBS EMC and safety |
| Payload Mapping | POS with 1 + X^43 self-synchronous scrambler |
| Synchronization | Local (internal) timing; Loop-timed (recovered from network); Pointer activity monitoring; Local (diagnostic) and line (network) loopback |
| Power Consumption | 8-Port OC-3c/STM-1: 8.0 W (no optics) |
| Network Management | RFC 2558 MIB (SONET/SDH); Simple Network Management Protocol (SNMP) |
| Physical Interface | OC-3c/STM-1 SFP optics module; Visual status indicators (LEDs): SPA status LED, per-port LEDs, carrier and alarm, active and loopback |
| Physical Dimensions | Height: 0.8 in (2.03 cm) single height; Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| Storage Environment | Storage temperature: -38 to 150 °F (-40 to 70 °C); Storage humidity: 5% to 95% relative humidity |
| Supported Protocols | RFC 1662 PPP in HDLC-like framing; RFC 2615 PPP over SONET/SDH; RFC 2427 Multiprotocol Interconnect over Frame Relay; IPv4; IPv6 |
| Compatible Platforms | Cisco 12000 Series Routers; Cisco XR 12000 Series Routers; Cisco ASR 1000 Series Routers; Cisco ASR 9000 Series Routers |
| Port Density per SPA | 8 ports |
| SONET/SDH Compliance | Telcordia (Bellcore) GR-253-CORE (as applicable); ANSI T1.105; ANSI T1.231; ITU-T G.707; ITU-T G.957; ITU-T G.825 (as applicable) |
| Operating Environment | Operating temperature: 41 to 104 °F (5 to 40 °C); Operating humidity: 5% to 85% relative humidity |
| Safety Certifications | UL 60950; CSA 22.2 No. 60950; EN60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN60825/IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M); 21CFR1040 FDA laser safety (SR, IR-Class 1) (VSR-Class 1M) |
| Line Alarms and Events | Line alarm indication signal (LAIS); Line remote defect indication (LRDI); Line remote error indication (LREI); Error counts for B2; Threshold crossing alarms (TCA) for B2 |
| Path Alarms and Events | Path alarm indication signal (PAIS); Path remote defect indication (PRDI); Path remote error indication (PREI); Error counts for B3; Threshold crossing alarms (TCA) for B3; Loss of pointer (LoP); Positive stuffing event (PSE); Negative stuffing event (NSE); Path unequipped indication signal (PUNEQ); Path payload mismatch indication signal (PPLM); Signal failure bit error rate (SF-ber); Signal degrade bit error rate (SD-ber); Signal label payload construction (C2); Path trace byte (J1) |
| Module Weight (nominal) | 0.75 lb (0.34 kg) |
| Section Alarms and Events | Loss of signal (LoS); Loss of frame (LoF); Error counts for B1; Threshold crossing alarms (TCA) for B1 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
