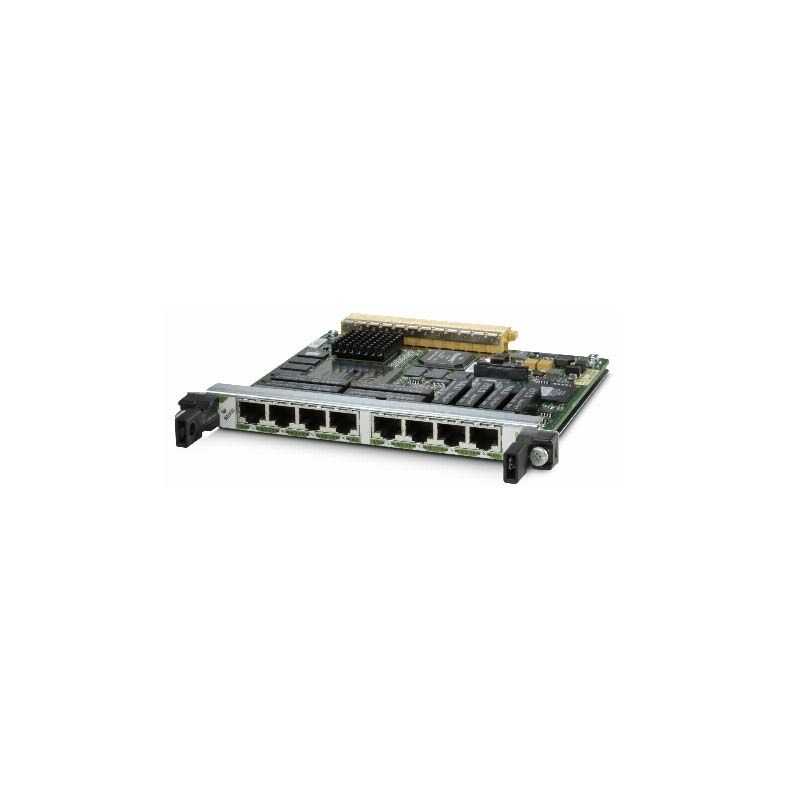

SPA-8XCHT1/E1, Cisco ASR 9000 Adapter, 8-port T1/E1/DS0
Brand: Cisco · SKU: SPA-8XCHT1/E1 · MPN: SPA-8XCHT1/E1 · Category: Components
Cisco ASR 9000 Adapter SPA-8XCHT1/E1 8-port Channelized T1/E1 to DS0 Shared Port Adapter
Specifications
| MIBs | RFC 1406 MIB |
|---|---|
| Model | SPA-8XCHT1/E1 |
| Weight | 3.8 kg |
| CSU/DSU | Integrated CSUs/DSUs |
| Clocking | Internal or network clocking selectable on each port |
| Compliance | CE Marking |
| E1 Framing | Unframed E1, CRC4, or non-CRC4 framing |
| T1 Framing | D4 Super Frame (SF) or Extended Super Frame (ESF) |
| CRC Support | 16-bit and 32-bit cyclic redundancy check (CRC); 16-bit default |
| Description | Cisco ASR 9000 Adapter, SPA-8XCHT1/E1, 8-port Channelized T1/E1 to DS0 Shared Port Adapter |
| Duplex Mode | Full-duplex connectivity |
| Performance | Line-rate performance for all ports channelized to DS-0 |
| T1/E1 Modes | Channelized and fractional T1/E1; clear channel E1 supported |
| E1 Data Rate | Up to 2.048 Mbps (unframed mode) or 1.984 Mbps (framed mode) per port |
| E1 Impedance | 120 ohms (RJ-45 to BNC adapter cable offers 75-ohm configuration option) |
| Product Type | Cisco 8-Port Channelized T1/E1 Shared Port Adapter |
| T1 Data Rate | Up to 1.536 Mbps per port |
| T1 Impedance | 100 ohms |
| BERT Patterns | Programmable pseudorandom pattern up to 32 bits long, including all 0s, all 1s, 2^11, 2^15, 2^20, 2^20 Quasi-Random Signal Sequence (QRSS), 2^23, alternating 0s and 1s, 1-in-8, and 3-in-24 |
| EMC Standards | CFR47; Part 15; ICES 003; EN55022; CISPR 22; AS/NZ 3548; VCCI; EN55024; EN50082-1; EN61000-6-1 |
| BERT Functions | Bit-error-rate-testing (BERT) pattern generation and detection per channel (maximum of 6 T1/E1 at a time) |
| T1 Cable Length | Selectable in increments from 0 to 655 ft |
| E1 Line Encoding | High-density bipolar with three zeroes (HDB3) |
| Safety Standards | UL 60950; CSA 22.2 No.60950; IEC 60950; EN 60950; AS/NZS 3260; TS001 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-8XCHT1/E1, Cisco ASR 9000 Adapter, 8-port T1/E1/DS0 (SPA-8XCHT1/E1) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-8XCHT1/E1, Cisco ASR 9000 Adapter, 8-port T1/E1/DS0 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-8XCHT1/E1, Cisco ASR 9000 Adapter, 8-port T1/E1/DS0 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-8XCHT1/E1.
