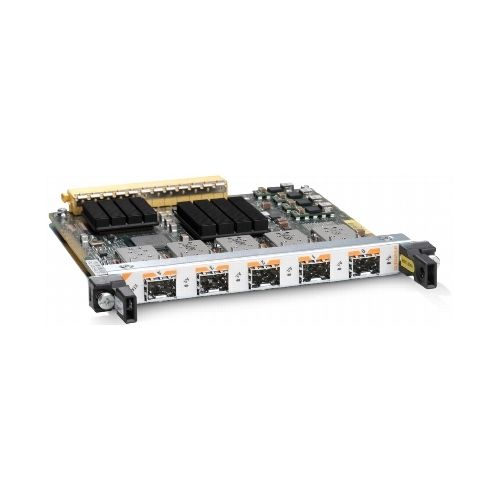

SPA-5X1GE-V2, Cisco 7600 Series Shared Port Adapter, 5xGE ports/Hot-swappable/High throughput
Brand: Cisco · SKU: SPA-5X1GE-V2 · MPN: SPA-5X1GE-V2 · Category: Components
Request for Quote
In Stock • 10 units
Cisco 7600 5-Port Gigabit Ethernet Shared Port Adapter
Specifications
| Model | SPA-5X1GE-V2 |
|---|---|
| Weight | kg |
| Other MIBs | Remote Monitoring (RMON)-MIB (RFC 1757); Cisco-class-based-QoS-MIB; MPLS-related MIBs; Ethernet MIB/RMON |
| EMC immunity | IEC/EN 61000-4-2 ESD immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 radiated immunity (10 V/m); IEC/EN 61000-4-4 EFT immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 surge AC port (4 kV CM, 2 kV DM); IEC/EN 61000-4-5 surge signal port (1 kV indoor, 2 kV outdoor); IEC/EN 61000-4-5 surge DC port (1 kV); IEC/EN 61000-4-6 immunity to conducted disturbances (10 Vrms); IEC/EN 61000-4-8 power frequency magnetic field immunity (30 A/m); IEC/EN 61000-4-11 voltage dips, short interruptions, and voltage variations |
| EMC standards | CFR 47; FCC Part 15 Class A; ICES-003 Class A; CISPR 22 Class A; EN 55022 Class A; EN 300386 Class A; AS/NZS Class A; VCCI Class B; EN 50082-1; EN 55024 |
| LED indicators | SPA status: bicolor green and amber LEDs (off: SPA powered off; amber: SPA powered on and initializing; green: SPA powered on and operational). Per-port bicolor LED (off: port not enabled by software; amber: port enabled but Ethernet link problem; green: port enabled with valid Ethernet link) |
| Telecom standard | IEEE 802.3z |
| Power consumption | 5-port Gigabit Ethernet SPA: 18.1 W |
| Safety compliance | UL 60950-1; CSA C22 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950; EN 60825-1; EN 60825-2; 21 CFR 1040 |
| Network management | Host-system CLI; Simple Network Management Protocol (SNMP) |
| Physical dimensions | Height: 0.8 in (2.03 cm), single height; Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| Physical interfaces | Short wavelength (SX); Long reach/long haul (LX/LH); Extended distance (ZX) SFP; SFP-GE-T (5-, 8-, and 10-port Gigabit Ethernet SPAs); Built-in RJ-45 (2-port Gigabit Ethernet SPA) |
| Port density per SPA | 2*, 5, 8, or 10 Gigabit Ethernet ports (*usable in combination of SFP and RJ-45 ports for a total of 2 Gigabit Ethernet ports) |
| Fault management MIBs | Cisco-entity-FRU-control-MIB; Cisco-entity-alarm-MIB; Cisco-entity-sensor-MIB |
| Product compatibility | Cisco Catalyst 6500 Series Switches (2 and 10-port GE SPAs); Cisco 7600 Series Router (2-, 5-, and 10-port GE SPAs); Cisco 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco XR 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco ASR 1000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco CRS Carrier Routing System (5-, 8-, and 10-port GE SPAs); Cisco 10000 Series Router (2 and 5-port GE SPAs) |
| Industry standards (NEBS) | SR-3580 Network Equipment Building Standards (NEBS), criteria levels, Level 3 compliant; GR-63-CORE-NEBS physical protection; GR-1089-CORE-NEBS EMC and safety |
| Physical weight (reference) | 0.75 lb (0.34 kg) |
| Reliability and availability | Online insertion and removal (OIR) of the SPA within the SIP and the optics within the SPA; Field-replaceable SFP optical modules |
| Physical interface management MIBs | IF-MIB; Etherlike-MIB (RFC 2665) |
| Inventory and asset management MIBs | Entity-MIB (RFC 2737); Cisco-entity-asset-MIB |
| Features and functions (control and OAM) | Support for CLI-controlled online insertion and removal (OIR); IEEE 802.3x flow control; BPDU, Cisco Discovery Protocol, and VTP filtering; Layer 2 protocol tunneling for BPDU, Cisco Discovery Protocol, and VTP |
| Features and functions (Layer 2 and VLAN) | Autonegotiation; Full-duplex operation; IEEE 802.1Q VLAN termination; IEEE 802.1ad QinQ termination (stacked VLAN processing); Jumbo Frames support (up to 9188 bytes); Layer 2 access list (MAC address-based filtering); Up to 8000 VLANs per SPA and up to 4000 VLANs per port for IEEE 802.1Q |
| Environmental specifications (temperature) | Storage temperature: -38 to 150°F (-40 to 70°C); Operating temperature, nominal: 32 to 104°F (0 to 40°C); Operating temperature, short term: 32 to 131°F (0 to 55°C) |
| Features and functions (MAC and traffic accounting) | Up to 5000 MAC accounting entries per SPA (source MAC accounting on ingress and destination MAC accounting on egress); Up to 2000 MAC address entries for destination MAC address filtering per SPA; Up to 1000 MAC address filtering entries per port; Per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast, multicast, and broadcast packets; Per-VLAN byte and packet counters for policy drops, oversubscription drops, and unicast, multicast, and broadcast packets; Per-port byte counters for good bytes and dropped bytes |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-5X1GE-V2, Cisco 7600 Series Shared Port Adapter, 5xGE ports/Hot-swappable/High throughput (SPA-5X1GE-V2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-5X1GE-V2, Cisco 7600 Series Shared Port Adapter, 5xGE ports/Hot-swappable/High throughput includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-5X1GE-V2, Cisco 7600 Series Shared Port Adapter, 5xGE ports/Hot-swappable/High throughput compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-5X1GE-V2.
