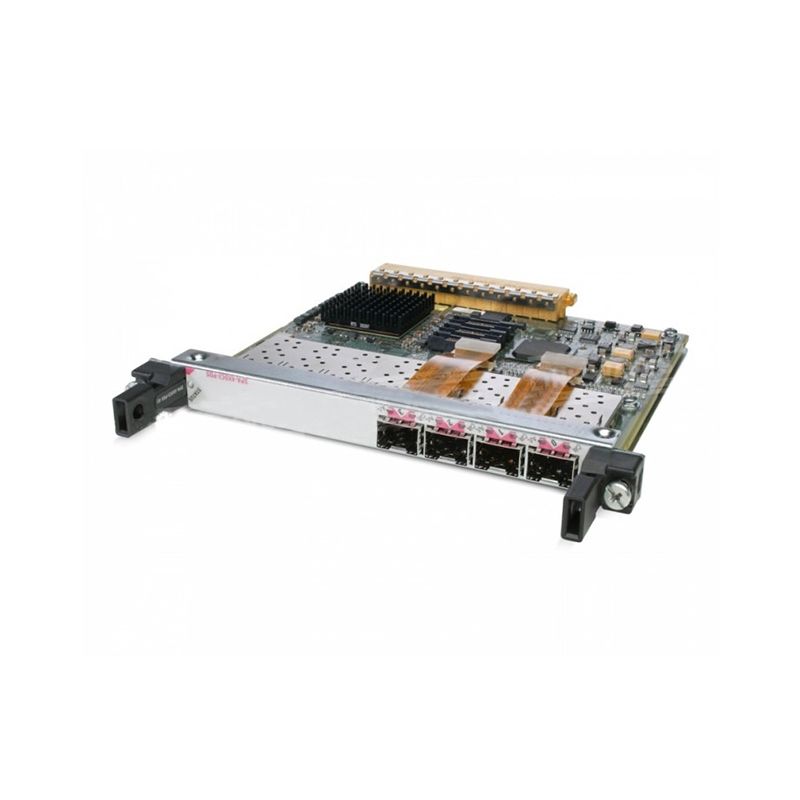

SPA-4XOC3-POS-V2, Cisco SPA-4XOC3-POS, 4-port OC-3/STM-1 POS/Shared Port Adapter
Brand: Cisco · SKU: SPA-4XOC3-POS-V2 · MPN: SPA-4XOC3-POS-V2 · Category: Components
Cisco ASR 9000 Adapter SPA-4XOC3-POS-V2 4-port OC-3/STM-1 POS Shared Port Adapters
Specifications
| Model | SPA-4XOC3-POS-V2 |
|---|---|
| Weight | 3.8 kg |
| Protocols | RFC 1662 PPP in HDLC-like framing; RFC 2615 PPP over SONET/SDH; RFC 2427 Multiprotocol Interconnect over Frame Relay; IPv4/IPv6 |
| EMC compliance | FCC Part 15 (CFR 47); ICES 003; EN55022; CISPR 22; AS/NZS CISPR22; VCCI; EN55024; EN50082-1; EN61000-6-1; EN61000-3-2; EN61000-3-3 |
| ETSI compliance | EN300 386/EN300 386-2 Class B; ETS 300 019 Storage Class 1.1; ETS 300 019 Transportation Class 2.3; ETS 300 019 Stationary Use Class 3.1 |
| NEBS compliance | Designed to meet SR-3580-NEBS criteria levels (Level 3 compliant); GR-63-Core-NEBS physical protection; GR-1089-Core-NEBS EMC and safety |
| Payload mapping | POS with 1 + X^43 self-synchronous scrambler |
| Synchronization | Local (internal) or loop timed (recovered from network); pointer activity monitoring; local (diagnostic) and line (network) loopback |
| Power consumption | 4-Port OC-3c/STM-1: 6.0 W (no optics) |
| Safety compliance | UL 60950; CSA 22.2 No.60950; EN60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN60825/IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M); 21CFR1040 FDA laser safety (SR, IR-Class 1) (VSR-Class 1M) |
| Network management | RFC 2558 MIB (SONET/SDH); Simple Network Management Protocol (SNMP) |
| Physical interface | OC-3c/STM-1 SFP optics module; visual status indicators (LEDs): SPA status LED, per-port LEDs, carrier and alarm, active and loopback |
| Physical dimensions | Height: 0.8 in (2.03 cm) single height; width: 6.75 in (17.15 cm); depth: 7.28 in (18.49 cm) |
| Port density per SPA | 4 ports |
| SONET/SDH compliance | Telcordia (Bellcore) GR-253-CORE (as applicable); ANSI T1.105, T1.231; ITU-T G.707, G.957, G.825 (as applicable) |
| Product compatibility | Cisco 12000 Series Routers; Cisco XR 12000 Series Routers; Cisco ASR 1000 Series Router; Cisco ASR 9000 Series Router |
| Reliability and availability | Online insertion and removal (OIR); field-replaceable SFP optical modules; 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols; single SPA software reset |
| Supported SONET/SDH line events | Line alarm indication signal (LAIS); line remote defect indication (LRDI); line remote error indication (LREI); error counts for B2; TCA for B2 |
| Supported SONET/SDH path events | Path alarm indication signal (PAIS); path remote defect indication (PRDI); path remote error indication (PREI); error counts for B3; TCA for B3; loss of pointer (LoP); positive stuffing event (PSE); negative stuffing event (NSE); path unequipped indication signal (PUNEQ); path payload mismatch indication signal (PPLM); signal failure bit error rate (SF-ber); signal degrade bit error rate (SD-ber); signal label payload construction (C2); path trace byte (J1) |
| Environmental storage conditions | Storage temperature: -38 to 150 °F (-40 to 70 °C); storage humidity: 5 to 95% relative humidity |
| Environmental operating conditions | Operating temperature: 41 to 104 °F (5 to 40 °C); operating humidity: 5 to 85% relative humidity |
| Supported SONET/SDH section events | Loss of signal (LoS); loss of frame (LoF); error counts for B1; threshold crossing alarms (TCA) for B1 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-4XOC3-POS-V2, Cisco SPA-4XOC3-POS, 4-port OC-3/STM-1 POS/Shared Port Adapter (SPA-4XOC3-POS-V2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-4XOC3-POS-V2, Cisco SPA-4XOC3-POS, 4-port OC-3/STM-1 POS/Shared Port Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-4XOC3-POS-V2, Cisco SPA-4XOC3-POS, 4-port OC-3/STM-1 POS/Shared Port Adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-4XOC3-POS-V2.
