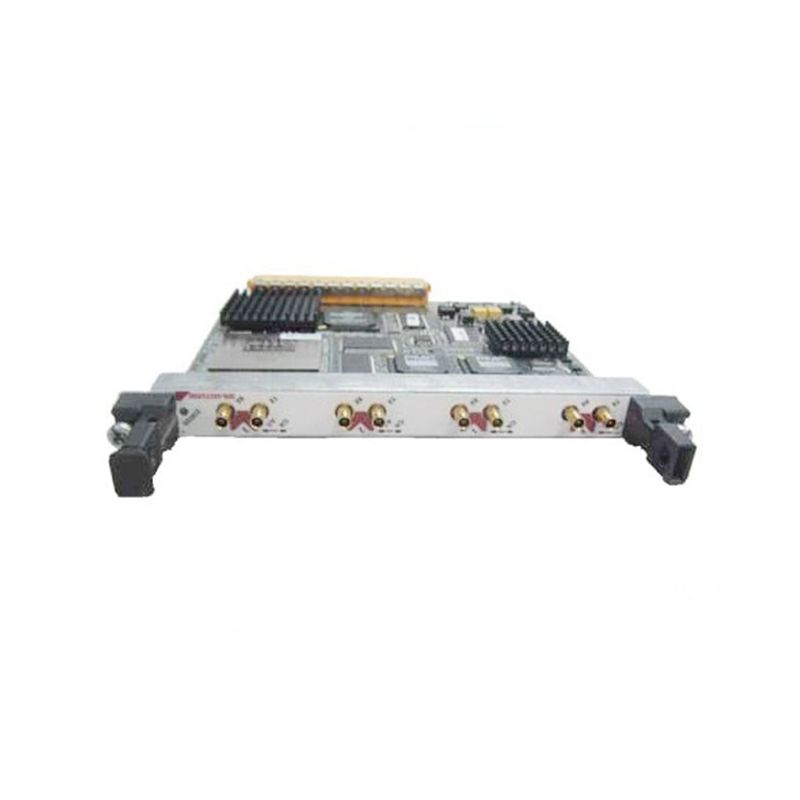

SPA-4XCT3/DS0, Cisco ASR 9000 Adapter, 4-port Channelized T3/DS0, Shared Port Adapter, High-density
Brand: Cisco · SKU: SPA-4XCT3/DS0 · MPN: SPA-4XCT3/DS0 · Category: Components
$23,610.88
In Stock • 10 units
Cisco ASR 9000 Adapter SPA-4XCT3/DS0 4-port Channelized T3 to DS0 Shared Port Adapter
Specifications
| MIBs | RFC 2495 MIB (DS-1/E1 MIB); RFC 2496 MIB (DS-3 MIB). |
|---|---|
| Model | SPA-4XCT3/DS0 |
| Power | 2-port: 11.3 W maximum; 4-port: 13.2 W maximum. |
| Weight | kg |
| Protocols | Serial encapsulations: HDLC; PPP (RFC 1662); Frame Relay (RFC 1490). Multilink support (bundle limit dependent on number of links per bundle; maximum 12 T1 links per bundle). MLPPP (RFC 1990); MLFR (FRF.16); LFI over Frame Relay (FRF.12) and MLPPP. |
| BERT patterns | T3: all 0s, all 1s, 2^15, 2^20, 2^20 QRSS, 2^23, alternating 0s and 1s, 1-in-8, 3-in-24. T1: all 0s, all 1s, 2^11, 2^15, 2^20, 2^20 QRSS, 2^23, alternating 0s and 1s, 1-in-8, 3-in-24. 32-bit error-count and bit-count registers; fully independent transmit and receive sections; detection of test patterns with bit error rates up to 10^-2; 24-hour history for error statistics and failure counts at 15-minute intervals; 16- and 32-bit CRC (16-bit default). |
| Network management | Simple Network Management Protocol (SNMP) |
| Physical interface | 1.0 and 2.3 RF connectors (75-ohm impedance); 1.0 and 2.3 RF-to-BNC adapter cable option |
| T1 alarm monitoring | Alarm indication signal (AIS); out of frame (OOF); far-end alarm failure (yellow or distant alarm). |
| T1 performance data | CRC and bit errors; framing bit errors (FERR); line errored seconds; far-end errored seconds; far-end severely errored seconds; far-end unavailable seconds. |
| T3 alarm monitoring | AIS; OOF; loss of signal (LOS); far-end receive failure (FERF). |
| T3 performance data | Line coding violation (LCV); framing bit errors (FERR) (F- or M-bit errors); P-bit error counts (path-parity errors); C-bit error counts; far-end block error (FEBE) counts. |
| Port density per SPA | 4-port |
| T1-specific features | Full-duplex connectivity at T1 rate (1.536 MHz); D4 Super Frame (SF) or Extended Super Frame (ESF) framing; ANSI T1.403 and AT&T TR 54016 Facility Data Link (FDL) support. |
| T3-specific features | Full-duplex connectivity at T3 rate (44.736 MHz); C-Bit or M23 framing; subrate and scrambling support of Quick Eagle Networks (formerly Digital Link), Larscom, ADC Kentrox, Adtran, and Verilink DSUs; B3ZS line coding; Maintenance Data Link (MDL); T3 far-end alarm and control (FEAC) channel support; line build-out up to 450 ft (135 m). |
| Product compatibility | Cisco 7600 Series Routers; Cisco ASR 1000 Series Aggregation Services Routers; Cisco ASR 9000 Series Routers (4-port only) |
| Telecom approvals (T1) | ANSI T1.403; AT&T 54016. |
| Telecom approvals (T3) | ANSI T1.107; T1.404; AT&T 54014; ANSI T1.231. |
| Physical specifications | Height: 0.8 in (2.03 cm) (single height); width: 6.75 in (17.15 cm); depth: 7.28 in (18.49 cm). |
| Minimum software version | Cisco 7600 Series Routers with Cisco IOS Software Release 15.4(2)S and Cisco IOS XE Software Release 3.12.0.0S; Cisco ASR 1000 Series Router with Cisco IOS XE Software Release 3.12.0, 3.11.2, or 3.10.3; Cisco ASR 9000 Series Router with Cisco IOS XR Software Release 5.2.0 |
| Features and functions (1) | Up to 4 T3 ports; up to 112 T1 ports (28 T1 multiplexed onto a single T3); up to 1024 n x DS-0 channels (n = 1 to 24) with no T3 configured; up to 400 n x DS-0 channels (n = 1 to 24) with one or more T3 configured; support for full-rate (clear channel) T3, channelized T3 to T1, full-rate T1, channelized T1, and fractional T1; integrated DSUs; internal or line-derived (loop) clocking selectable on each T3 or T1. |
| Features and functions (2) | Loopback capabilities: local and remote loopback at the T3 and T1 levels; response to embedded loopback commands; insertion of loopback commands into transmitted signal. Bit-error-rate-testing (BERT) pattern generation and detection per channel with programmable pseudorandom pattern up to 32 bits long. |
| Environmental specifications | Operating temperature: 41 to 104 °F (5 to 40 °C); storage temperature: -38 to 150 °F (-40 to 70 °C); operating humidity: 5 to 85% relative humidity; storage humidity: 5 to 95% relative humidity. |
| Reliability and availability | Online insertion and removal (OIR); single SPA software reset. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-4XCT3/DS0, Cisco ASR 9000 Adapter, 4-port Channelized T3/DS0, Shared Port Adapter, High-density (SPA-4XCT3/DS0) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-4XCT3/DS0, Cisco ASR 9000 Adapter, 4-port Channelized T3/DS0, Shared Port Adapter, High-density includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-4XCT3/DS0, Cisco ASR 9000 Adapter, 4-port Channelized T3/DS0, Shared Port Adapter, High-density compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-4XCT3/DS0.
