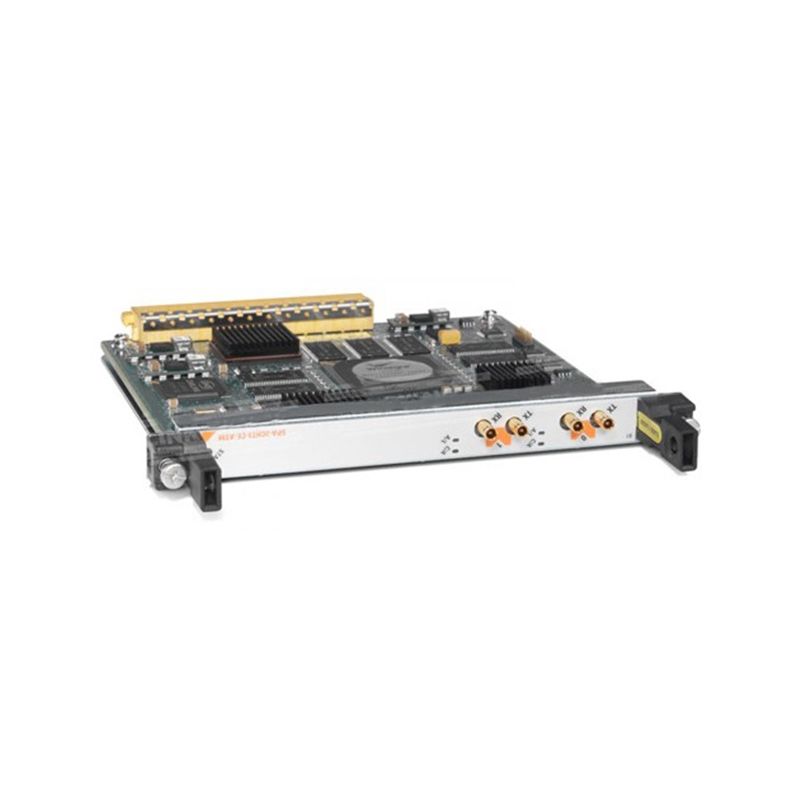

SPA-2XT3/E3, Cisco ASR 9000 Adapter, 2-port Clear Channel T3/E3/Shared Port Adapter
Brand: Cisco · SKU: SPA-2XT3/E3 · MPN: SPA-2XT3/E3 · Category: Components
$3,197.00
In Stock • 10 units
Cisco ASR 9000 Adapter SPA-2XT3/E3 2-port Clear Channel T3/E3 Shared Port Adapter
Specifications
| MIBs | RFC 2496 MIB (T3 MIB); T1.231 MIB |
|---|---|
| Model | SPA-2XT3/E3 |
| Power | 2-port: 7.7 W maximum; 4-port: 8.4 W maximum |
| Weight | kg |
| Protocols | Serial encapsulations: HDLC; PPP (RFC 1662); Frame Relay (RFC 1490) |
| Network management | Simple Network Management Protocol (SNMP) |
| Physical interface | 1.0/2.3 RF connector (75-ohm impedance); 1.0/2.3 RF to BNC adapter cable option |
| Port density per SPA | 2- and 4-port options |
| Product compatibility | Cisco 7304 Router; Cisco 7600 Series Routers; Cisco 12000 Series Routers; Cisco ASR 9000 Series Router; Cisco XR 12000 Series Routers |
| Physical specifications | Weight: 0.75 lb (0.34 kg); Height: 0.8 in (2.03 cm) (single height); Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| E3-specific features (1) | G.751, or G.832 and unframed G.703 framing; High-density bipolar with three zeroes (HDB3) line coding; Compliant with E3 pulse mask; Software-configurable E3 national service bits |
| E3-specific features (2) | Alarm monitoring: Alarm indication signal (AIS); Loss of signal (LOS); Out of frame (OOF); Far-end receive failure (FERF). Performance data collection: Line coding violation (LCV); Framing-pattern errors; Far-end block error (FEBE) counts |
| T3-specific features (1) | C-bit or M23 framing; Binary 3-zero substitution (B3ZS) line coding; T3 far-end alarm and control (FEAC) channel support; Compliant with T3 pulse mask per ANSI T1.102-1993; Maintenance data link (MDL); Line build-out up to 450 ft (135 m) |
| T3-specific features (2) | Alarm monitoring: Alarm indication signal (AIS); Loss of signal (LOS); Out of frame (OOF); Far-end receive failure (FERF). Performance data collection: Line coding violation (LCV); Framing bit errors (F- or M-bit errors); P-bit error counts; C-bit error counts; Far-end block error (FEBE) counts |
| Features and functions (1) | Up to 4 independent T3 or E3 ports configurable as either all T3 or all E3 only; Full-duplex connectivity at T3 rate (44.736 MHz) or E3 rate (34.368 MHz); Subrate and scrambling support of Quick Eagle Networks (formerly Digital Link), Larscom, ADC Kentrox, Adtran, and Verilink DSUs; Internal or network clock selectable per channel |
| Features and functions (2) | Line and payload loopback capabilities: local and remote loopback at the T3 level; response to embedded loopback commands; insertion of loopback commands into transmitted signal |
| Features and functions (3) | Bit-error-rate-testing (BERT) pattern generation and detection per channel: selectable pseudorandom pattern up to 32 bits long, including all 0’s, all 1’s, 2^15, 2^20, 2^20 QuasiRandom Signal Sequence (QRSS), 2^23, alternating 0’s and 1’s; 32-bit error-count and bit-count registers; fully independent transmit and receive sections; detection of test patterns with bit error rates up to 10^-2 |
| Features and functions (4) | 24-hour history maintained for error statistics and failure counts at 15-minute intervals; 16- and 32-bit cyclic redundancy check (CRC), 16-bit default |
| Environmental specifications | Operating temperature: 41 to 104 °F (5 to 40 °C); Storage temperature: -38 to 150 °F (-40 to 70 °C); Operating humidity: 5 to 85% relative humidity; Storage humidity: 5 to 95% relative humidity |
| Reliability and availability | Online insertion and removal (OIR); Single SPA software reset |
| Compliance and agency approvals (1) | CE Marking. Safety: UL 60950; CSA 22.2 No.60950; IEC 60950; EN 60950; AS/NZS 3260; TS001 |
| Compliance and agency approvals (2) | EMC: CFR47 Part 15; ICES 003; EN55022; CISPR 22; AS/NZ 3548; VCCI; EN55024; EN50082-1; EN61000-6-1 |
| Compliance and agency approvals (3) | Telecom (T3): ANSI T1.107; T1.404; AT&T 54014. Telecom (E3): G.703; G.751; G.832 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
