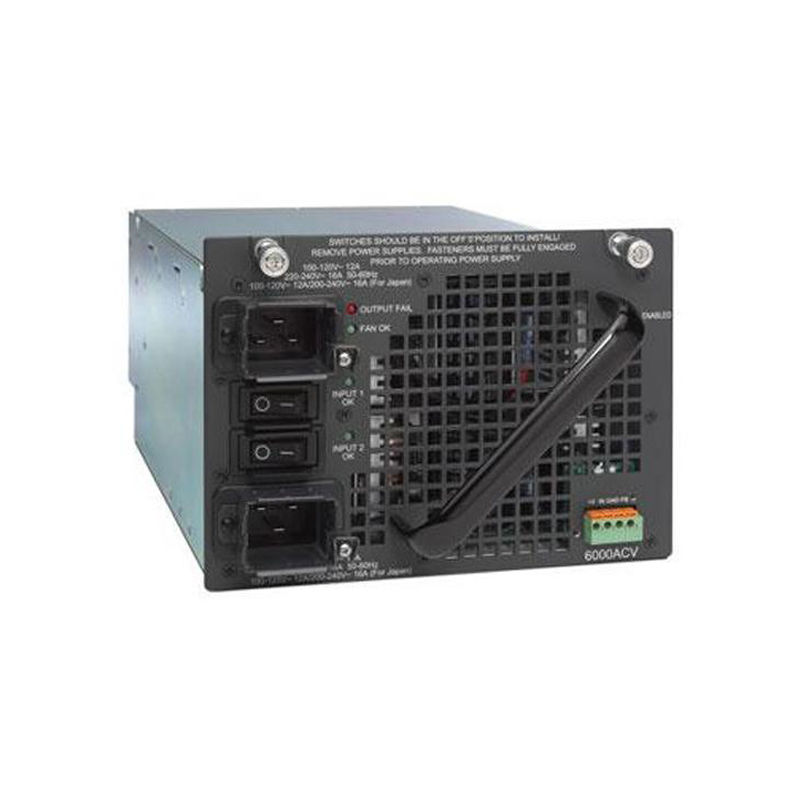

PWR-C45-6000ACV, Cisco Catalyst 4500 Power Supply, 6000W AC, Dual Input, Data+PoE
Brand: Cisco · SKU: PWR-C45-6000ACV · MPN: PWR-C45-6000ACV · Category: Components
Cisco Catalyst 4500 6000 WAC Power Supply (PoE)
Specifications
| Model | PWR-C45-6000ACV |
|---|---|
| Weight | kg |
| FAN OK LED | Green: Power supply fan is operating properly. Off: Power supply fan failure is detected. |
| kVA rating | 6.8 kVA (power factor = 0.99) |
| INPUT OK LED | Green: Source AC voltage is OK (input voltage is 85 VAC or greater). Off: Source AC voltage falls below 70 VAC, is not present, or the power supply is turned off. |
| AC-input type | Autoranging inputs with power factor correction. Power factor correction (PFC) is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current, allowing higher power factors (typically 99% or better) and lower harmonic current components. |
| OUTPUT FAIL LED | Red: Problem with one or more of the DC-output voltages of the power supply is detected. Off: DC-output voltage within acceptable margins. For proper operation of the OUTPUT FAIL LED, systems with single power supplies must be configured with a minimum of one fan tray assembly and one supervisor engine. Systems with dual power supplies must have a minimum of one fan tray assembly, one supervisor engine, and one additional module; otherwise a false power supply output fail signal may occur. |
| AC-input current | 12 A (max) @ 120 VAC (for each input); 16 A (max) @ 230 VAC (for each input) |
| AC-input voltage | Low-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max); High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max) |
| Heat dissipation | 2,720 BTU/hr (approx.) |
| LEDs and meanings | Front-panel status LEDs: INPUT OK, FAN OK, OUTPUT FAIL |
| AC-input frequency | 50/60 Hz (nominal), ±3% for full range |
| Output holdup time | 20 ms minimum |
| Power over Ethernet (PoE) | Supported, up to 4800 W |
| Minimum software requirement | Cisco IOS Release 12.2(52)SG |
| Power supply output capacity | 6000 W maximum |
| Power supply output (general) | Total output depends on the number of inputs connected and the source AC voltage. If two inputs are used, both must be of the same AC voltage. |
| 1050 W operation (one 120 VAC nominal input) | 70.8 A @ 12 VDC (data only); 12.5 A @ 3.3 VDC (data only); 18.4 A @ -50 VDC (PoE if used) |
| 3000 W operation (one 230 VAC nominal input) | 183.3 A @ 12 VDC (data only); 12.5 A @ 3.3 VDC (data only); 48 A @ -50 VDC (PoE if used) |
| 2100 W operation (two 120 VAC nominal inputs) | 141.6 A @ 12 VDC (data only); 12.5 A @ 3.3 VDC (data only); 37.0 A @ -50 VDC (PoE if used) |
| 6000 W operation (two 230 VAC nominal inputs) | 183.3 A @ 12 VDC (data only); 12.5 A @ 3.3 VDC (data only); 96 A @ -50 VDC (PoE if used) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
