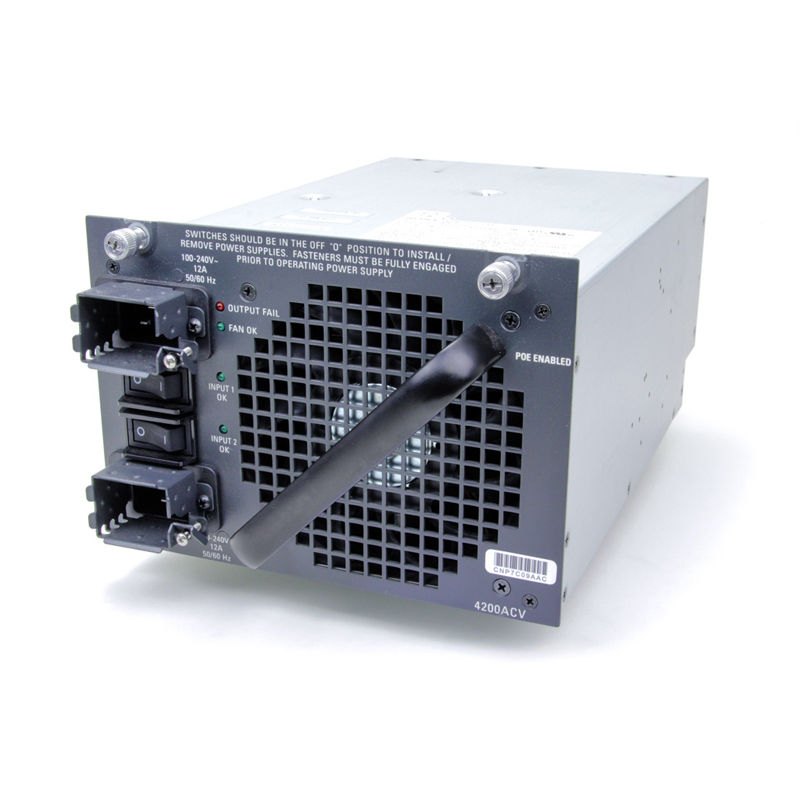

PWR-C45-4200ACV, Cisco Catalyst 4500 Power Supply, 4200W AC, Dual Input, Data + PoE

Brand: Cisco · SKU: PWR-C45-4200ACV · MPN: PWR-C45-4200ACV · Category: Components

PWR-C45-4200ACV, Cisco Catalyst 4500 Power Supply, 4200W AC, Dual Input, Data + PoE
$954.04
In Stock • 10 units

Cisco Catalyst 4500 4200 WAC Power Supply (PoE)

View Power Supplies Products

Specifications

ModelPWR-C45-4200ACV
Weightkg
AC-input typeAutoranging input with power factor corrector. Power factor correction (PFC) is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current, allowing higher power factors (typically 99% or better) and lower harmonic current components.
AC-input current12 A (maximum) at 120 VAC or 230 VAC for each input
AC-input voltageLow-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max). High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max).
AC-input frequency50/60 Hz (nominal), ±3% for full range
Maximum kVA rating5.25 kVA
Output holdup time20 ms minimum
Maximum heat dissipation3583 BTU/hr
LED indicators – FAN OKIndicates the status of the power supply fans. Green: the fans are operational. Off: the fans are not operational.
Branch circuit requirementEach chassis power supply should have its own dedicated, fused-branch circuit. For North America: 15 A or 20 A. For International: circuits sized to local and national codes. All Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated. Source AC can be out of phase between multiple power supplies in the same chassis (for example, PS1 on phase A and PS2 on phase B). For high-line operation, the power supply operates with the hot conductor wired to a source AC phase and the neutral conductor wired either to ground or to another source AC phase as long as the net input voltage is 170 to 264 VAC. Source AC can be out of phase between AC inputs on power supplies with multiple AC inputs (for example, power cord 1 on phase A and power cord 2 on phase B).
1050 W operation conditions1050 W maximum with the following combination: one AC input connected to low-line (110 VAC nominal); the second AC input is not connected to source AC or is switched off.
2100 W operation conditions2100 W maximum with the following combinations: both AC inputs connected to low-line (110 VAC nominal) and both inputs switched on; or one AC input connected to high-line (220 VAC nominal) and the second AC input not connected or switched off.
4200 W operation conditions4200 W maximum when both AC inputs are connected to high-line (220 VAC nominal) and both inputs are switched on.
LED indicators – INPUT OKIndicates whether the input voltage is within the required range. Green: input voltage is within the required range. Flashing: input voltage is present but below the required range. Off: input voltage is below the required range or the power supply is off.
Power over Ethernet supportSupported, up to 4200 W
Minimum software requirementCisco IOS Release 12.2(25)EWA
Power supply output capacityOutput capacity depends on the number of AC power cords (1 or 2), the source AC voltage (110 VAC low-line or 220 VAC high-line) applied to the power supply inputs, and the number of power supply switches that are on or off. Note: If source AC is applied to both inputs, both inputs should have the same AC voltage.
LED indicators – OUTPUT FAILRed: output voltage is not within the specified range. Off: output voltage is within the specified range.
Power supply output (1050 W operation)With one 110 VAC nominal input: 55.9 A at 12 V (data only); 12.5 A at 3.3 V (data only); 14.6 A at −50 V (PoE if used).
Power supply output (2100 W, one 220 VAC input)With one 220 VAC nominal input: 115.3 A at 12 V (data only); 12.5 A at 3.3 V (data only); 38.5 A at −50 V (PoE if used).
Power supply output (2100 W, two 110 VAC inputs)With two 110 VAC nominal inputs: 115.3 A at 12 V (data only); 12.5 A at 3.3 V (data only); 38.0 A at −50 V (PoE if used).
Power supply output (4200 W, two 220 VAC inputs)With two 220 VAC nominal inputs: 115.3 A at 12 V (data only); 12.5 A at 3.3 V (data only); 77.1 A at −50 V (PoE if used).
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this PWR-C45-4200ACV, Cisco Catalyst 4500 Power Supply, 4200W AC, Dual Input, Data + PoE (PWR-C45-4200ACV) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This PWR-C45-4200ACV, Cisco Catalyst 4500 Power Supply, 4200W AC, Dual Input, Data + PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the PWR-C45-4200ACV, Cisco Catalyst 4500 Power Supply, 4200W AC, Dual Input, Data + PoE compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-4200ACV.
