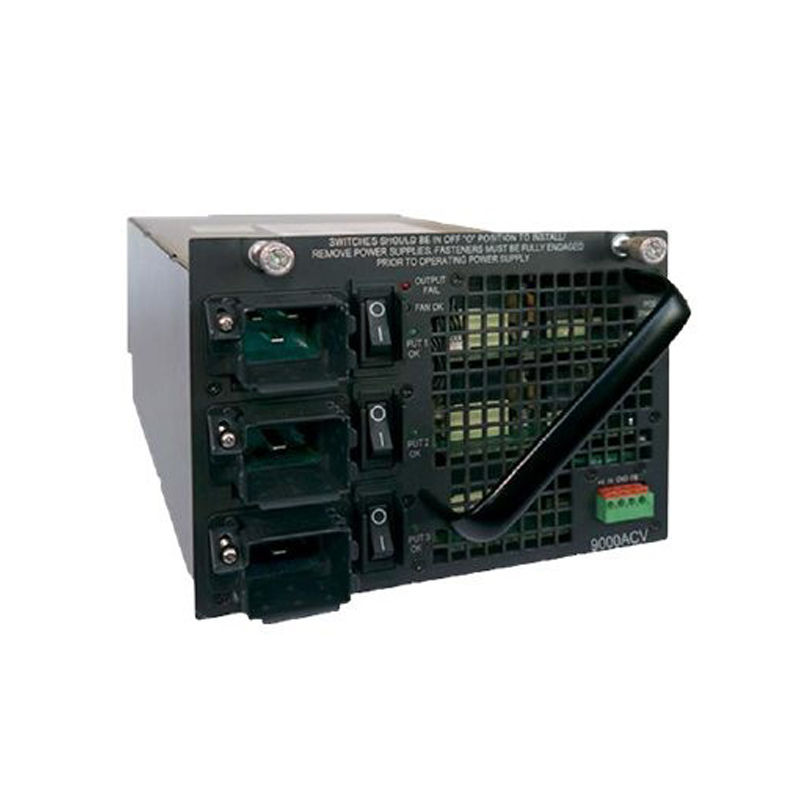

PWR-C45-9000ACV, Cisco Catalyst 4500 Power Supply, 9000W AC, Dual Input, Data+PoE
Brand: Cisco · SKU: PWR-C45-9000ACV · MPN: PWR-C45-9000ACV · Category: Components
$4,151.96
In Stock • 10 units
Cisco Catalyst 4500 Power Supply PWR-C45-9000ACV Catalyst 4500 9000W AC dual input Power Supply (Data + PoE)
Specifications
| Model | PWR-C45-9000ACV |
|---|---|
| Weight | kg |
| FAN OK LED | Green: Power supply fan is operating properly. Off: Power supply fan failure is detected. |
| kVA rating | 9680 kVA (power factor = 0.99). |
| AC-input type | Autoranging inputs with power factor correction (PFC). PFC is a standard feature on all Catalyst 4500 E-series AC-input power supplies. PFC reduces the reactive component in the source AC current allowing higher power factors (typically 99% or better) and lower harmonic current components. |
| OUTPUT FAIL LED | Red: Problem detected with one or more of the DC-output voltages of the power supply. Off: DC-output voltage within acceptable margins. For proper operation of the OUTPUT FAIL LED, systems with single power supplies must have at least one fan tray assembly and one supervisor engine. Systems with dual power supplies must have one fan tray assembly, one supervisor engine, and one additional module. If these minimum configuration requirements are not met, a false power supply output fail signal can occur. |
| 1100 W operation | One 120 VAC nominal input: 80 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 20 A @ -50 VDC (PoE if used). |
| 2200 W operation | Two 120 VAC nominal inputs: 121.7 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 40 A @ -50 VDC (PoE if used). |
| 3000 W operation | One 230 VAC nominal input: 121.7 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 50 A @ -50 VDC (PoE if used). |
| 3300 W operation | Three 120 VAC nominal inputs: 121.7 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 50 A @ -50 VDC (PoE if used). |
| 6000 W operation | Two 230 VAC nominal inputs: 166.7 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 100 A @ -50 VDC (PoE if used). |
| 9000 W operation | Three 230 VAC nominal inputs: 166.7 A @ 12 VDC (data only), 12.5 A @ 3.3 VDC (data only), 150 A @ -50 VDC (PoE if used). |
| AC-input current | 12 A (max) @ 120 VAC for each input. 16 A (max) @ 230 VAC for each input. |
| AC-input voltage | Low-line (120 VAC nominal): 85 VAC (min) to 132 VAC (max). High-line (230 VAC nominal): 170 VAC (min) to 264 VAC (max). Mixed voltage input mode operation is supported. With mixed voltage inputs, output power defaults to the triple 120 VAC output limits. |
| Heat dissipation | 3010 BTU/hr (max.). |
| AC-input frequency | 50/60 Hz (nominal), ±3% for full range. |
| DC output voltages | 12 VDC (11.8 VDC min to 12.2 VDC max). 3.3 VDC (3.2 VDC min to 3.4 VDC max). -50 VDC (-48 VDC min to -52 VDC max). |
| Output holdup time | 20 ms minimum. |
| Power over Ethernet | Supported, up to 7500 W. |
| LEDs and their meanings | Front-panel status LEDs for AC inputs, fan, and output status. |
| Minimum software requirement | Cisco IOS Release IOS-XE 3.4.0SG / 15.1(2)SG. |
| Power supply output capacity | 9000 W maximum. |
| Power supply output (general) | Total output power depends on the number of inputs connected and the available source AC voltage. If more than one input is used, all inputs must be the same AC voltage (either high-line or low-line). Mixed voltage input mode operation is supported. |
| INPUT 1 OK / INPUT 2 OK / INPUT 3 OK | Green: Source AC voltage is OK (input voltage is 85 VAC or greater). Off: Source AC voltage is below 70 VAC, source AC is not present, or the power supply is turned off. For AC input voltage between 70 VAC and 85 VAC, the INPUT OK LED condition is indeterminate (can be green, off, or flashing green). |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PWR-C45-9000ACV, Cisco Catalyst 4500 Power Supply, 9000W AC, Dual Input, Data+PoE (PWR-C45-9000ACV) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PWR-C45-9000ACV, Cisco Catalyst 4500 Power Supply, 9000W AC, Dual Input, Data+PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PWR-C45-9000ACV, Cisco Catalyst 4500 Power Supply, 9000W AC, Dual Input, Data+PoE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-9000ACV.
