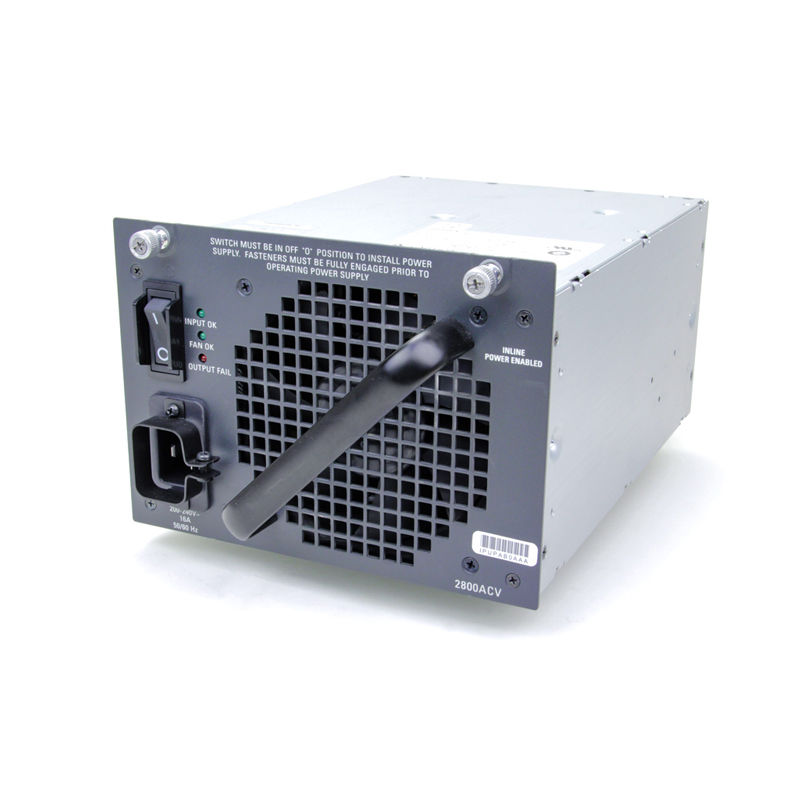

PWR-C45-2800ACV, Cisco Catalyst 4500 Power Supply, 2800W AC/Data and PoE

Brand: Cisco · SKU: PWR-C45-2800ACV · MPN: PWR-C45-2800ACV · Category: Components

PWR-C45-2800ACV, Cisco Catalyst 4500 Power Supply, 2800W AC/Data and PoE
$806.84
In Stock • 10 units

Cisco Catalyst 4500 Power Supply PWR-C45-2800ACV Catalyst 4500 2800W AC Power Supply (Data and PoE)

View Components Products

Specifications

LEDFAN OK: Indicates the status of the power supply fans.
ModelPWR-C45-2800ACV
Weightkg
AC-input typeAutoranging input with power factor corrector
AC-input current16 A maximum at 200 VAC
AC-input voltage200 to 240 VAC (±10% for full range)
FAN OK LED statusGreen: Fans are operational; Off: Fans are not operational.
AC-input frequency50/60 Hz (nominal) (±3% for full range)
Maximum kVA rating3.52 kVA
Output holdup time20 ms minimum
High-line operationHot conductor wired to a source AC phase; neutral wired to ground or another source AC phase, with net input voltage in the range of 170 to 264 VAC.
INPUT OK LED statusGreen: Input voltage is within the required range; Flashing: Input voltage is present but below required range; Off: Input voltage is below required range or the power supply is off.
Max heat dissipation2387 BTU/hr
AC source and isolationAll Catalyst 4500 E-series AC-input power supplies require single-phase source AC. All AC power supply inputs are fully isolated.
Power supply output (PoE)28 A @ –50 VDC
Branch circuit requirementEach chassis power supply should have its own dedicated, fused-branch circuit: For North America: 15 A or 20 A; For International: Circuits sized to local and national codes
Power supply output (data)113.3 A @ 12 VDC; 12.1 A @ 3.3 VDC
Power over Ethernet supportSupported, up to 1400 W (up to 240 Cisco phones in combined mode)
Minimum software requirementCisco IOS Release 12.1(13)EW
Power supply output capacity2800 W maximum total; Data: 1360 W + 40 W in redundant mode, 2473 W maximum in combined mode; PoE: 1400 W maximum each in redundant mode, 2333 W maximum in combined mode
AC phase operation (multiple PSUs)Source AC can be out of phase between multiple power supplies in the same chassis (for example, PS1 on phase A and PS2 on phase B).
AC phase operation (multiple AC inputs)Source AC can be out of phase between AC inputs on power supplies with multiple AC inputs (for example, power cord 1 on phase A and power cord 2 on phase B).
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this PWR-C45-2800ACV, Cisco Catalyst 4500 Power Supply, 2800W AC/Data and PoE (PWR-C45-2800ACV) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This PWR-C45-2800ACV, Cisco Catalyst 4500 Power Supply, 2800W AC/Data and PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the PWR-C45-2800ACV, Cisco Catalyst 4500 Power Supply, 2800W AC/Data and PoE compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C45-2800ACV.
