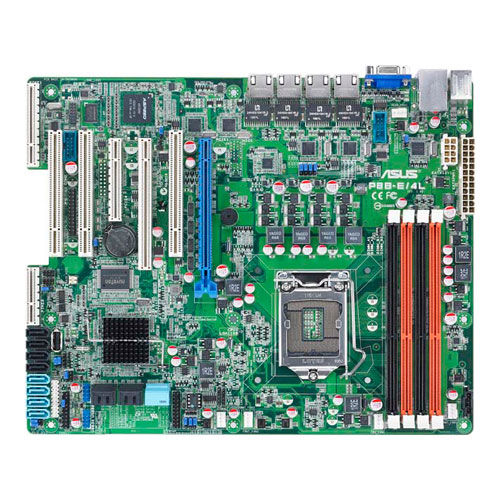

ASUS P8B-E/4L motherboard Intel® C204
Brand: ASUS · SKU: P8B-E/4L · MPN: P8B-E/4L · Category: Components
ASUS P8B-E/4L, Dual-channel, ECC, 1066,1333 MHz, 0, 1, 5, 10, Intel® 82574L, Intel® C204. ASUS P8B-E/4L motherboard Intel® C204 (part number P8B-E/4L) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type UEFI, pci slots 3, raid levels 0, 1, 5, 10, certification FCC, CE, lan controller Intel® 82574L, memory channels Dual-channel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI |
| PCI slots | 3 |
| RAID levels | 0, 1, 5, 10 |
| Certification | FCC, CE |
| LAN controller | Intel® 82574L |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® C204 |
| PS/2 ports quantity | 1 |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| On-board graphics card | Yes |
| USB 2.0 ports quantity | 2 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Operating temperature (T-T) | 10 - 35 °C |
| Supported memory clock speeds | 1066,1333 MHz |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
P8B-E/4L supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel® CoreTM i3-2100 Processor Family, and Intel® CoreTM G8x0/G6x0 Processor Family. The new platform architecture use a LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generation. P8B-E/4L is built with Intel® C204 chipset which natively supports latest Serial ATA (SATA) 6G interface. It provides up to 6.0 Gb/s bandwidth, which doubles than previous SATA 3Gb/s interface. With better protocol and electrical characteristic, user can benefit from this new interface by better I/O performance and be ready for upcoming SSD application. ASUS optional PIKE provides slim-sized and flexible storage options. SAS RAID upgrades can be achieved directly via a unique slot—without sacrificing expansion capability. Also, P8B-E/4L supports the latest SAS2 6Gb/s storage through PIKE interface, doubling transmission speed of SAS 3Gb/s. ASUS PIKE 2008 supports RAID 0, 1, 10 and 1E; PIKE 2008/IMR supports RAID 0, 1, 10, 5 and 50; PIKE 2108 is a hardware RAID solution, which can support high performance RAID 0, 1, 10, 5, 6, 50 and 60. With the fast explode of internet traffic, the P8B-E/4L equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function, not only doubles the bandwidth compared to most dual LAN servers but supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality. The optional ASMB5-iKVM provides remotely real-time and full control via accessing to the system based on BIOS-level keyboard, video monitor, and mouse (KVM over Ethernet) from any local computer anywhere, anytime. The P8B-E/4L supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers. To meet the trend of large capacity hard disk drive, P8B-E/4L equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage very large capacity hard disk drive or partition, ex: single hard disk or single partition larger than 2.2TB.
Key Features
ASUS P8B-E/4L. Memory channels: Dual-channel, ECC сompatibility: ECC, Supported memory clock speeds: 1066,1333 MHz. RAID levels: 0, 1, 5, 10. LAN controller: Intel® 82574L. Motherboard chipset: Intel® C204, Certification: FCC, CE. BIOS type: UEFI
