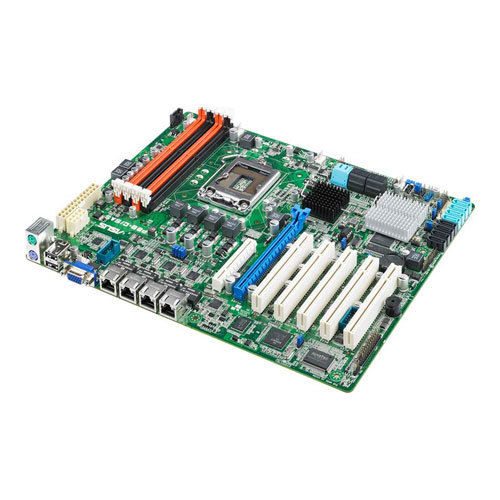

ASUS P8B-C/SAS/4L Intel® C204 LGA 1155 (Socket H2)
Brand: ASUS · SKU: 90-MSVDM5-G0UAY0YZ · MPN: 90-MSVDM5-G0UAY0YZ · Category: Components
ASUS P8B-C/SAS/4L, Intel, LGA 1155 (Socket H2), E3-1200, 2, 4, DDR3-SDRAM, 32 GB. ASUS P8B-C/SAS/4L Intel® C204 LGA 1155 (Socket H2) (part number 90-MSVDM5-G0UAY0YZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 243.8 mm, wi-fi No, width 304.8 mm, pci slots 5, user guide Yes, raid levels 0, 1, 10, ethernet lan Yes, certification FCC, CFR47 CE, EN55022 & EN55024 C-TICK. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 243.8 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 5 |
| User guide | Yes |
| RAID levels | 0, 1, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 CE, EN55022 & EN55024 C-TICK |
| Component for | Server |
| TPM connector | Yes |
| LAN controller | Intel® 82574L |
| Memory channels | Dual-channel |
| Bundled software | Support CD |
| Processor socket | LGA 1155 (Socket H2) |
| Intel Xeon series | E3-1200 |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® C204 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| Serial port headers | 2 |
| Number of DIMM slots | 4 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 243.8 mm |
Product Description
The Most Cost Effective UP Appliance Server Solution P8B-C/SAS/4L is the latest ASUS UP serverboard designed as Bromolow platform with Intel up-to-date architecture, quad Intel server class GbE and high PCI expandability. P8B-C/SAS/4L is ideal for legacy PCI appliances (Ex: surveillance, video capturing, etc. ), storage server, networking and other entry applications. Up-to-date LGA1155 Socket Platform for Outstanding Performance P8B-C/SAS/4L supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel® CoreTM i3-2100 Processor Family, and Intel® CoreTM G8x0/G6x0 Processor Family. The new platform architecture use a LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generation. Up-to-date Storage Technology P8B-C/SAS/4L is built with Intel® C204 chipset which natively supports latest Serial ATA (SATA) 6G interface, and supports 6 SAS 6G ports from LSI SAS2008. It provides up to 6.0 Gb/s bandwidth, which doubles than previous SATA 3Gb/s interface. With better protocol and electrical characteristic, user can benefit from this new interface by better I/O performance. P8B-C/SAS/4L provides the best C/P ratio for the storage server solution. Design to Support Legacy PCI Device Applications With the technology rolling to PCI express technology, still many applications require PCI applications, P8B-C/SAS/4L provides up to 5 PCI expansion slots to meet various customer requirements. Customers can move their existing legacy PCI add-on cards to P8B-C/SAS/4L, benefit from up-to-date Intel Core i CPU and DDR3 memory technology to their solutions without new PCI express cards investment. Quad Intel Server Class GbE, IPv6 Support Ready Loaded with Intel server-class GbE controller makes P8B-C/SAS/4L to be the best candidate for Ethernet appliance application. With the fast explode of internet traffic, the P8B-C/SAS/4L equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function, not only doubles the bandwidth compared to most dual LAN servers but supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality. Wide Range OS Support The P8B-C/SAS/4L supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers. UEFI BIOS support To meet the trend of large capacity hard disk drive, P8B-C/SAS/4L equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage very large capacity hard disk drive or partition, ex: single hard disk or single partition larger than 2.2TB.
Key Features
ASUS P8B-C/SAS/4L. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Intel Xeon series: E3-1200. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: Serial Attached SCSI (SAS), RAID levels: 0, 1, 10. On-board graphics card model: XGI Z9S, On-board graphics card memory: 64 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8B-C/SAS/4L Intel® C204 LGA 1155 (Socket H2) (90-MSVDM5-G0UAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8B-C/SAS/4L Intel® C204 LGA 1155 (Socket H2) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8B-C/SAS/4L Intel® C204 LGA 1155 (Socket H2) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVDM5-G0UAY0YZ.
