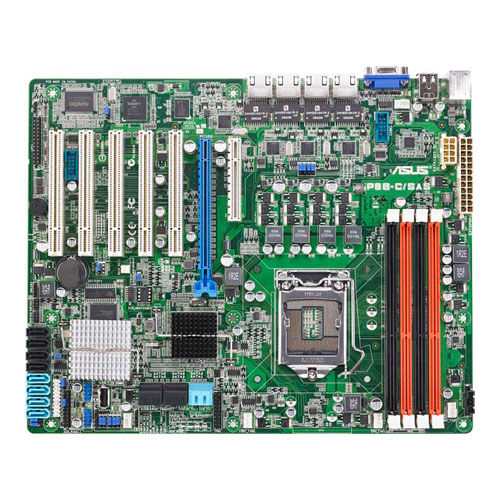

ASUS P8B-C/SAS/4L motherboard Intel® C204
Brand: ASUS · SKU: P8B-C/SAS/4L · MPN: P8B-C/SAS/4L · Category: Components
ASUS P8B-C/SAS/4L, Dual-channel, ECC, 1066,1333 MHz, 0, 1, 10, Intel® C204, -40 - 70 °C. ASUS P8B-C/SAS/4L motherboard Intel® C204 (part number P8B-C/SAS/4L) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, pci slots 5, raid levels 0, 1, 10, memory channels Dual-channel, ecc сompatibility ECC, usb 2.0 connectors 3, motherboard chipset Intel® C204. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 5 |
| RAID levels | 0, 1, 10 |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® C204 |
| PS/2 ports quantity | 1 |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| On-board graphics card | Yes |
| USB 2.0 ports quantity | 2 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Operating temperature (T-T) | 10 - 35 °C |
| Supported memory clock speeds | 1066,1333 MHz |
| Storage relative humidity (H-H) | 20 - 90% |
| Number of chassis fan connectors | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
P8B-C/SAS/4L supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel® CoreTM i3-2100 Processor Family, and Intel® CoreTM G8x0/G6x0 Processor Family. The new platform architecture use a LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generation. P8B-C/SAS/4L is built with Intel® C204 chipset which natively supports latest Serial ATA (SATA) 6G interface, and supports 6 SAS 6G ports from LSI SAS2008. It provides up to 6.0 Gb/s bandwidth, which doubles than previous SATA 3Gb/s interface. With better protocol and electrical characteristic, user can benefit from this new interface by better I/O performance. P8B-C/SAS/4L provides the best C/P ratio for the storage server solution. With the technology rolling to PCI express technology, still many applications require PCI applications, P8B-C/SAS/4L provides up to 5 PCI expansion slots to meet various customer requirements. Customers can move their existing legacy PCI add-on cards to P8B-C/SAS/4L, benefit from up-to-date Intel Core i CPU and DDR3 memory technology to their solutions without new PCI express cards investment. Loaded with Intel server-class GbE controller makes P8B-C/SAS/4L to be the best candidate for Ethernet appliance application. With the fast explode of internet traffic, the P8B-C/SAS/4L equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function, not only doubles the bandwidth compared to most dual LAN servers but supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality. The P8B-C/SAS/4L supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers. To meet the trend of large capacity hard disk drive, P8B-C/SAS/4L equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage very large capacity hard disk drive or partition, ex: single hard disk or single partition larger than 2.2TB.
Key Features
ASUS P8B-C/SAS/4L. Memory channels: Dual-channel, ECC сompatibility: ECC, Supported memory clock speeds: 1066,1333 MHz. RAID levels: 0, 1, 10. Motherboard chipset: Intel® C204. Width: 305 mm, Depth: 244 mm. Maximum UDIMM memory: 32 GB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8B-C/SAS/4L motherboard Intel® C204 (P8B-C/SAS/4L) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8B-C/SAS/4L motherboard Intel® C204 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8B-C/SAS/4L motherboard Intel® C204 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8B-C/SAS/4L.
