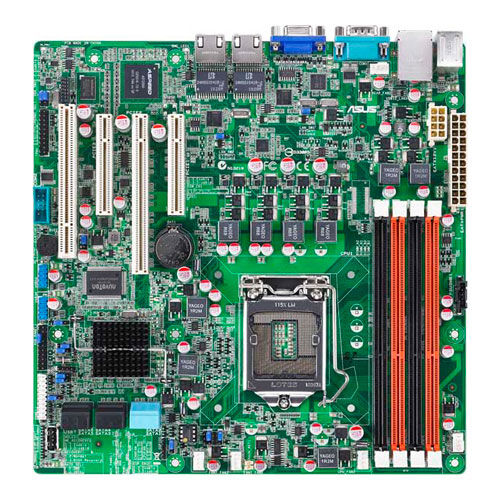

ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX

Brand: ASUS · SKU: 90-MSVDL0-G0UAY00Z · MPN: 90-MSVDL0-G0UAY00Z · Category: Components

ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX
Request for Quote
Backorder

ASUS P8B-M, Intel, LGA 1155 (Socket H2), 2, 4, DDR3-SDRAM, ECC, 1066,1333 MHz. ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX (part number 90-MSVDL0-G0UAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, wi-fi No, width 244 mm, user guide Yes, raid levels 0, 1, 5, 10, ethernet lan Yes, certification FCC, CFR47 15, B, CE, EN55022, EN55024, C, component for Server. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth244 mm
Wi-FiNo
Width244 mm
User guideYes
RAID levels0, 1, 5, 10
Ethernet LANYes
CertificationFCC, CFR47 15, B, CE, EN55022, EN55024, C
Component forServer
TPM connectorYes
Processor socketLGA 1155 (Socket H2)
ECC сompatibilityECC
USB 2.0 connectors1
Motherboard chipsetIntel® C204
PS/2 ports quantity1
Serial port headers1
Number of DIMM slots4
PCI Express x4 slots1
PCI Express x8 slots2
Serial ports quantity1
On-board graphics cardNo
Processor manufacturerIntel
Supported memory typesDDR3-SDRAM
USB 2.0 ports quantity2
Motherboard form factormicro ATX
Warranty3-Year Warranty
Dimensions244 mm x 244 mm

Product Description

Up-to-date LGA1155 Socket Platform for Outstanding Performance P8B-M supports wide-range CPUs to cover different levels of market segment including Intel® Xeon® E3-1200 processor family, Intel® CoreTM i3-2100 Processor Family, and Intel® CoreTM G8x0/G6x0 Processor Family. The new platform architecture use a LGA1155 package with memory and PCI Express controllers integrated to support dual-channel DDR3 ECC memory and 20 PCI Express 2.0 lanes. The support of ECC (Error Correcting Code) memory improves data integrity to offer higher reliability. Provision of more PCI Express 2.0 lanes benefits various server applications. Most important, the motherboard provides significant performance improvement around 25% over previous generation. Native SATA 6Gb/s Support P8B-M is built with Intel® C204 chipset which natively supports latest Serial ATA (SATA) 6G interface. It provides up to 6.0 Gb/s bandwidth, which doubles than previous SATA 3Gb/s interface. With better protocol and electrical characteristic, user can benefit from this new interface by better I/O performance and be ready for upcoming SSD application. Dual Intel Server Class GbE, IPv6 Support Ready With the fast explode of internet traffic, the P8B-M equipped Intel® GbE LAN controllers with IPv6 support and backward compatible with IPv4 protocol. With IPv6 ready support, customer can deploy new systems seamlessly work with existing Ethernet environment. With teaming function which supports Fault Tolerance technology. Also, the Load Balance handles network traffics delicately which is good at enhancing network functionality. Built in BMC engine, IPMI 2.0 + KVM-over-IP enabled by ASMB5 Module The optional ASMB5-iKVM provides remotely real-time and full control via accessing to the system based on BIOS-level keyboard, video monitor, and mouse (KVM over Ethernet) from any local computer anywhere, anytime. Wide Range OS Support The P8B-M supports wide-range mainstream server and client OS, including Windows 2008 R2, Windows 7, Cent OS, redhat, SuSE Linux and so on to meet the demand of different customers. UEFI BIOS support To meet the trend of large capacity hard disk drive, P8B-M equips UEFI BIOS. The UEFI BIOS supports the latest GPT (GUID Partition Table) partition format and backward compatible with legacy MBR (Master Boot Record) partition format, users can easily and flexibly manage very large capacity hard disk drive or partition, ex: single hard disk or single partition larger than 2.2TB. Micro ATX Compact Form Factor Increases Density As a slim size serverboard, the 9.6” * 9.6” mATX form factor of P8B-M is ideal for various small form factor appliance servers. Integrated in short depth chassis makes customer’s solution increase the density in a rack cabinet to provide higher computing power per rack than before.

Key Features

ASUS P8B-M. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Processor number of cores supported: 2, 4. Supported memory types: DDR3-SDRAM, ECC сompatibility: ECC, Supported memory clock speeds: 1066,1333 MHz. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card memory: 16 MB. Component for: Server, Motherboard form factor: micro ATX, Motherboard chipset: Intel® C204

Frequently Asked Questions

Is this product genuine OEM?

Yes, this ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX (90-MSVDL0-G0UAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the ASUS P8B-M Intel® C204 LGA 1155 (Socket H2) micro ATX compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVDL0-G0UAY00Z.
