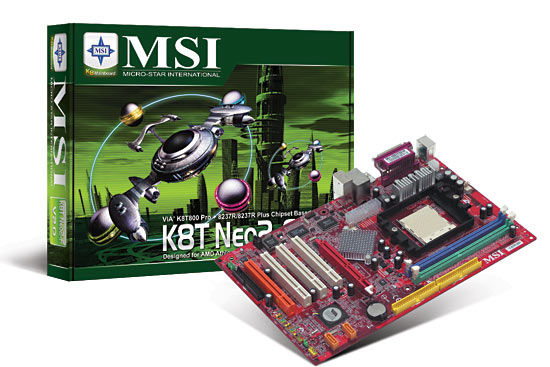

MSI K8T Neo2-F V2.0 retail Socket 939 ATX
Brand: MSI · SKU: K8T NEO2-FIR · MPN: K8T NEO2-FIR · Category: Components
MSI K8T Neo2-F V2.0 retail, AMD, Socket 939, 1000 MHz, 2 GB, 0, 1, Realtek 8110SB 10/100/1000Mb/s
Specifications
| I/O ports | 1 x Parallel 1 x Serial port (COM 1) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x 3 in 1 Audio jack 4 x USB 2.0 1 x RJ45 LAN Jack |
|---|---|
| RAID levels | 0, 1 |
| Audio output | 5.1 RealTek ALC655 |
| Expansion slots | 1x AGP 8x 4x 32-bit v2.3 Master PCI |
| Processor socket | Socket 939 |
| Power source type | ATX |
| Networking features | Realtek 8110SB 10/100/1000Mb/s |
| Processor manufacturer | AMD |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 1000 MHz |
| Warranty | 3-Year Warranty |
Product Description
Supports Socket 939 for AMD® Athlon™ 64 X2 Dual-Core / Athlon™ 64 FX / Athlon™ 64 processor Supports up to 4800+ or higher CPU VIA® K8T800 Pro Chipset - HyperTransport™ connection to AMD® Athlon™ 64 / Athlon™ 64 FX processor - 8 or 16 bit control/address/data transfer both directions - 1000/800MHz "Double Data Rate" operation both direction - AGP v3.0 compliant with 8x transfer mode VIA® VT8237R/VT8237R Plus Chipset - Supports dual channel native SATA controller up to 150MB/s with RAID 0 or RAID 1. - Supports USB2.0 up to 8 ports. - Integrated AC97 audio. - 2 channel Ultra ATA 66/100/133 bus Master IDE controller. - PCI Master v2.3, I/O APIC. - Supports both ACPI and legacy APM power management. Main Memory Supports two unbuffered DIMM of 2.5V DDR SDRAM. Supports up to 2GB memory size without ECC. Supports dual channel DDR266/333/400MHz. Slots One AGP 8x slot. - AGP 3.0 specification compliant . Four 32-bit v2.3 Master PCI bus slots. (support 3.3v/5v PCI bus interface). On-Board IDE / SATA Two IDE controller on the VIA® VT8237R/VT8237R Plus chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. - Can connect up to 4 IDE devices. Serial ATA/150 controller integrated by VT8237R/VT8237R Plus. - Up ot 150MB/s transfer rate. - Can connect up to 2 serial ATA devices. Audio AC97 link controller integrated in VIA® VT8237R/VT8237R Plus chipset 6 channels software audio codec RealTek ALC655 - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement. LAN Realtek® 8110SB - Supports 10, 100Mb/s and 1000Mb/s - Supports ACPI Power Management. Internal I/O Connectors ATX 20-Pin power connector 4-pin ATX 12V power connector CPU / System FAN connectors Chassis intrusion switch connector Serial port connector (COM2) Front panel connector Front panel audio connector 1 x floppy disk drive connector 2 x serial ATA connectors 2 x ATA 133 IDE dirve connector 2 x USB 2.0 connector support additional 4 ports CD-in connector Clear CMOS jumper Back Panel I/O Ports 1 x Parallel 1 x Serial port (COM 1) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x 3 in 1 Audio jack 4 x USB 2.0 1 x RJ45 LAN Jack
Key Features
MSI K8T Neo2-F V2.0 retail. Processor manufacturer: AMD, Processor socket: Socket 939, Processor system buses supported: 1000 MHz. Maximum internal memory: 2 GB. RAID levels: 0, 1. Networking features: Realtek 8110SB 10/100/1000Mb/s. Motherboard form factor: ATX, Power source type: ATX
