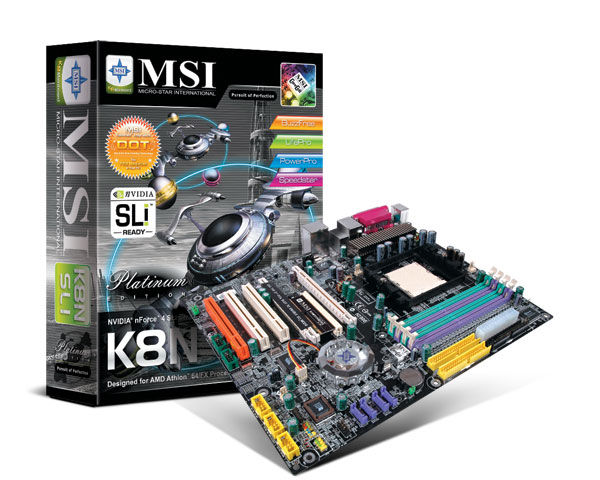

MSI K8N SLI PLATINUM Retail Socket 939 ATX
Brand: MSI · SKU: K8N SLI PLATINUM · MPN: K8N SLI PLATINUM · Category: Components
MSI K8N SLI PLATINUM Retail, AMD, Socket 939, 1000 MHz, 4 GB, 10/100/1000 Fast Ethernet, ATX
Specifications
| Audio output | 7.1 Sound Blaster Live 24-bit onboard |
|---|---|
| Expansion slots | 2x PCI Express x16 1x PCI Express x1 3x 32-bit v2.3 Master PCI bus |
| Processor socket | Socket 939 |
| Power source type | ATX |
| Networking features | 10/100/1000 Fast Ethernet |
| Processor manufacturer | AMD |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 1000 MHz |
| Warranty | 3-Year Warranty |
Product Description
CPU Supports Socket 939 for AMD® Athlon™ 64 FX / Athlon™ 64 processor Supports up to 3500+, 3800+ Athlon 64 FX 53, or higher CPU Chipset NVIDIA® nForce4 SLI Chipset HyperTransport link to the AMD Athlon 64/Athlon 64 FX CPU HyperTransport supporting speed up to 1GHz (2000MT/s) Supports 2 x PCI Express x16/x1 interface Two independent SATA controllers, for four drives Dual Fast ATA-133 IDE controllers IEEE 802.3 NVIDIA MAC for 1000BASE-T Main Memory Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs. Supports a maximum memory size up to 4GB. Supports 2.5v DDR SDRAM DIMM. Slots Two PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant) One PCI Express x1 slots(by share)(support PCI Express Bus specification v1.0a compliant) Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). On-Board IDE An IDE controller on the NVIDIA nForce4 SLI chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to 4 IDE devices On-Board SATA NV RAID supports 4 SATA II ports(SATA 1 to 4). Transfer rate is up to 300MB/s. NV RAID (Software) Supports up to 4 SATA + 2 ATA133 Hard drives RAID 0 or 1, 0+1, JBOD is supported RAID function available for ATA133 + SATA HD drives or 2 SATA HD Audio Creative sound Blaster Live 24-bit onboard audio 24-bit / 96KHz audio quality 100db SNR clarity Up to 7.1 CH Surround Sound, Dolby Digital ready LAN LAN supports 10/100/1000 Fast Ethernet by nForce4 SLI IEEE1394 VIA 6306 chipset- Supports up to three 1394 ports. (Rear panel x1, front x2) Transfer rate is up to 400Mbps On-Board Peripherals On-Board Peripherals include: 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes 1 serial port 1 parallel port supports SPP/EPP/ECP mode 1 Audio jack(5-in-1), coaxial/fiber SPDIF out 1 IrDA pinheader 1 D-Bracket2 pinheader 10 USB 2.0 ports (Rear x 4 / Front x 6) 2 RJ45 LAN jacks 3 IEEE 1394 connectors (Rear x 1/ Front x 2)
Key Features
MSI K8N SLI PLATINUM Retail. Processor manufacturer: AMD, Processor socket: Socket 939, Processor system buses supported: 1000 MHz. Maximum internal memory: 4 GB. Networking features: 10/100/1000 Fast Ethernet. Motherboard form factor: ATX, Power source type: ATX. Audio output: 7.1 Sound Blaster Live 24-bit onboard
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K8N SLI PLATINUM Retail Socket 939 ATX (K8N SLI PLATINUM) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K8N SLI PLATINUM Retail Socket 939 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K8N SLI PLATINUM Retail Socket 939 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the K8N SLI PLATINUM.
