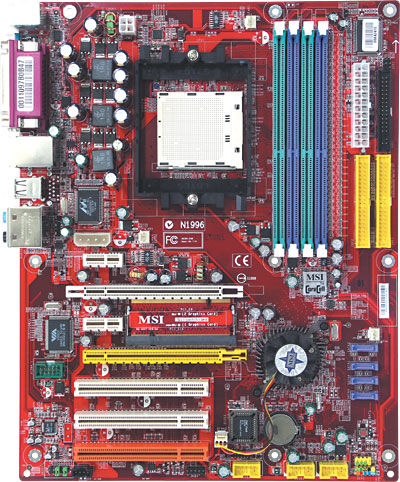

MSI K8N SLI Socket 939 ATX
Brand: MSI · SKU: K8N SLI-F · MPN: K8N SLI-F · Category: Components
MSI K8N SLI, AMD, Socket 939, 4 GB, 0+1, JBOD, 10/100/1000 Fast Ethernet, ATX
Specifications
| I/O ports | 1 x Parallel port 1 x Serial port (COM 1) 1 x PS/2 keyboard 1 x PS/2 mouse 1 x Coaxial SPDIF out 1 x IEEE1394 Port 1 x 6 in 1 audio jack (S/SPDIF out) 4 x USB 2.0 ports 1 x RJ45 LAN jack |
|---|---|
| RAID levels | 0+1, JBOD |
| Audio output | 7.1 RealTek ALC850 |
| Expansion slots | 2x PCI Express x16 2x PCI Express x1 3x 32-bit v2.3 Master PCI |
| Processor socket | Socket 939 |
| Power source type | ATX |
| Networking features | 10/100/1000 Fast Ethernet |
| Processor manufacturer | AMD |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
Product Description
Supports Socket 939 for AMD® Athlon™ 64 X2 Dual-Core / Athlon™ 64 FX / Athlon™ 64 processor Supports up to 4800+ or higher CPU NVIDIA® nForce4 SLI Chipset - HyperTransport link to the AMD Athlon 64 X2 Dual-Core/Athlon 64/Athlon 64 FX CPU - HyperTransport supporting speed up to 1GHz (2000MT/s) - Supports 2 PCI Express x16/x1 interface - Two independent SATA controllers, for four drives - Dual Fast ATA-133 IDE controllers - Supports high-speed USB2.0 ports - IEEE 802.3 NVIDIA MAC for 1000BASE-T Supports dual channel DDR 266/333/400, using four 184-pin DDR DIMMs. Supports a maximum memory size up to 4GB. Supports 2.5v DDR SDRAM DIMM. Two PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant) Normal mode Primary PCI-E slot is compatible with PCI Express x 16 Secondary PCI-E slot is compatible with PCI Express x 1 SLI mode Primary PCI-E slot is compatible with PCI Express x 8 Secondary PCI-E slot is compatible with PCI Express x 8 Two PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant) Three 32-bit v2.3 Master PCI bus slots, including one orange slot which supports 2 master for MSI special PCI function card (ex. wireless LAN and bluetooth combo card) - support 3.3v/5v PCI bus interface On-Board IDE An IDE controller on the NVIDIA nForce4 SLI chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. - Can connect up to 4 IDE devices. On-Board SATA Two independent SATA controllers on the NVIDIA® nForce4 SLI chipset. - NV RAID supports 4 SATA II ports with up to 300MB/s transfer rate. NV RAID (Software) Supports up to 4 SATA + 4 ATA133 Hard drives - RAID 0 or 1, 0+1, JBOD is supported - RAID function available for ATA133 + SATA HD drives or 4 SATA HD 7.1 channel audio codec RealTek ALC850 - Compliance with AC97 v2.3 Spec. - Meet PC2001 audio performance requirement. LAN supports 10/100/1000 Fast Ethernet by nForce4 SLI Marvell PHY 88E1111 10/100/1000 Fast Ethernet VIA 6307 chipset - Supports up to two 1394 ports. (Rear panel x1, front x1) - Transfer rate is up to 400Mbps Internal I/O Connectors - ATX 24-pin power connector - ATX 4-pin VGA power connector - 4-pin ATX 12V power connector - CPU / System x 2 / NB FAN connectors - CD-in connector - Clear CMOS button - IrDA infrared module header - Chassis intrusion switch connector - Front panel audio connector - Front panel connector - D-Bracket2 connector - 1 x IEEE1394 connector support additional 1 ports - 3 x USB 2.0 connector support additional 6 ports - 1 x Floppy disk drive connector - 4 x Serial ATA connectors - 2 x ATA133 HD connectors
Key Features
MSI K8N SLI. Processor manufacturer: AMD, Processor socket: Socket 939. Maximum internal memory: 4 GB. RAID levels: 0+1, JBOD. Networking features: 10/100/1000 Fast Ethernet. Motherboard form factor: ATX, Power source type: ATX
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K8N SLI Socket 939 ATX (K8N SLI-F) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K8N SLI Socket 939 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K8N SLI Socket 939 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the K8N SLI-F.
