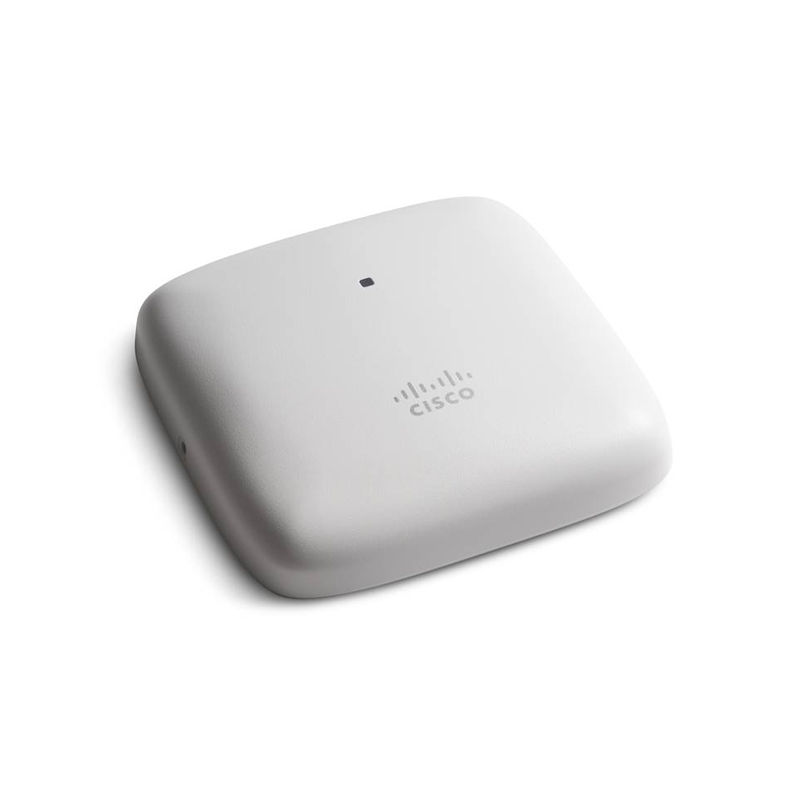

AIR-AP1840I-Z-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2 / 2x2 MIMO / Internal Antenna
Brand: Cisco · SKU: AIR-AP1840I-Z-K9 · MPN: AIR-AP1840I-Z-K9 · Category: Networking
Cisco Aironet AP1840I Series access point - Z domain
Specifications
| Model | AIR-AP1840I-Z-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.8 MR2 or later Cisco IOS ® XE Software Release 16.12 or later |
| Interfaces | 2 x 10/100/1000BASE-T RJ-45, autosensing, Power over Ethernet (PoE) Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Power Draw | 13.2 W at PSE (12.1 W at PD) with all features except USB port 17.8 W at PSE (16.0 W at PD) with USB port enabled |
| Description | Cisco Aironet AP1840I Series access point - Z domain |
| Environmental | Storage temp: -30°C to 70°C (-22°F to 158°F) Storage altitude: 25°C, 15,000 ft Operating temp: 0°C to 50°C (32°F to 122°F) Operating humidity: 10% to 90% (noncondensing) Operating altitude: 40°C, 9843 ft Note: Above 40°C, radio transmit duty cycle may be limited to 50% |
| System Memory | 1 GB DRAM 256 MB flash |
| Status Indicators | Status LED shows boot loader status, association, operating status, warnings, errors |
| Integrated Antenna | 2.4 GHz: peak gain 4 dBi, internal, omnidirectional 5 GHz: peak gain 5 dBi, internal, omnidirectional |
| 802.11ac Capabilities | 4x4 downlink MU-MIMO, four spatial streams MRC, 802.11ac beamforming 20, 40, 80 MHz channels PHY rates up to 1733 Mbps (80 MHz at 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) DFS, CSD support |
| Dimensions (W x L x H) | 7 x 7 x 1.5 in (without mounting brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco UPOE ® Cisco power injector, AIR-PWRINJ6= 802.3af PoE Cisco power injector, AIR-PWRINJ5= (only supports 802.3af) Note: With 802.3af PoE, USB port is off |
| 802.11n v2.0 Capabilities | 5 GHz, 4x4 MIMO, four spatial streams 2.4 GHz, 2x2 MIMO, two spatial streams Maximal Ratio Combining (MRC) 802.11n/a/g beamforming 20/40 MHz channels PHY data rates up to 744 Mbps (40 MHz at 5 GHz, 20 MHz at 2.4 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Dynamic Frequency Selection (DFS), CSD support |
| Available Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/-1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.79 mW) 5 GHz: 23/20/17/14/11/8/5/2 dBm (200/100/50/25/12.5/6.25/3.13/1.56 mW) |
| Supported Wireless LAN Controllers | Cisco Catalyst 9800 Wireless Controllers Cisco 3500, 5520 and 8540 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Mobility Express |
| Frequency Band & Operating Channels | Z regulatory domain: 2.412 – 2.462 GHz, 11 channels 5.180 – 5.320 GHz, 8 channels 5.500 – 5.700 GHz, 8 channels (excludes 5.600–5.640 GHz) 5.745 – 5.825 GHz, 5 channels |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1840I-Z-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2 / 2x2 MIMO / Internal Antenna (AIR-AP1840I-Z-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1840I-Z-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2 / 2x2 MIMO / Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1840I-Z-K9, Cisco Aironet AP1840I Series Access Point, 802.11ac Wave2 / 2x2 MIMO / Internal Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1840I-Z-K9.
