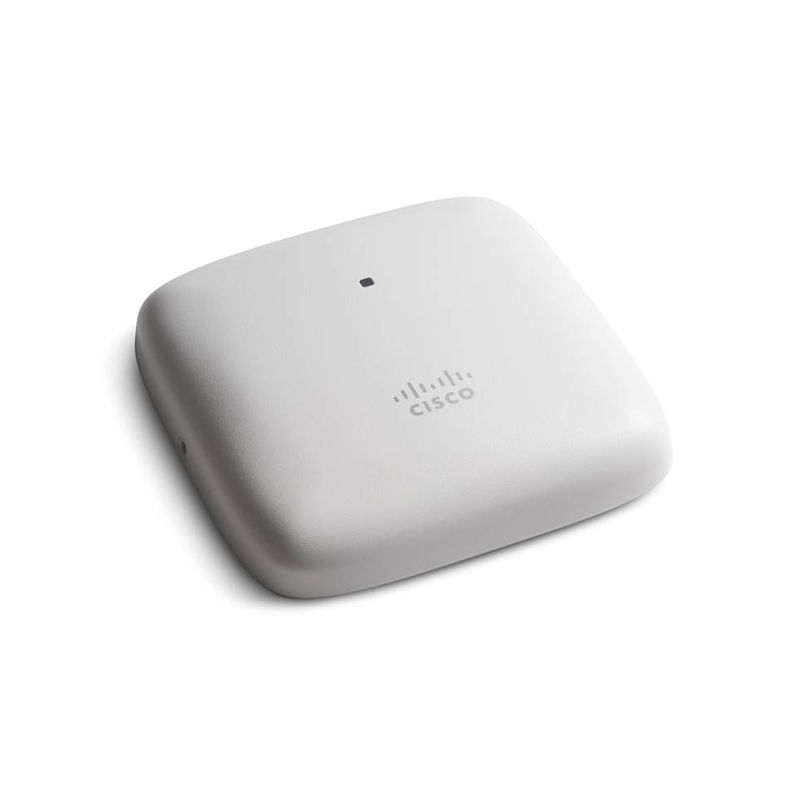

AIR-AP1840I-T-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/4x4 MU-MIMO/2.4&5GHz

Brand: Cisco · SKU: AIR-AP1840I-T-K9 · MPN: AIR-AP1840I-T-K9 · Category: Networking

AIR-AP1840I-T-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/4x4 MU-MIMO/2.4&5GHz
Request for Quote
In Stock • 10 units

Cisco Aironet AP1840I Series access point - T domain

View Wireless APs Products

Specifications

ModelAIR-AP1840I-T-K9
SoftwareCisco Unified Wireless Network Software Release 8.8 MR2 or later; Cisco IOS® XE Software Release 16.12 or later
IndicatorsStatus LED: boot loader status, association status, operating status, warnings, errors
Interfaces2 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) Management console port (RJ-45) USB 2.0 (enabled via future software)
Power Draw13.2W at PSE (12.1W at PD) with all features except USB port 17.8W at PSE (16.0W at PD) with USB port enabled
DescriptionCisco Aironet AP1840I Series access point - T domain
EnvironmentalNonoperating temperature: -30°C to 70°C (-22°F to 158°F) Nonoperating altitude: 25°C, 15,000 ft Operating temperature: 0°C to 50°C (32°F to 122°F) Operating humidity: 10% to 90% (noncondensing) Operating altitude: 40°C, 9,843 ft Note: Above 40°C, radio transmit duty cycle may be limited to max 50%
System Memory1 GB DRAM; 256 MB flash
Integrated Antenna2.4 GHz: peak gain 4 dBi, internal, omnidirectional (azimuth) 5 GHz: peak gain 5 dBi, internal, omnidirectional (azimuth)
802.11ac Capabilities4x4 downlink MU-MIMO, four spatial streams MRC; 802.11ac beamforming 20, 40, 80 MHz channels PHY data rates up to 1733 Mbps (80 MHz @5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS; CSD
Dimensions (W x L x H)7 x 7 x 1.5 in (without mounting brackets)
Input Power Requirements802.3at PoE+; Cisco Universal PoE (UPOE®); Cisco power injector, AIR-PWRINJ6=; 802.3af PoE; Cisco power injector, AIR-PWRINJ5= (802.3af only) Note: With 802.3af PoE, USB port is off
802.11n Version 2.0 Capabilities5 GHz: 4x4 MIMO, four spatial streams 2.4 GHz: 2x2 MIMO, two spatial streams Maximal Ratio Combining (MRC); 802.11n/a/g beamforming 20, 40 MHz channels PHY data rates up to 744 Mbps (40 MHz @5 GHz, 20 MHz @2.4 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS; Cyclic Shift Diversity (CSD)
Available Transmit Power Settings2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.79 mW) 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
Frequency Band and 20-MHz ChannelsT regulatory domain: 2.412–2.462 GHz: 11 channels 5.180–5.320 GHz: 3 channels 5.500–5.700 GHz: 12 channels 5.745–5.825 GHz: 5 channels
Supported Wireless LAN ControllersCisco Catalyst 9800 Wireless Controllers; Cisco 3500, 5520 and 8540 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco Mobility Express
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1840I-T-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/4x4 MU-MIMO/2.4&5GHz (AIR-AP1840I-T-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1840I-T-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/4x4 MU-MIMO/2.4&5GHz includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1840I-T-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/4x4 MU-MIMO/2.4&5GHz compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1840I-T-K9.
