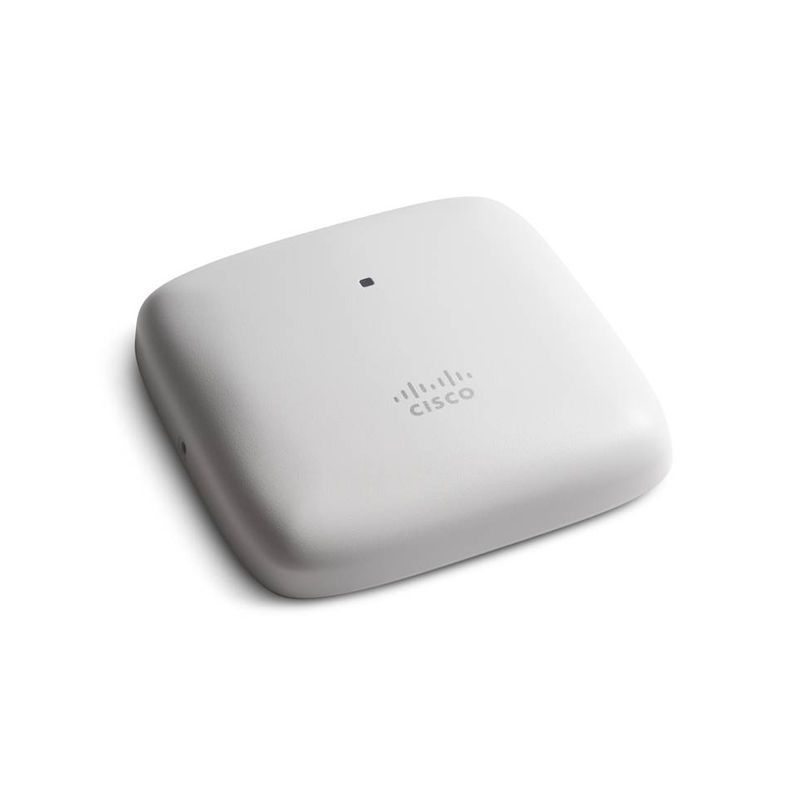

AIR-AP1840I-N-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/2x2 MIMO/Integrated Antenna
Brand: Cisco · SKU: AIR-AP1840I-N-K9 · MPN: AIR-AP1840I-N-K9 · Category: Networking
Cisco Aironet AP1840I Series access point - N domain
Specifications
| Model | AIR-AP1840I-N-K9 |
|---|---|
| Interfaces | 2 x 10/100/1000BASE-T (RJ-45, autosensing), PoE; Management console port (RJ-45); USB 2.0 (future software enabled) |
| Power Draw | 13.2W at PSE (12.1W at PD) with all features enabled except USB; 17.8W at PSE (16.0W at PD) with USB enabled |
| Description | Cisco Aironet AP1840I Series access point - N domain |
| System Memory | 1GB DRAM; 256MB flash |
| Software Support | Cisco Unified Wireless Network Software Release 8.8 MR2 or later; Cisco IOS XE Software Release 16.12 or later |
| 802.11ac Features | 4x4 downlink MU-MIMO, four spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; up to 1733 Mbps PHY data rate; A-MPDU & A-MSDU aggregation; DFS; CSD support |
| Status Indicators | Status LED: boot loader status, association, operating, warnings, errors |
| Integrated Antenna | 2.4 GHz: 4 dBi peak gain, omnidirectional; 5 GHz: 5 dBi peak gain, omnidirectional |
| 802.11n Capabilities | 5 GHz: 4x4 MIMO, four spatial streams; 2.4 GHz: 2x2 MIMO, two spatial streams; Maximal Ratio Combining (MRC); 802.11n/a/g beamforming; 20/40 MHz channels; up to 744 Mbps PHY data rate; A-MPDU & A-MSDU aggregation; Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) |
| Dimensions (W x L x H) | 7 x 7 x 1.5 in (without mounting brackets) |
| Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/-1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.79 mW); 5 GHz: 23/20/17/14/11/8/5/2 dBm (200/100/50/25/12.5/6.25/3.13/1.56 mW) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (UPOE); 802.3af PoE; Cisco power injector AIR-PWRINJ6=; Cisco power injector AIR-PWRINJ5= (802.3af only); Note: With 802.3af PoE, USB port will be off |
| Operating Frequency Bands | 2.412–2.462 GHz (11 channels); 5.180–5.320 GHz (8 channels); 5.745–5.825 GHz (5 channels) – N regulatory domain |
| Environmental Specifications | Non-operating temperature: -30 to 70°C (-22 to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: 0 to 50°C (32 to 122°F); Humidity: 10% to 90% non-condensing; Operating altitude: 40°C, 9,843 ft; Note: Above 40°C, radio transmit duty cycle may be limited to not greater than 50% |
| Supported Wireless LAN Controllers | Cisco Catalyst 9800 Wireless Controllers; Cisco 3500, 5520, 8540 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1840I-N-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/2x2 MIMO/Integrated Antenna (AIR-AP1840I-N-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1840I-N-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/2x2 MIMO/Integrated Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1840I-N-K9, Cisco Aironet 1840I Access Point, 802.11ac Wave 2/2x2 MIMO/Integrated Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1840I-N-K9.
