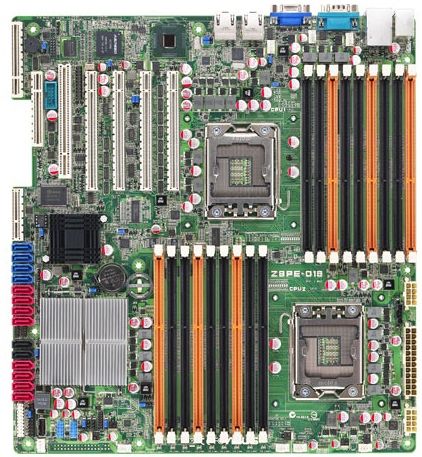

ASUS Z8PE-D18 motherboard Intel® 5520 SSI EEB
Brand: ASUS · SKU: Z8PE-D18 · MPN: Z8PE-D18 · Category: Components
ASUS Z8PE-D18, E5500, E5600, L5500, L5600, W5500, X5500, X5600, 144 GB, Triple-channel, ECC, 800,1066,1333 MHz, 144 GB
Specifications
| Depth | 330.2 mm |
|---|---|
| Width | 304.8 mm |
| Certification | - FCC, CFR47 Part 15, Class B - CE, EN55022 & EN55024 - C-TICK |
| LAN controller | Intel® 82576EB |
| Cables included | SATA |
| Memory channels | Triple-channel |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® 5520 |
| PS/2 ports quantity | 2 |
| Maximum RDIMM memory | 144 GB |
| Maximum UDIMM memory | 48 GB |
| Number of DIMM slots | 18 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 4 |
| Serial ports quantity | 1 |
| On-board graphics card | Yes |
| USB 2.0 ports quantity | 2 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 144 GB |
| Motherboard form factor | SSI EEB |
| Motherboard southbridge | Intel ICH10R |
| Storage temperature (T-T) | -40 - 70 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 330.2 mm |
Product Description
Standard EEB with 18 DIMMs and Riser Card Slot Z8PE-D18 is designed in EEB (12” x 13”) form factor, with 18 memory DIMMs with traditional riser card slot all on the same board. This board will offer you highest memory capacity without source for proprietary chassis & riser solution. ASUS PIKE Supported ASUS PIKE (Proprietary I/O Kit Expansion) is designed to break the limitation with 2 key advantages: - Provide flexible SAS storage add-on card selection. - Board edge design: locate PIKE expansion at the edge of the board for full height card support when PIKE is installed. Dual Use for Server and Workstation with Flex-E Technology and MIO Card The ASUS Flex-E technology provides the flexibility to auto-switch between 2 true PCI-E x16 Link (support 2 double deck graphic cards) or 1 PCI-E x16 Link & 2 PCI-E x8 Link (for I/O expansion). The MIO audio card offers enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional usage. Optimized for Virtualization, VMDq Supported On-board LAN supports Intel VMDq Technology which offloads CPU utilization and decreases latency to improve throughput for virtual machines. It benefits users by enhancing performance in virtualization environments. Optional ASMB4-iKVM Upgrade Kit for Easy Troubleshooting The optional ASMB4-iKVM provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. High Quality Components for Greater System Reliability ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 130W CPU, but also deliver highly efficient and reliable operations. In addition, Z8PE-D18 also features EPU (Energy Processor Unit) power saving design, virtualization, CrossFire support and so on, serving as an ideal choice for mission critical applications.
Key Features
ASUS Z8PE-D18. Intel Xeon series: E5500, E5600, L5500, L5600, W5500, X5500, X5600. Maximum internal memory: 144 GB, Memory channels: Triple-channel, ECC сompatibility: ECC. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82576EB. Motherboard form factor: SSI EEB, Motherboard chipset: Intel® 5520, Motherboard southbridge: Intel ICH10R. Width: 304.8 mm, Depth: 330.2 mm
