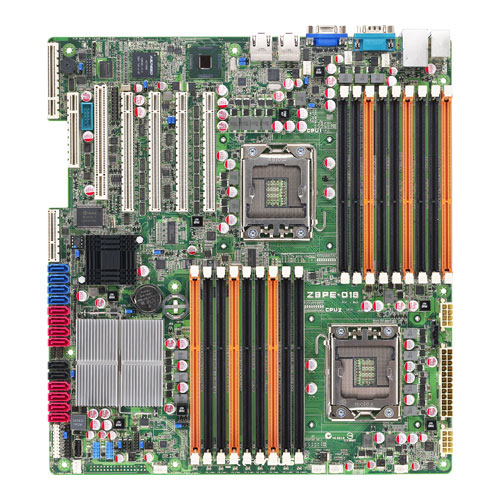

ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB
Brand: ASUS · SKU: 90-MSVCH1-G0UAY00T · MPN: 90-MSVCH1-G0UAY00T · Category: Components
ASUS Z8PE-D18, Intel, Socket B (LGA 1366), E5500, E5600, L5500, L5600, W5500, X5500, X5600, 4, 6, 4.8,5.86,6.4 GT/s, DDR3-SDRAM
Specifications
| Depth | 330.2 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 1 |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 15, B, CE, EN55022, EN55024, C |
| Microphone in | No |
| Supported QPI | 4.8,5.86,6.4 GT/s |
| TPM connector | No |
| LAN controller | Intel® 82576EB |
| Cables included | SATA |
| Processor socket | Socket B (LGA 1366) |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
| ECC сompatibility | ECC |
| Parallel connector | No |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® 5520 |
| PS/2 ports quantity | 1 |
| Power fan connector | No |
| Serial port headers | 1 |
| Maximum RDIMM memory | 192 GB |
| Maximum UDIMM memory | 48 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 330.2 mm |
Product Description
18 DIMMs & Slot 6 in Standard EEB Standard EEB with 18 DIMMs and Riser Card Slot Z8PE-D18 is designed in EEB (12” x 13”) form factor, with 18 memory DIMMs with traditional riser card slot all on the same board. This board will offer you highest memory capacity without source for proprietary chassis & riser solution. ASUS PIKE Supported ASUS PIKE (Proprietary I/O Kit Expansion) is designed to break the limitation with 2 key advantages: - Provide flexible SAS storage add-on card selection - Board edge design: locate PIKE expansion at the edge of the board for full height card support when PIKE is installed Dual Use for Server and Workstation with Flex-E Technology and MIO Card The ASUS Flex-E technology provides the flexibility to auto-switch between 2 true PCI-E x16 Link (support 2 double deck graphic cards) or 1 PCI-E x16 Link & 2 PCI-E x8 Link (for I/O expansion). The MIO audio card offers enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional usage. Optimized for Virtualization, VMDq Supported On-board LAN supports Intel VMDq Technology which offloads CPU utilization and decreases latency to improve throughput for virtual machines. It benefits users by enhancing performance in virtualization environments. Optional ASMB4-iKVM Upgrade Kit for Easy Troubleshooting The optional ASMB4-iKVM provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. High Quality Components for Greater System Reliability ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 130W CPU, but also deliver highly efficient and reliable operations. In addition, Z8PE-D18 also features EPU (Energy Processor Unit) power saving design, virtualization, CrossFire support and so on, serving as an ideal choice for mission critical applications.
Key Features
ASUS Z8PE-D18. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Intel Xeon series: E5500, E5600, L5500, L5600, W5500, X5500, X5600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 192 GB, ECC сompatibility: ECC. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2050, On-board graphics card memory: 8 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82576EB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB (90-MSVCH1-G0UAY00T) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS Z8PE-D18 Intel® 5520 Socket B (LGA 1366) SSI EEB compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVCH1-G0UAY00T.
