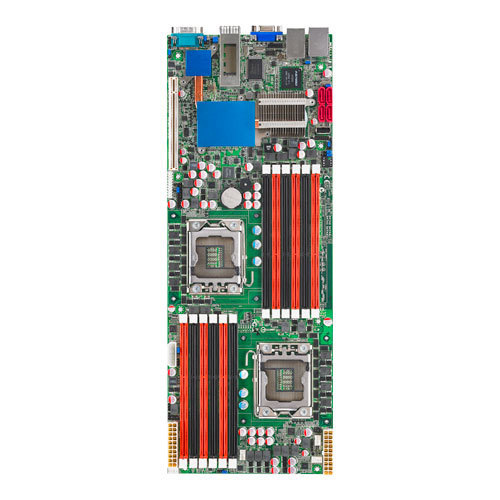

ASUS Z8PH-D12 SE/QDR Intel® 5520 Socket B (LGA 1366) SSI CEB
Brand: ASUS · SKU: 90-MSVCY1-G0UBN00Z · MPN: 90-MSVCY1-G0UBN00Z · Category: Components
ASUS Z8PH-D12 SE/QDR, Intel, Socket B (LGA 1366), Intel® Xeon®, E5500, E5600, L5500, L5600, W5500, X5500, X5600, 6.4 GT/s, DDR3-SDRAM
Specifications
| Depth | 160 mm |
|---|---|
| Width | 424 mm |
| Certification | FCC, CFR47 15, A, CE, EN55022, EN55024, C |
| LAN controller | Intel® 82574L |
| System bus rate | 6.4 GT/s |
| Processor socket | Socket B (LGA 1366) |
| Intel Xeon series | E5500, E5600, L5500, L5600, W5500, X5500, X5600 |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® 5520 |
| Maximum RDIMM memory | 192 GB |
| Maximum UDIMM memory | 48 GB |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 256 GB |
| Motherboard form factor | SSI CEB |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Compatible processor series | Intel® Xeon® |
| Operating temperature (T-T) | 10 - 35 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 424 mm x 160 mm |
Product Description
Compact Size Allows More Power Supply Options Z8PH-D12 SE/QDR is 6.3 inch in width an 16.7 inch in length, which occupies the least area compared to competitors’ and is easy for two serverboards to fit in a 1U chassis. With 4.4 inch’ width reserved for power in the chassis, customers then will have the opportunity to fit out redundant power supply. EPU Technology for Optimized Power Efficiency Equipped with the ASUS exclusive EPU technology, the Z8PH-D12 SE/QDR provides best power management power efficiency by detecting current loadings and intelligently moderating power in real-time. Infiniband The highest performing interconnect solution for Enterprise Data Centers, Cloud Computing, High-Performance Computing, and embedded environments. Performance up to 40 Gb/s and provide world-class low latency and high-bandwidth connectivity. Built-in High Quality Components The ASUS 6-Phase CPU power and 3-Phase memory power provides support for the high-end 130W CPU. It reduces input ripple current and output ripple voltage, which keeps CPUs and power modules from suffering the risk of high power stress. Furthermore, the Z8PH-D12 SE/QDR utilizes all Japan-made ultra long life conductive polymer capacitors, which can sustain 57 years at 65?, onboard for durability, improved lifespan, and enhanced thermal capacity. Optional ASMB4-iKVM Upgrade Kit for Easy Troubleshooting The optional ASMB4-iKVM upgrade kit provides remote real-time full control with BIOS-level access to the system by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. Virtualization Application Certified Virtualization provides central management through a hub and reduces power consumption and cost for cooling and space requirements. The Z8PH-D12 SE/QDR is able to provide excellent virtualization applications with ISV certification. The onboard vertical USB connector is designed for VMWare ESXi, to make full use of the system resource and reduce the TCO and IT expense.
Key Features
ASUS Z8PH-D12 SE/QDR. Processor manufacturer: Intel, Processor socket: Socket B (LGA 1366), Compatible processor series: Intel® Xeon®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 256 GB, Maximum RDIMM memory: 192 GB. LAN controller: Intel® 82574L. Motherboard form factor: SSI CEB, Motherboard chipset: Intel® 5520, Certification: FCC, CFR47 15, A, CE, EN55022, EN55024, C. Width: 424 mm, Depth: 160 mm
