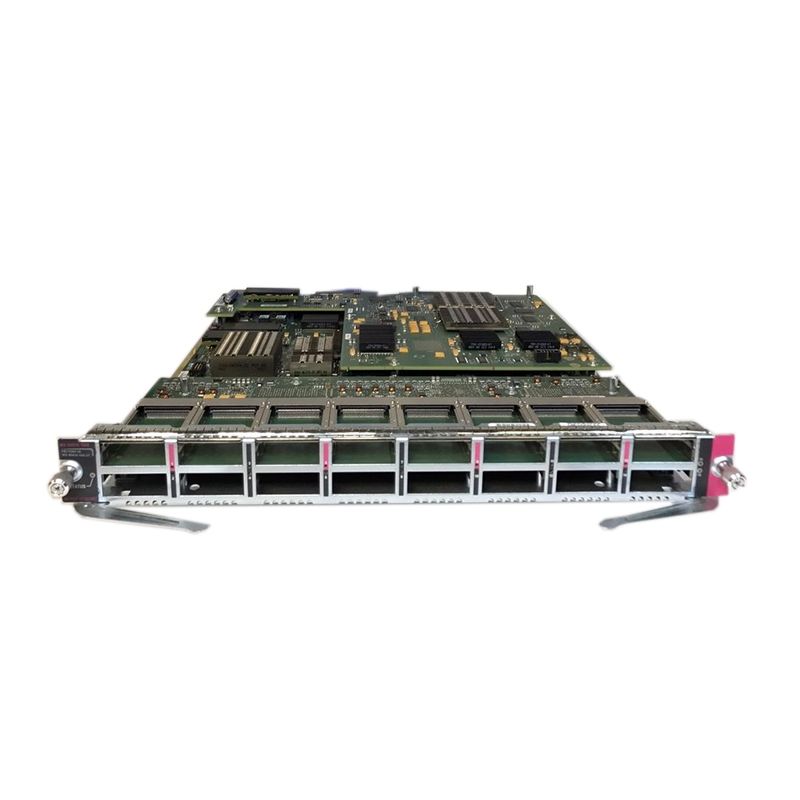

WS-X6816-10G-2T, Cisco 6500 Series Switch Module, 16x10GE/with DFC4
Brand: Cisco · SKU: WS-X6816-10G-2T · MPN: WS-X6816-10G-2T · Category: Networking
Cisco 6500 Module WS-X6816-10G-2T 16 Port 10G with DFC4
Specifications
| ETSI | ETS 300 019-2-1, Class 1.1 Storage; ETS 300 019-2-2, Class 2.1 and 2.2 Transportation; ETS 300 019-2-3, Class 3.1E Stationary Use |
|---|---|
| Model | WS-X6816-10G-2T |
| Weight | 12.72 kg |
| Indicators | Status LEDs: green (operational), red (faulty), orange (module booting); Link LEDs: green (port enabled and connected), orange (port disabled), off (port enabled and not connected) |
| Network management | ETHERLIKE-MIB (RFC 1643); IF-MIB (RFC 1573); Bridge MIB (RFC 1493); CISCO-STACK-MIB; CISCO-VTP-MIB; CISCO-CDP-MIB; RMON MIB (RFC 1757); CISCO-PAGP-MIB; CISCO-STP-EXTENSIONS-MIB; CISCO-VLAN-BRIDGE-MIB; CISCO-VLAN-MEMBERSHIP-MIB; ENTITY-MIB (RFC 2037); HC-RMON; RFC1213-MIB (MIB-II); SMON-MIB |
| Power requirements | WS-X6816-10G-2T: 488.5 W; WS-X6816-10G-2TXL: 503.5 W; WS-X6816-10T-2T: 514.96 W; WS-X6816-10T-2TXL: 529.96 W |
| Standard protocols | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, IEEE 802.3an |
| NEBS criteria levels | SR-3580 Issue 3, June 2007 (GR-63-CORE, Issue 3, and GR-1089-CORE, Issue 4) |
| Regulatory compliance | 6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, complies with the following EMC and safety standards. EMC standards: FCC Part 15 (CFR 47) Class A; ICES-003 Class A; VCCI Class A; EN55022 Class A; EN55024; CISPR24; CISPR 22 Class A; AS/NZS CISPR 22 Class A; ETS 300 386; KN 22 Class A; EN 50082-1; EN61000-3-2; EN61000-3-3; EN61000-6-1; CNS13438 Class A; KN61000-4 Series. Safety standards: UL 60950-1; CAN/CSA C22.2 No. 60950; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC 60825 Class 1; EN 60825 Class 1; 21CFR 1040 |
| Physical specifications | Occupies one slot in the Cisco Catalyst 6500 E-Series chassis; Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm); WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL weight: 13.6 lb excluding X2 components; 0.25 lb for each X2 |
| Environmental conditions | Operating temperature (agency-certified): 32 to 104 °F (0 to 40 °C); Operating temperature (designed and tested): 32 to 130 °F (0 to 55 °C); Storage temperature: -40 to 167 °F (-40 to 75 °C); Relative humidity: 10% to 90%, noncondensing; Operating altitude (agency-certified): -500 to 6500 ft (-150 to 2000 m); Operating altitude (designed and tested): -500 to 10000 ft (-150 to 3000 m) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this WS-X6816-10G-2T, Cisco 6500 Series Switch Module, 16x10GE/with DFC4 (WS-X6816-10G-2T) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This WS-X6816-10G-2T, Cisco 6500 Series Switch Module, 16x10GE/with DFC4 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the WS-X6816-10G-2T, Cisco 6500 Series Switch Module, 16x10GE/with DFC4 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-X6816-10G-2T.
