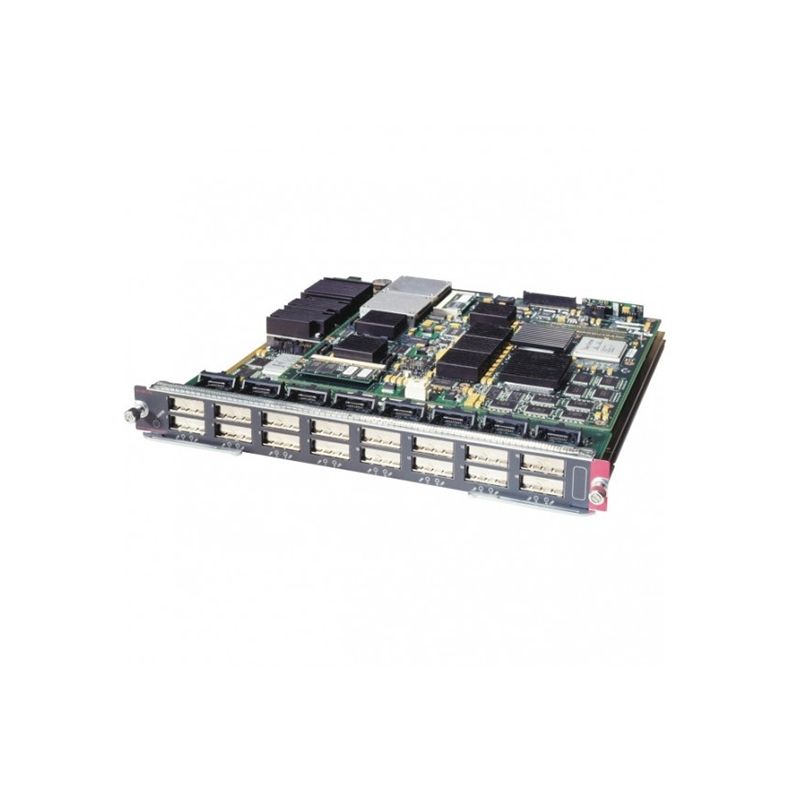

WS-X6816-10T-2T, Cisco 6500 Series Switch Module, 16x10GE RJ45, DFC4, No Fan/PSU
Brand: Cisco · SKU: WS-X6816-10T-2T · MPN: WS-X6816-10T-2T · Category: Networking
Cisco 6500 Module WS-X6816-10T-2T 16 Port 10T with DFC4
Specifications
| Model | WS-X6816-10T-2T |
|---|---|
| Weight | 14.95 kg |
| EMC standards | FCC Part 15 (CFR 47) Class A; ICES-003 Class A; VCCI Class A; EN 55022 Class A; EN 55024; CISPR 24; CISPR 22 Class A; AS/NZS CISPR 22 Class A; ETS 300 386; KN 22 Class A; EN 50082-1; EN 61000-3-2; EN 61000-3-3; EN 61000-6-1; CNS 13438 Class A; KN 61000-4 Series |
| LED indicators | Status: green (operational), red (faulty), orange (module booting); Link: green (port enabled and connected), orange (port disabled), off (port enabled and not connected) |
| Product series | Cisco Catalyst 6800 Series 10 Gigabit Ethernet modules |
| Safety standards | UL 60950-1; CAN/CSA C22.2 No. 60950; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC 60825 Class 1; EN 60825 Class 1; 21 CFR 1040 |
| Relative humidity | 10% to 90%, noncondensing |
| Standard protocols | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, IEEE 802.3an |
| Storage temperature | -40 to 167 °F (-40 to 75 °C) |
| NEBS criteria levels | SR-3580 Issue 3, June 2007 (GR-63-CORE, Issue 3, and GR-1089-CORE, Issue 4) |
| Chassis compatibility | Occupies one slot in the Cisco Catalyst 6500 E-Series chassis |
| Regulatory compliance | 6800 Series 10 Gigabit Ethernet Copper module, when installed in a system, complies with EMC and safety standards listed below |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) |
| Network management MIBs | ETHERLIKE-MIB (RFC 1643); IF-MIB (RFC 1573); Bridge MIB (RFC 1493); CISCO-STACK-MIB; CISCO-VTP-MIB; CISCO-CDP-MIB; RMON MIB (RFC 1757); CISCO-PAGP-MIB; CISCO-STP-EXTENSIONS-MIB; CISCO-VLAN-BRIDGE-MIB; CISCO-VLAN-MEMBERSHIP-MIB; ENTITY-MIB (RFC 2037); HC-RMON; RFC 1213-MIB (MIB-II); SMON-MIB |
| Module weight (reference) | WS-X6816-10G-2T & 2TXL, WS-X6816-10T-2T & 2TXL: 13.6 lb excluding X2 components; 0.25 lb for each X2 |
| ETSI environmental standards | ETS 300 019-2-1, Class 1.1 Storage; ETS 300 019-2-2, Class 2.1 and 2.2 Transportation; ETS 300 019-2-3, Class 3.1E Stationary Use |
| Operating altitude (certified) | -500 to 6500 ft (-150 to 2000 m) |
| Operating temperature (certified) | 32 to 104 °F (0 to 40 °C) |
| Power requirements (WS-X6816-10G-2T) | 488.5 W |
| Power requirements (WS-X6816-10T-2T) | 514.96 W |
| Power requirements (WS-X6816-10G-2TXL) | 503.5 W |
| Power requirements (WS-X6816-10T-2TXL) | 529.96 W |
| Operating altitude (designed and tested) | -500 to 10000 ft (-150 to 3000 m) |
| Operating temperature (designed and tested) | 32 to 130 °F (0 to 55 °C) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this WS-X6816-10T-2T, Cisco 6500 Series Switch Module, 16x10GE RJ45, DFC4, No Fan/PSU (WS-X6816-10T-2T) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This WS-X6816-10T-2T, Cisco 6500 Series Switch Module, 16x10GE RJ45, DFC4, No Fan/PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the WS-X6816-10T-2T, Cisco 6500 Series Switch Module, 16x10GE RJ45, DFC4, No Fan/PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-X6816-10T-2T.
