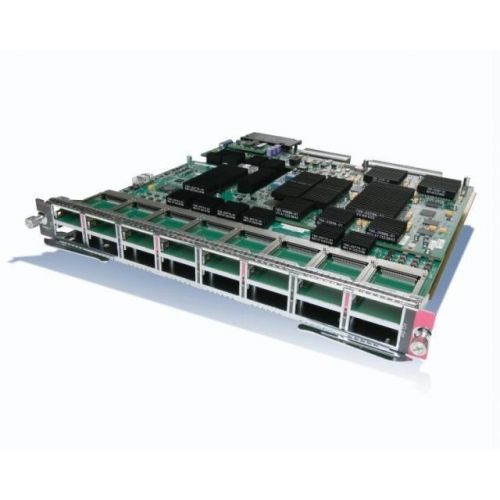

WS-X6716-10G-3C, Cisco Catalyst 6500 Switch Module, 16x10GE/DFC3C/X2 Required
Brand: Cisco · SKU: WS-X6716-10G-3C · MPN: WS-X6716-10G-3C · Category: Networking
Catalyst 6500 16 port 10 Gigabit Ethernet w/ DFC3C (req X2)
Specifications
| Model | WS-X6716-10G-3C |
|---|---|
| Series | Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules |
| Weight | 14.67 kg |
| ETSI (storage) | ETS 300 019-2-1, Class 1.1 Storage |
| Safety standards | UL 60950-1; CAN/CSA C22.2 No. 60950; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; IEC 60825 Class 1; EN 60825 Class 1; 21CFR 1040 |
| EMC standards (1) | FCC Part 15 (CFR 47) Class A; ICES-003 Class A; VCCI Class A; EN55022 Class A; EN55024; CISPR24; CISPR 22 Class A; AS/NZS CISPR 22 Class A |
| EMC standards (2) | ETS 300 386; KN 22 Class A; EN 50082-1; EN61000-3-2; EN61000-3-3; EN61000-6-1; CNS13438 Class A; KN6100-4 Series |
| Indicators (link) | Link LED: green (port enabled and connected), orange (port disabled), off (port enabled and not connected) |
| Relative humidity | 10% to 90%, noncondensing |
| Standard protocols | IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, IEEE 802.3an |
| Indicators (status) | Status LED: green (operational), red (faulty), orange (module booting) |
| Storage temperature | -40 to 167 °F (-40 to 75 °C) |
| NEBS criteria levels | SR-3580 Issue 3, June 2007 (GR-63-CORE, Issue 3, and GR-1089-CORE, Issue 4) |
| ETSI (stationary use) | ETS 300 019-2-3, Class 3.1E Stationary Use |
| ETSI (transportation) | ETS 300 019-2-2, Class 2.1 and 2.2 Transportation |
| Regulatory compliance | Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules, when installed in a system, comply with the following EMC and safety standards |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) |
| Physical specifications | Occupies one slot in the Cisco Catalyst 6500 Series chassis or Cisco 7600 Series chassis |
| Network management MIBs (1) | ETHERLIKE-MIB (RFC 1643); IF-MIB (RFC 1573); Bridge MIB (RFC 1493); CISCO-STACK-MIB; CISCO-VTP-MIB; CISCO-CDP-MIB; RMON MIB (RFC 1757) |
| Network management MIBs (2) | CISCO-PAGP-MIB; CISCO-STP-EXTENSIONS-MIB; CISCO-VLAN-BRIDGE-MIB; CISCO-VLAN-MEMBERSHIP-MIB; ENTITY-MIB (RFC 2037); HC-RMON; RFC1213-MIB (MIB-II); SMON-MIB |
| Weight (Cisco Catalyst 6704) | 10 lb excluding XENPAK and DFC components; 0.67 lb for each XENPAK |
| Power requirements (WS-X6708-10G-3C) | 444.36 W (10.58 A @ 42 V) |
| Power requirements (WS-X6716-10G-3C) | 457.8 W (10.9 A @ 42 V) |
| Power requirements (WS-X6716-10T-3C) | 509.3 W (12.1 A @ 42 V) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this WS-X6716-10G-3C, Cisco Catalyst 6500 Switch Module, 16x10GE/DFC3C/X2 Required (WS-X6716-10G-3C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This WS-X6716-10G-3C, Cisco Catalyst 6500 Switch Module, 16x10GE/DFC3C/X2 Required includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the WS-X6716-10G-3C, Cisco Catalyst 6500 Switch Module, 16x10GE/DFC3C/X2 Required compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the WS-X6716-10G-3C.
