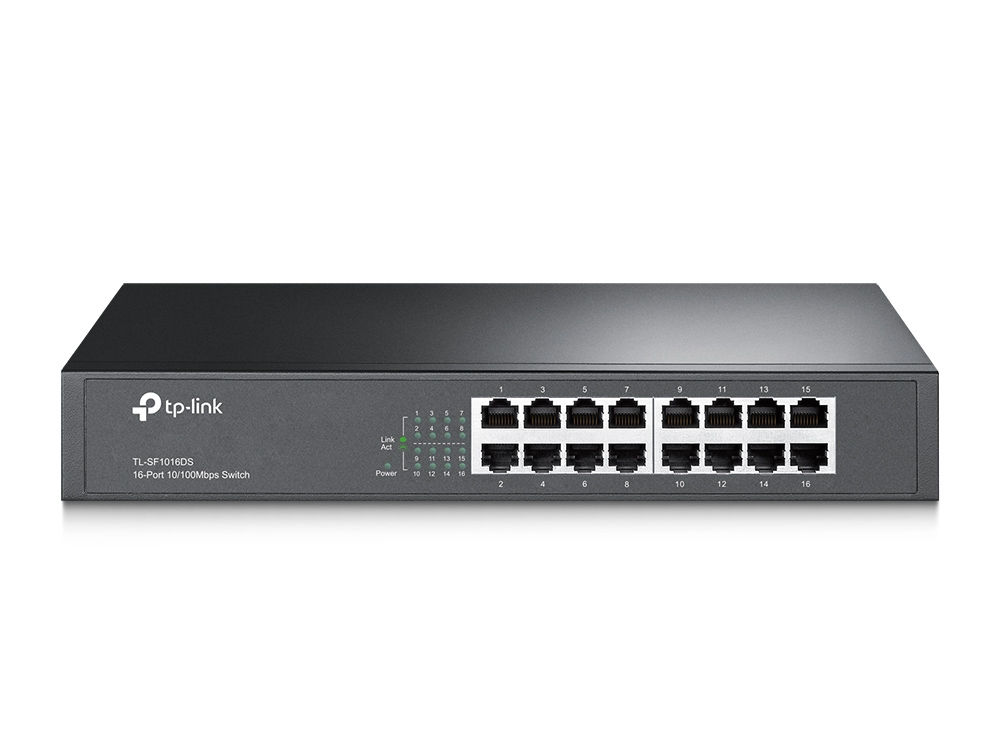

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch
Brand: TP-Link · SKU: TL-SF1016DS V4 · MPN: TL-SF1016DS V4 · Category: Networking
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting
Specifications
| Depth | 180 mm |
|---|---|
| Wi-Fi | No |
| Width | 294 mm |
| Height | 44 mm |
| Full duplex | Yes |
| Half duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 2000 |
| Power source | AC |
| Certification | FCC, CE, RoHS |
| Package depth | 250 mm |
| Package width | 400 mm |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Link, Power |
| Package height | 80 mm |
| Product colour | Black |
| Forwarding rate | 2.38 Mpps |
| AC input voltage | 100 - 240 V |
| Auto-negotiation | Yes |
| Heat dissipation | 2.06 BTU/h |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| AC input frequency | 50 - 60 Hz |
| Warranty | 3-Year Warranty |
| Dimensions | 294 mm x 180 mm x 44 mm |
Product Description
What This Product Does The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network. High Performance The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably. TP-LINK Green Technology This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled. Easy to Use The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Key Features
TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch (TL-SF1016DS V4) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-SF1016DS V4.
