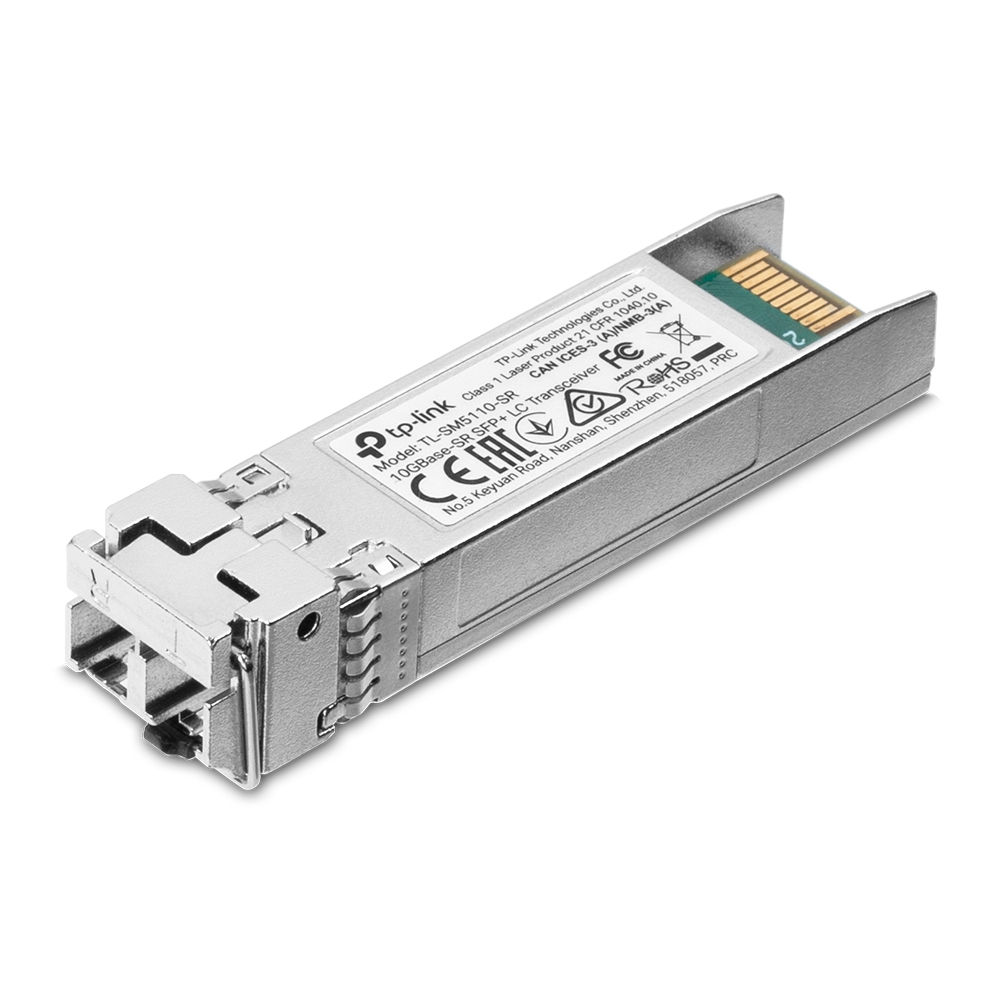

TP-Link 10GBase-SR SFP+ LC Transceiver
Brand: TP-Link · SKU: AXI-TL-SM5110-SR-AX · MPN: 10GBase-SR SFP+ LC Transceiver · Category: Networking
TP-Link 10GBase-SR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC (UPC), 50/125,62.5/125 µm, 300 m
Specifications
| Depth | 61.3 mm |
|---|---|
| Width | 14.5 mm |
| Height | 12.2 mm |
| Hot-swap | Yes |
| Wavelength | 850 nm |
| Certification | FCC, CE |
| Input voltage | 3.3 V |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Interface type | SFP+ |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Product colour | Silver |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Maximum transfer distance | 300 m |
| Storage temperature (T-T) | -40 - 80 °C |
| Maximum data transfer rate | 10000 Mbit/s |
| Harmonized System (HS) code | 85369010 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Multi-mode fiber (MMF) supported | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 14.5 mm x 61.3 mm x 12.2 mm |
Product Description
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.
Key Features
TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 14.5 mm, Depth: 61.3 mm, Height: 12.2 mm
Technical Deployment Advisory
Target Personnel
Network Security Admins
Infrastructure Fit
Leaf-Spine Data Center Fabrics
"Scaling a Leaf-Spine Data Center Fabrics requires hardware that ensures packet integrity; the TP-Link AXI-TL-SM5110-SR-AX is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 10GBase-SR SFP+ LC Transceiver (AXI-TL-SM5110-SR-AX) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 10GBase-SR SFP+ LC Transceiver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 10GBase-SR SFP+ LC Transceiver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AXI-TL-SM5110-SR-AX.
