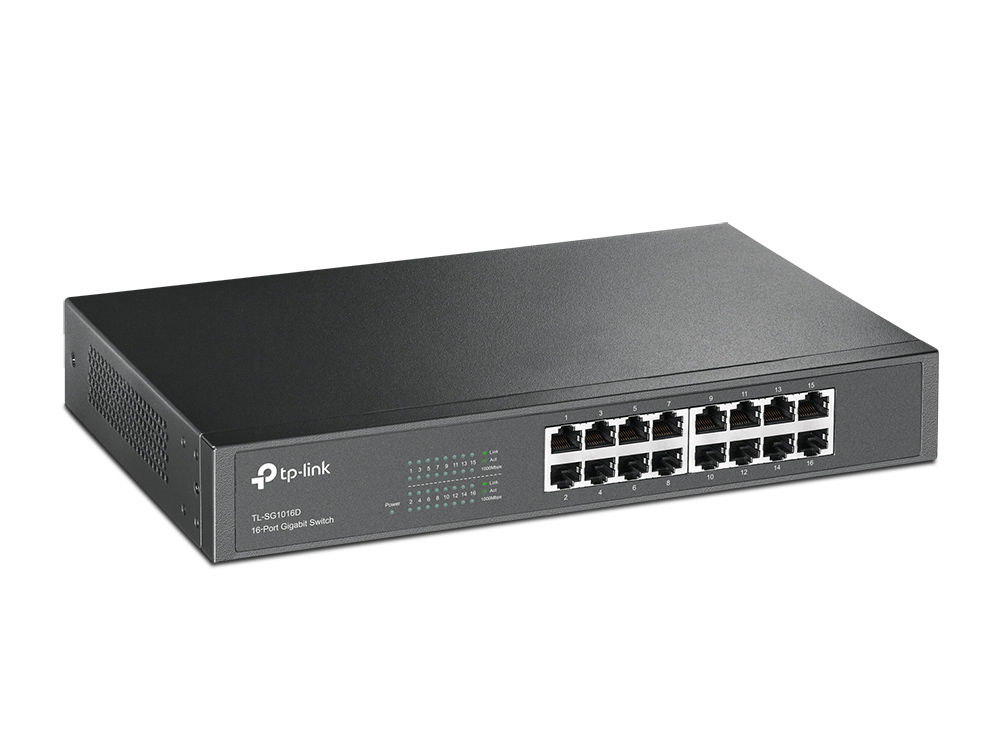

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch
Brand: TP-Link · SKU: TL-SG1016D V7 · MPN: TL-SG1016D V7 · Category: Networking
TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Specifications
| Depth | 180 mm |
|---|---|
| Width | 294 mm |
| Height | 44 mm |
| Fanless | Yes |
| Stackable | Yes |
| User guide | Yes |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Jumbo frames | 10000 |
| Package type | Box |
| Power source | AC |
| Package depth | 400 mm |
| Package width | 250 mm |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| LED indicators | Yes |
| Package height | 80 mm |
| Package weight | 1.98 kg |
| Product colour | Black |
| Rack mount kit | Yes |
| Cables included | AC |
| Forwarding rate | 23.8 Mpps |
| Power connector | AC-in jack |
| Warranty | 3-Year Warranty |
| Dimensions | 294 mm x 180 mm x 44 mm |
Product Description
What This Product Does The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network. TP-LINK Green Technology This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled. High Performance All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly. Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Key Features
TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch (TL-SG1016D V7) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the TL-SG1016D V7.
