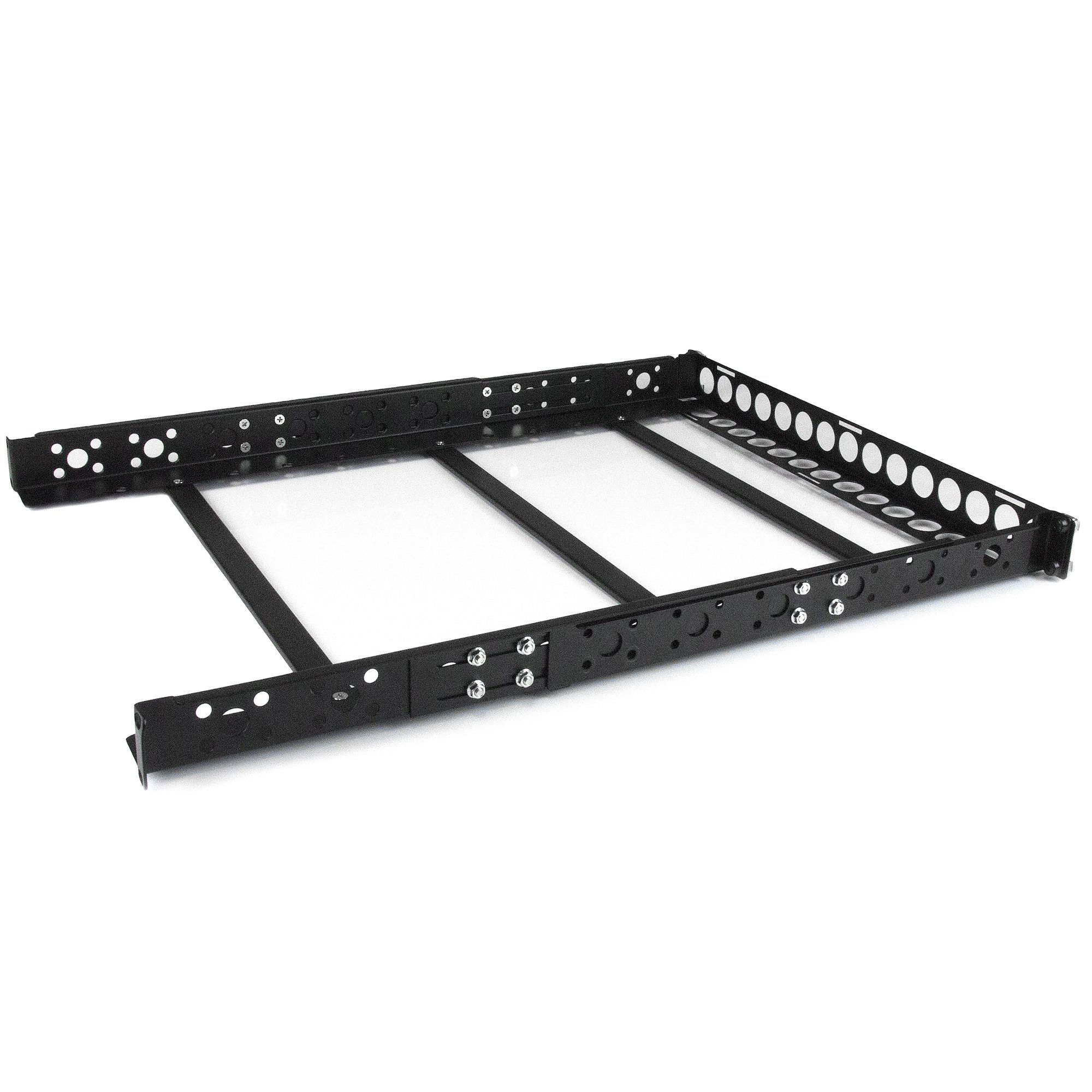

StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails
Brand: StarTech.com · SKU: STA-UNIRAILS1U · MPN: 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails · Category: Data Center
StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails, Rack rail, Steel, Black, 2.6 kg
Specifications
| Type | Rack rail |
|---|---|
| Depth | 1100 mm |
| Width | 481 mm |
| Height | 42 mm |
| Weight | 2.6 kg |
| Screw type | M5 |
| Mounting kit | Yes |
| Package depth | 490 mm |
| Package width | 107 mm |
| Rack capacity | 1U |
| Package height | 75 mm |
| Package weight | 2.9 kg |
| Product colour | Black |
| Screws included | Yes |
| Size (imperial) | 48.3 cm (19") |
| Housing material | Steel |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Mounting depth (max) | 105.4 cm |
| Mounting depth (min) | 42 cm |
| Compliance certificates | CE, RoHS |
| Maximum weight capacity | 25 kg |
| Master (outer) case width | 107 mm |
| Warranty | 3-Year Warranty |
| Weight | 2.6 kg |
| Dimensions | 481 mm x 1100 mm x 42 mm |
Product Description
Mount 19" Servers or Networking Hardware in any Standard Rack These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available. Turn non-rackmount equipment into 1U rackmount hardware These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security. Universal design mounts to almost any 19" server rack Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization. Maximum durability To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg). The StarTech.com Advantage
Key Features
StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails. Type: Rack rail, Housing material: Steel, Product colour: Black. Weight: 2.6 kg
Technical Deployment Advisory
Target Personnel
Infrastructure Leads
Infrastructure Fit
Virtualization Clusters (VMware/KVM)
"For Infrastructure Leads scaling their Virtualization Clusters (VMware/KVM) stack, the StarTech.com STA-UNIRAILS1U offers tested interoperability and enterprise-grade thermal management."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails (STA-UNIRAILS1U) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails, 19inch Rack Mount Rails compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-UNIRAILS1U.
