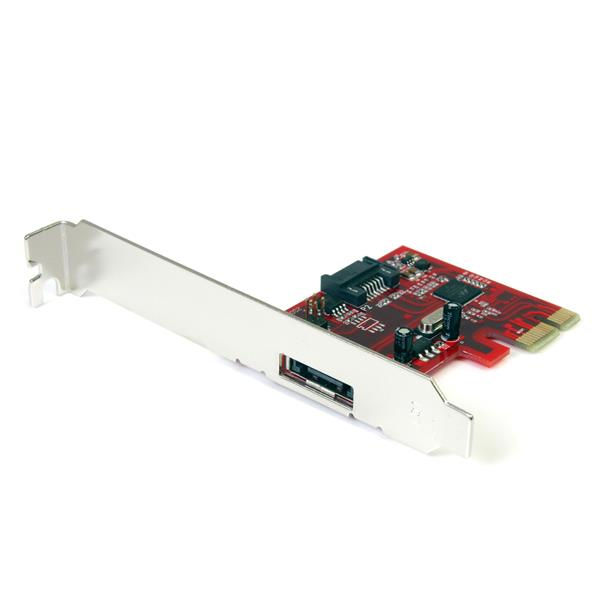

StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter

Brand: StarTech.com · SKU: PEXSAT31E1 · MPN: PEXSAT31E1 · Category: Components

StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter
Request for Quote
Backorder

StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter, PCIe, 2x 7-pin, Red, Marvell 9128, 0, 1, 5 - 50 °C. StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter (part number PEXSAT31E1) is an enterprise components product available from Server Tech Central. Key specifications include depth 67 mm, width 53 mm, height 18 mm, weight 35 g, chipset Marvell 9128, form factor LP, raid levels 0, 1, connector(s) 2x 7-pin. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth67 mm
Width53 mm
Height18 mm
Weight35 g
ChipsetMarvell 9128
Form factorLP
RAID levels0, 1
Connector(s)2x 7-pin
Package depth144 mm
Package width174 mm
Host interfacePCIe
Package height33 mm
Package weight123 g
Ports quantity2
Product colourRed
Mac compatibilityNo
Data transfer rate6000 Mbit/s
eSATA ports quantity1
Serial ports quantity1
Connectivity technologyWired
Storage temperature (T-T)-25 - 70 °C
Operating temperature (T-T)5 - 50 °C
Compatible operating systemsWindows XP/Server 2003/Vista/7/Server 2008 Linux
Mac operating systems supportedMac OS X 13.0 Ventura
Warranty3-Year Warranty
Weight35 g
Dimensions53 mm x 67 mm x 18 mm

Product Description

Add external and internal 6 Gbps SATA 3.0 ports for high speed storage access The PEXSAT31E1 2-Port PCI Express SATA/eSATA 6 Gbps (SATA 3.0) Controller Card adds one internal SATA 3.0 (6 Gbps) and one external eSATA 3.0 (6 Gbps) port, through a single PCIe slot. Providing simple connectivity between a host computer and SATA 3.0 internal and external devices, the PCIe SATA/eSATA 3.0 adapter/controller card offers a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives , Solid State Drives (SSD), and external storage arrays, which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs. The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single external SATA connection. Suitable for installation in slimline or small form factor computer cases, the PEXSAT31E1 offers a dual profile solution, including a low profile/half-height bracket for easy installation. The StarTech.com Advantage - Up to twice the speed of SATA II (3Gbps) - Includes optional low profile bracket making this a suitable solution for small form factor computer cases

Key Features

StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter. Host interface: PCIe, Connector(s): 2x 7-pin. Product colour: Red. Chipset: Marvell 9128, RAID levels: 0, 1. Mac operating systems supported: Mac OS X 13.0 Ventura. Width: 53 mm, Depth: 67 mm, Height: 18 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter (PEXSAT31E1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com 1x eSATA + 1x SATA 6 Gbps PCI Express SATA Controller Card Adapter compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXSAT31E1.
