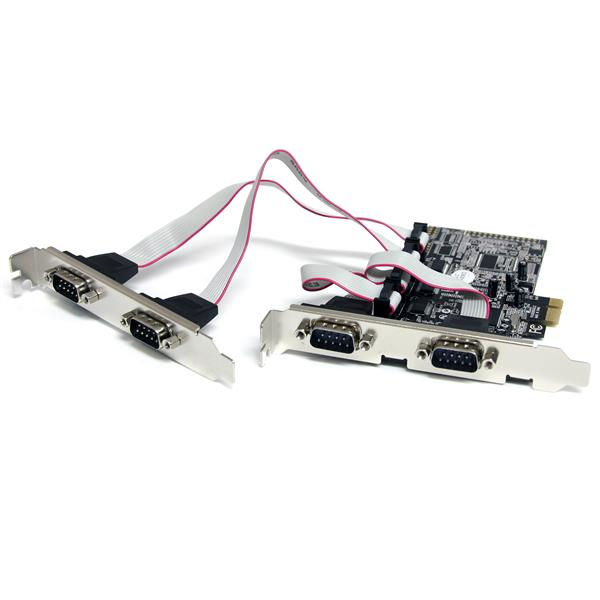

StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Brand: StarTech.com · SKU: STA-PEX4S553 · MPN: 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART · Category: Components
StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART, PCIe, Serial, RS-232, 26280 h, CE, FCC, REACH, ASIX - MCS9904CV-AA
Specifications
| Depth | 120 mm |
|---|---|
| Width | 130 mm |
| Height | 19 mm |
| Manual | Yes |
| Weight | 74 g |
| Chipset | ASIX - MCS9904CV-AA |
| Internal | Yes |
| Quantity | 1 |
| Baud rate | 128 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Certification | CE, FCC, REACH |
| Package depth | 170 mm |
| Package width | 141 mm |
| Host interface | PCIe |
| Package height | 30 mm |
| Package weight | 230 g |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 4 |
| Compliance certificates | RoHS |
| Storage temperature (T-T) | -20 - 60 °C |
| FIFO (First In, First Out) | 256 B |
| Mounting brackets included | Yes |
| Warranty | 3-Year Warranty |
| Weight | 74 g |
| Dimensions | 130 mm x 120 mm x 19 mm |
Product Description
Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot. Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards. The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs - Standard and low profile/half-height brackets included to ensure fitment in any system
Key Features
StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Mean time between failures (MTBF): 26280 h, Certification: CE, FCC, REACH. Chipset: ASIX - MCS9904CV-AA, Baud rate: 128 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 130 mm, Depth: 120 mm, Height: 19 mm
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"The STA-PEX4S553 is the primary choice for Lifecycle Management Leads performing critical Hardware Maintenance & Repairs tasks. It meets all OEM performance specifications for StarTech.com systems."
