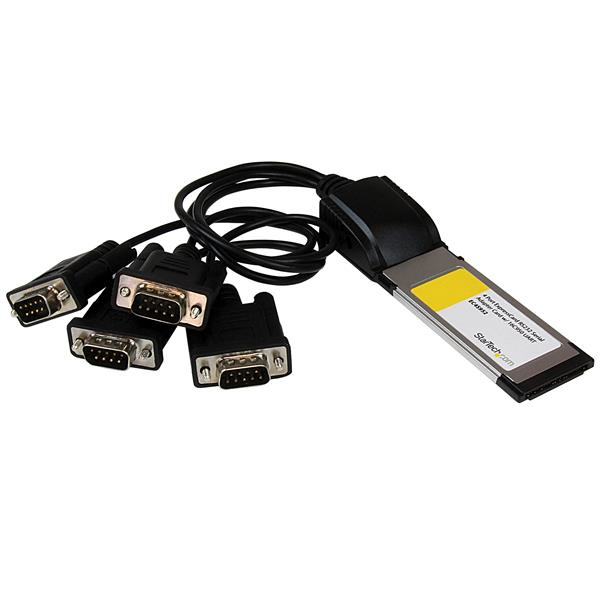

StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART
Brand: StarTech.com · SKU: EC4S952 · MPN: EC4S952 · Category: Components
StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART, ExpressCard, 4x DB9 M, Black, Silver, Oxford OXPCIe954, 0 - 55 °C, -20 - 85 °C. StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART (part number EC4S952) is an enterprise components product available from Server Tech Central. Key specifications include depth 117 mm, width 34 mm, height 20 mm, weight 300 g, chipset Oxford OXPCIe954, platform PC, connector(s) 4x DB9 M, package depth 230 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 117 mm |
|---|---|
| Width | 34 mm |
| Height | 20 mm |
| Weight | 300 g |
| Chipset | Oxford OXPCIe954 |
| Platform | PC |
| Connector(s) | 4x DB9 M |
| Package depth | 230 mm |
| Package width | 40 mm |
| Host interface | ExpressCard |
| Package height | 160 mm |
| Package weight | 350 g |
| Ports quantity | 4 |
| Product colour | Black, Silver |
| Mac compatibility | No |
| Data transfer rate | 0.9 Mbit/s |
| Serial ports quantity | 4 |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Compatible operating systems | Windows 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2 Linux |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 300 g |
| Dimensions | 34 mm x 117 mm x 20 mm |
Product Description
Control and communicate with up to four RS232 serial devices through a laptop ExpressCard slot The EC4S952 4-Port ExpressCard-based Serial Card lets you add four RS232 serial ports to your laptop or ExpressCard equipped desktop computer, using an available ExpressCard slot. The ExpressCard Serial adapter is designed based on a single-chip architecture (as opposed to cards that use a "bridge chip"), providing native PCI Express communication for greater performance and reliability, as well as reduced power consumption and CPU load reduction of up to 48%. Compatible with ExpressCard 34mm and ExpressCard 54mm card slots, the 4 Port Serial ExpressCard includes a slot spacer for greater stability while installed in 54mm slots. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - A simple and portable way to add serial ports to your laptop; with the included flexible dongle, the card can easily be transported in any laptop bag - Compatible with every style of ExpressCard slot; both 34mm and 54mm sizes. Includes a slot spacer for a perfect fitment in 54mm slots - Single chip design provides optimized speed, reliability, and power while reducing CPU load by as much as 48%
Key Features
StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART. Host interface: ExpressCard, Connector(s): 4x DB9 M. Product colour: Black, Silver. Chipset: Oxford OXPCIe954. Width: 34 mm, Depth: 117 mm, Height: 20 mm. Package width: 40 mm, Package depth: 230 mm, Package height: 160 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART (EC4S952) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4 Port Native ExpressCard RS232 Serial Adapter Card with 16C950 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the EC4S952.
