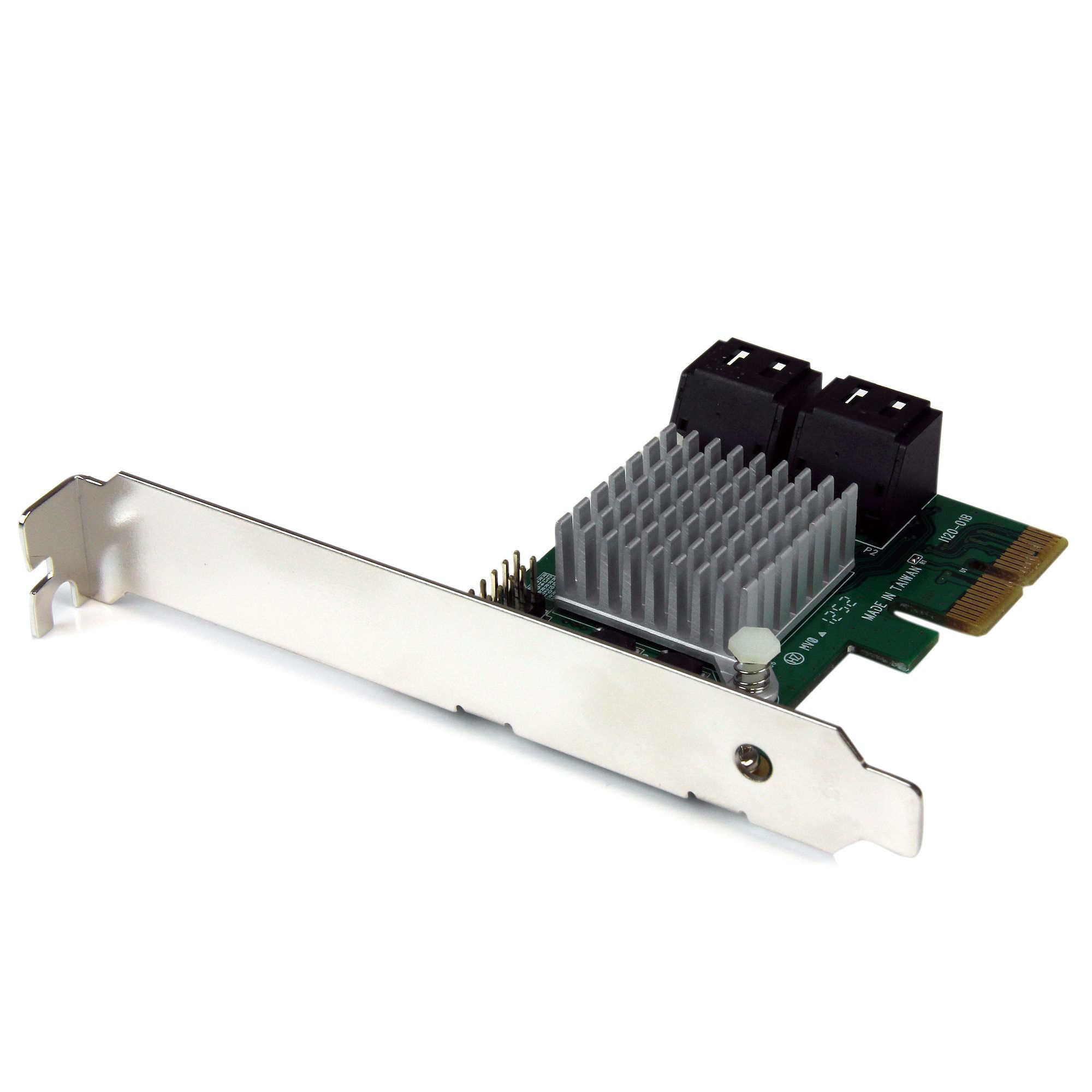

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering

Brand: StarTech.com · SKU: STA-PEXSAT34RH · MPN: 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering · Category: Components

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering
$215.97
In Stock • 10 units

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering, Serial ATA, Serial ATA III, PCI Express, 0, 1, 10, JBOD, 6 Gbit/s, Marvell - 88SE9230, 48 bit

View Components Products

Specifications

Depth70 mm
Width120 mm
Height20 mm
ManualYes
Weight49 g
ChipsetMarvell - 88SE9230
RAID levels0, 1, 10, JBOD
SSD supportYes
Package depth175 mm
Package width145 mm
Host interfacePCI Express
Package height32 mm
Package weight141 g
Drivers includedYes
Mac compatibilityYes
Data transfer rate6 Gbit/s
PCI Card form factorFull-height (low-profile)
Compliance certificatesCE, RoHS
Master (outer) case width381 mm
PCI Express slots version2.0
Storage temperature (T-T)-25 - 70 °C
Sustainability complianceYes
Master (outer) case height321 mm
Master (outer) case length488 mm
Warranty3-Year Warranty
Weight49 g
Dimensions120 mm x 70 mm x 20 mm

Product Description

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage

Key Features

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering. Supported storage drive interfaces: Serial ATA, Serial ATA III, Host interface: PCI Express. RAID levels: 0, 1, 10, JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell - 88SE9230. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 70 mm, Height: 20 mm. Master (outer) case width: 381 mm, Master (outer) case length: 488 mm, Master (outer) case height: 321 mm

Technical Deployment Advisory

Target Personnel

SAN/NAS Specialists

Infrastructure Fit

Big Data Ingestion Clusters

"Integrate the STA-PEXSAT34RH into your Big Data Ingestion Clusters to eliminate storage bottlenecks or secure your backup environment while maintaining enterprise standards."
