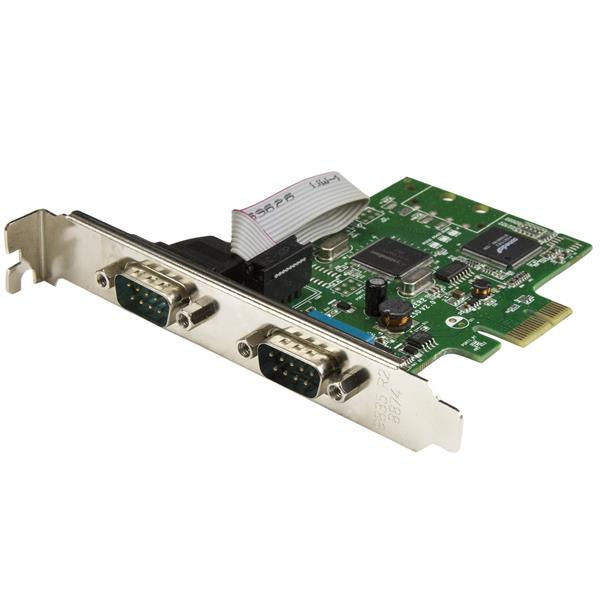

StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232
Brand: StarTech.com · SKU: STA-PEX2S1050 · MPN: 2-Port PCI Express Serial Card with 16C1050 UART - RS232 · Category: Components
StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232, PCIe, Serial, Full-height / Low-profile, RS-232, CE, FCC, Microsoft WHQL, SystemBase - SB16C1052PCI
Specifications
| Depth | 103 mm |
|---|---|
| Width | 120 mm |
| Height | 20 mm |
| Weight | 61 g |
| Chipset | SystemBase - SB16C1052PCI |
| Internal | Yes |
| Baud rate | 460.8 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Full duplex | Yes |
| Certification | CE, FCC, Microsoft WHQL |
| Package depth | 174 mm |
| Package width | 143 mm |
| Host interface | PCIe |
| Package height | 32 mm |
| Package weight | 149 g |
| Drivers included | Yes |
| Output interface | Serial |
| Flow control support | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Quick installation guide | Yes |
| Master (outer) case width | 356 mm |
| Storage temperature (T-T) | -20 - 100 °C |
| Warranty | 3-Year Warranty |
| Weight | 61 g |
| Dimensions | 120 mm x 103 mm x 20 mm |
Product Description
Add two high performance RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment. Convenient system upgrades through PCIe The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems. High-performance serial communication The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use. Easy installation The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket. The PEX2S1050 is backed by a 2-year lifetime warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Certification: CE, FCC, Microsoft WHQL. Chipset: SystemBase - SB16C1052PCI, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows.... Width: 120 mm, Depth: 103 mm, Height: 20 mm
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"For Mission-Critical Parts Replacement, using verified parts like the STA-PEX2S1050 prevents downtime and maintains the service integrity expected by IT Procurement Officers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 (STA-PEX2S1050) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PEX2S1050.
