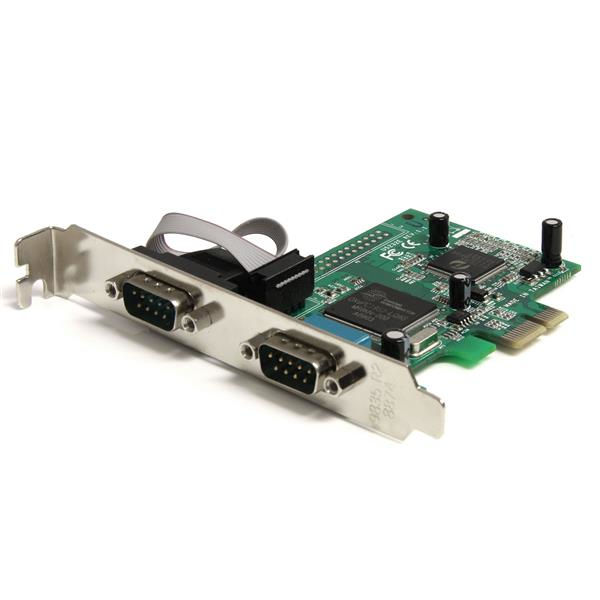

StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART
Brand: StarTech.com · SKU: PEX2S950 · MPN: PEX2S950 · Category: Components
StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART, PCIe, Serial, RS-232, 128 B, -10 - 80 °C, -20 - 100 °C. StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART (part number PEX2S950) is an enterprise components product available from Server Tech Central. Key specifications include depth 105 mm, width 20 mm, height 120 mm, weight 63 g, internal Yes, package depth 148 mm, package width 54 mm, host interface PCIe. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 105 mm |
|---|---|
| Width | 20 mm |
| Height | 120 mm |
| Weight | 63 g |
| Internal | Yes |
| Package depth | 148 mm |
| Package width | 54 mm |
| Host interface | PCIe |
| Package height | 196 mm |
| Package length | 5.83 mm |
| Package weight | 100 g |
| Ports quantity | 2 |
| Output interface | Serial |
| Data transfer rate | 0.46 Mbit/s |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 100 °C |
| FIFO (First In, First Out) | 128 B |
| Operating temperature (T-T) | -10 - 80 °C |
| Compatible operating systems | Windows 2000/XP/Vista |
| Linux operating systems supported | Yes |
| Operating relative humidity (H-H) | 5 - 85% |
| Warranty | 3-Year Warranty |
| Weight | 63 g |
| Dimensions | 20 mm x 105 mm x 120 mm |
Product Description
Add 2 RS232 serial ports to your standard or small form factor computer through a PCI Express expansion slot The PEX2S950 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART can be installed into an available PCI Express slot, to provide two high performance 16C950 RS232 serial UART channels/ports - a convenient solution for connecting modern or legacy serial devices with support for data transfer rates of up to 460 Kbps. The 2 port RS232 serial card is easy to install and configure, with support for a broad range of Windows operating systems. Plus, the card features IRQ sharing and supports plug and play serial device connections, guaranteeing convenient, hassle-free installation. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - 460 Kbps data rates offer efficient serial device performance - Installs into standard or small form-factor systems with included brackets - Easy to install and use with full step-by-step instructions
Key Features
StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012. Width: 20 mm, Depth: 105 mm, Height: 120 mm. Package width: 54 mm, Package depth: 148 mm, Package height: 196 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART (PEX2S950) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port PCI Express RS232 Serial Adapter Card with 16950 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX2S950.
