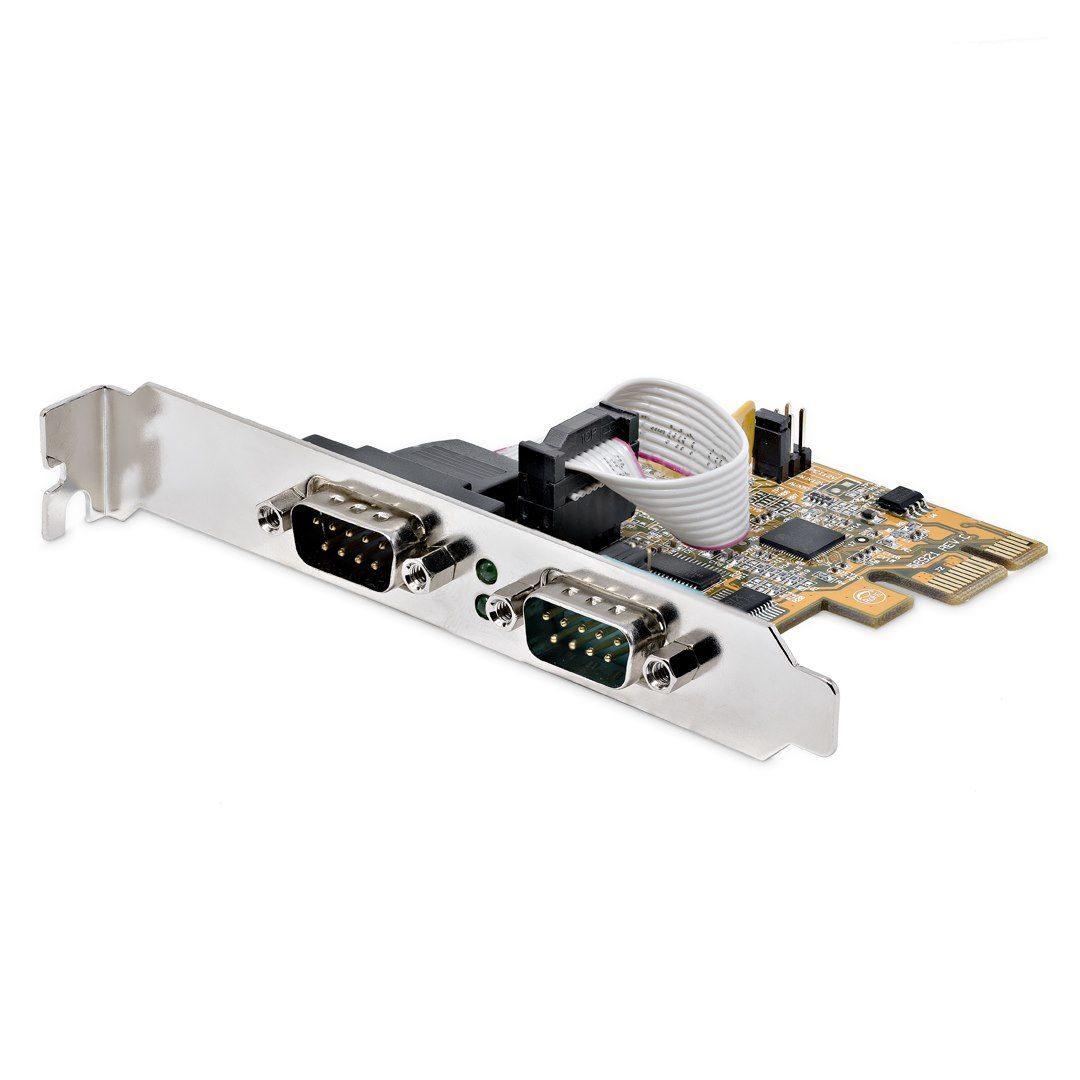

StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux
Brand: StarTech.com · SKU: STA-21050-PC-SERIAL-LP · MPN: 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux · Category: Components
StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux, PCIe, Serial, Full-height / Low-profile, PCI 2.0, RS-232, Yellow
Specifications
| Depth | 67 mm |
|---|---|
| Width | 66 mm |
| Height | 18 mm |
| Weight | 160 g |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Internal | Yes |
| Material | Steel |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Parity bit | Even, Mark, No, Odd, Space |
| Package depth | 144 mm |
| Package width | 207 mm |
| Host interface | PCIe |
| LED indicators | Activity |
| Package height | 38 mm |
| Package weight | 160 g |
| Product colour | Yellow |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Expansion card standard | PCI 2.0 |
| Quick installation guide | Yes |
| Master (outer) case width | 530 mm |
| Storage temperature (T-T) | -40 - 75 °C |
| Warranty | 3-Year Warranty |
| Weight | 160 g |
| Dimensions | 66 mm x 67 mm x 18 mm |
Product Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1 Add serial communication support to a Small Form Factor (SFF) or full-size system, using this two-port serial card. RS-232 (DB9) support enables control and communication with serial peripheral devices. Legacy Connectivity Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more. Connect with Ease The RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility. 21050-PC-SERIAL-LP is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance. The StarTech.com Advantage
Key Features
StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, LED indicators: Activity. Chipset: ASIX - AX99100, ASIX - ZT3243LFEY, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2016, Windows Server 2019. Width: 66 mm, Depth: 67 mm, Height: 18 mm
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"The STA-21050-PC-SERIAL-LP is the primary choice for IT Procurement Officers performing critical Mission-Critical Parts Replacement tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux (STA-21050-PC-SERIAL-LP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2-Port PCI Express Serial Interface Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Low/Full Profile Brackets, COM Retention, For Windows/Linux compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-21050-PC-SERIAL-LP.
