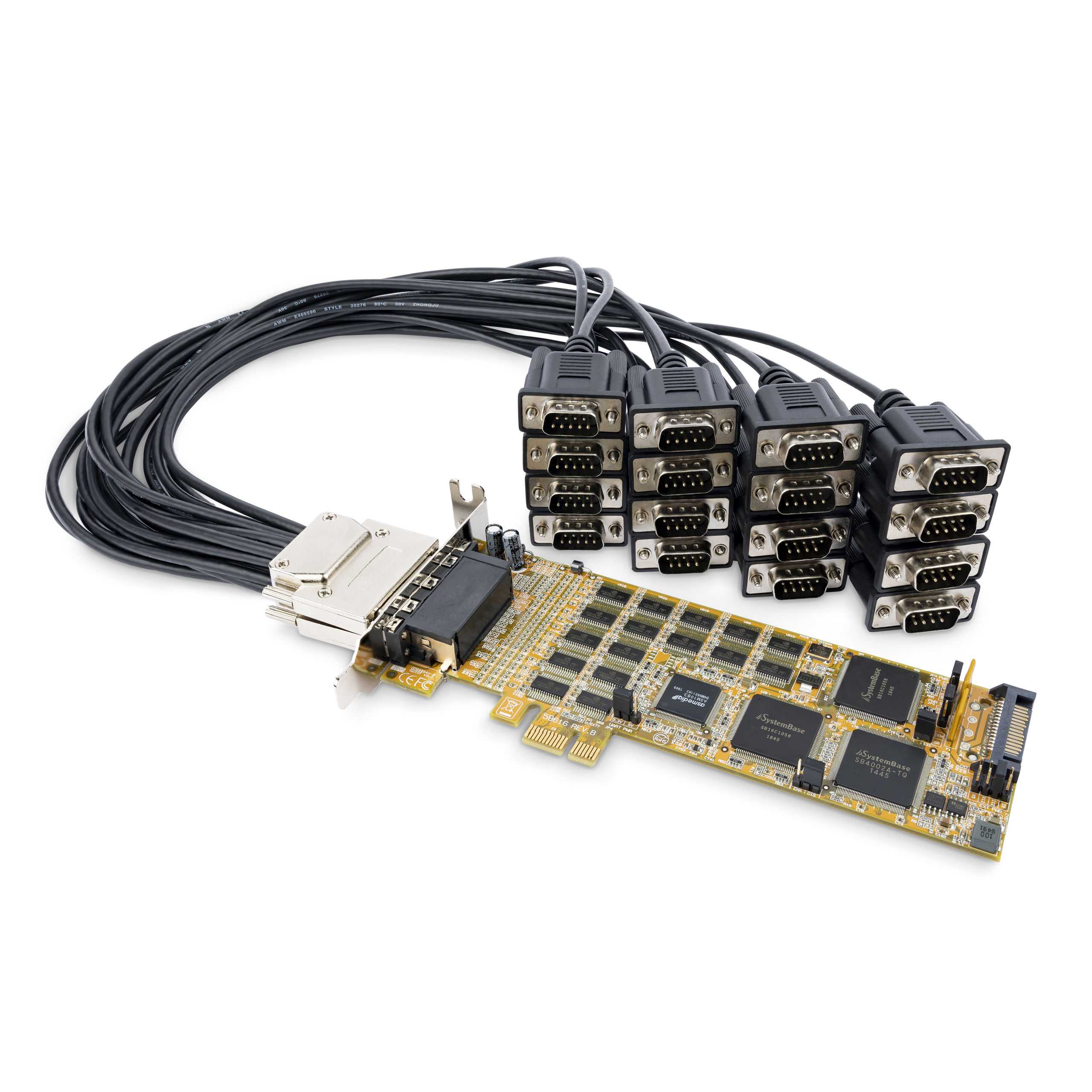

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express
Brand: StarTech.com · SKU: STA-PEX16S550LP · MPN: 16-Port Low-Profile Serial Card - RS232 - PCI Express · Category: Components
StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express, PCIe, Serial, Low-profile, PCIe 1.1, RS-232, Yellow
Specifications
| Depth | 168 mm |
|---|---|
| Width | 68 mm |
| Height | 22 mm |
| Weight | 70 g |
| Chipset | ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058 |
| Internal | Yes |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Package depth | 293 mm |
| Package width | 192 mm |
| Host interface | PCIe |
| Package height | 70 mm |
| Package weight | 1.2 kg |
| Product colour | Yellow |
| Cables included | RS-232 |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 16 |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCIe 1.1 |
| Quick installation guide | Yes |
| Master (outer) case width | 397 mm |
| Warranty | 3-Year Warranty |
| Weight | 70 g |
| Dimensions | 68 mm x 168 mm x 22 mm |
Product Description
Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots. Add 16 RS232 ports through one PCIe slot You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots. High-speed serial communication The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps. Easy installation The serial card is easy to install and configure, and compatible with Windows® only. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket (installed), and a full-profile bracket (included in the package), making it compatible with both low profile and full profile PC chassis slots. The StarTech.com Advantage
Key Features
StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Product colour: Yellow. Chipset: ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058, Baud rate: 921.6 Kbit/s, Data bits: 5, 6, 7, 8. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 68 mm, Depth: 168 mm, Height: 22 mm
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"The STA-PEX16S550LP is the primary choice for Field Engineers performing critical Server Fleet Uniformity tasks. It meets all OEM performance specifications for StarTech.com systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express (STA-PEX16S550LP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PEX16S550LP.
