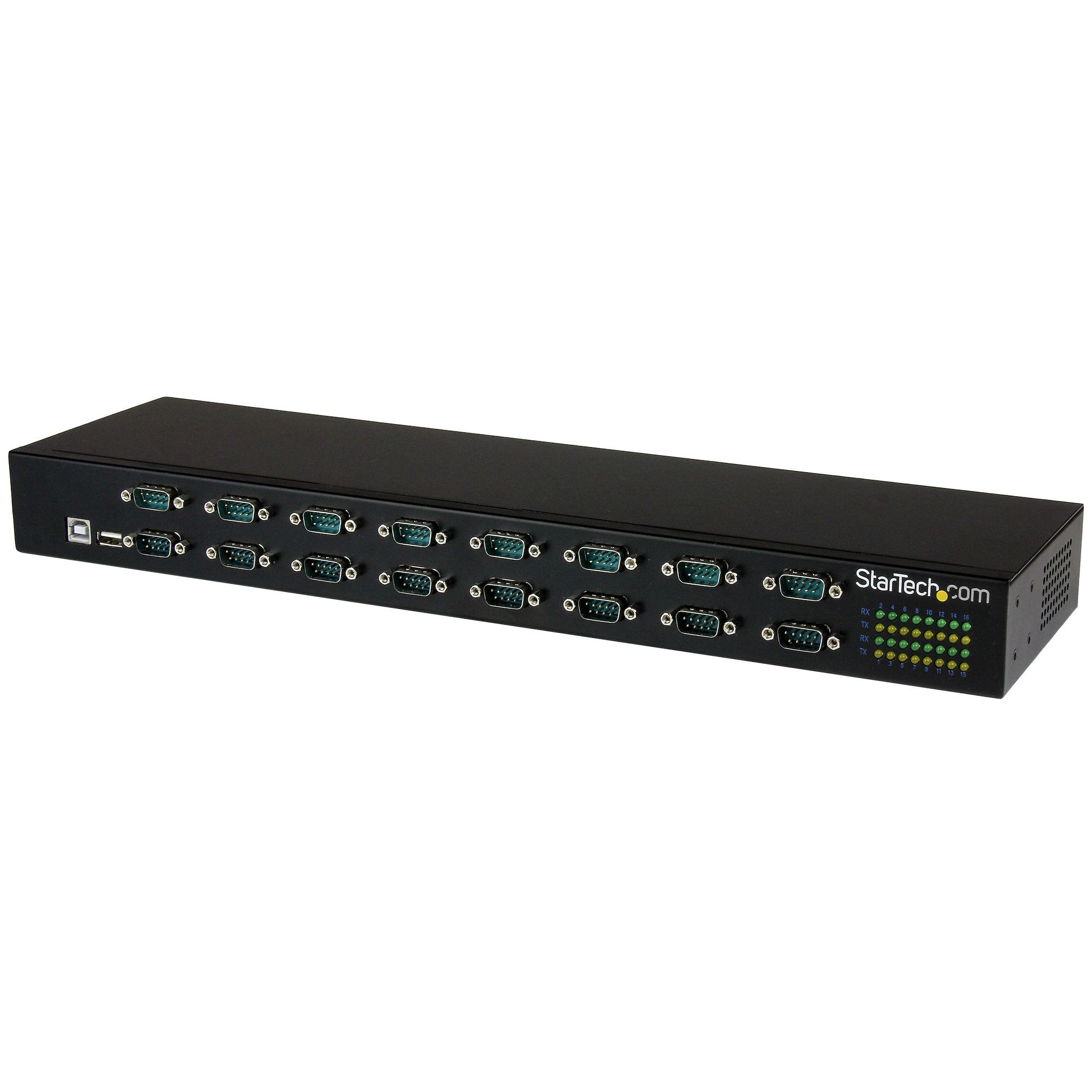

StarTech.com 16-Port USB-to-Serial Adapter Hub
Brand: StarTech.com · SKU: ICUSB23216FD · MPN: 16-Port USB-to-Serial Adapter Hub · Category: Components
StarTech.com 16-Port USB-to-Serial Adapter Hub, USB 2.0 Type-B, Serial, 480 Mbit/s, Black, Steel, 36 W
Specifications
| Depth | 430 mm |
|---|---|
| Width | 120 mm |
| Height | 45 mm |
| Weight | 1.55 kg |
| Chipset | FTDI - FT232RL |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| DC-in jack | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| RS-232 ports | 16 |
| Input current | 1.5 A |
| Input voltage | 100 - 240 V |
| Package depth | 451 mm |
| Package width | 215 mm |
| Rack mounting | Yes |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| LED indicators | Yes |
| Output current | 3 A |
| Output voltage | 12 V |
| Package height | 61 mm |
| Package weight | 2.31 kg |
| Ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 1.55 kg |
| Dimensions | 120 mm x 430 mm x 45 mm |
Product Description
Convert a USB port into 16 RS232 serial ports in an industrial rack-mountable chassis - and daisy chain multiple hubs for a scalable solution Here's an easy and cost-efficient way to add RS232 serial capability to your industrial setting. This 16-port USB-to-serial adapter hub features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count. A scalable solution for changing needs This rack-mountable USB serial hub lets you add 16 serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a higher cost serial hub. Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including: industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems. Built-in convenience The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer. Meets the demands of industrial environments With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F); ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options. The StarTech.com Advantage
Key Features
StarTech.com 16-Port USB-to-Serial Adapter Hub. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Power consumption (max): 36 W, Input voltage: 100 - 240 V, Input current: 1.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 430 mm, Height: 45 mm
Technical Deployment Advisory
Target Personnel
Lifecycle Management Leads
Infrastructure Fit
Hardware Maintenance & Repairs
"As a genuine StarTech.com component, the ICUSB23216FD ensures 100% compatibility for Hardware Maintenance & Repairs. It is an essential part for Lifecycle Management Leads tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 16-Port USB-to-Serial Adapter Hub (ICUSB23216FD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 16-Port USB-to-Serial Adapter Hub includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 16-Port USB-to-Serial Adapter Hub compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICUSB23216FD.
