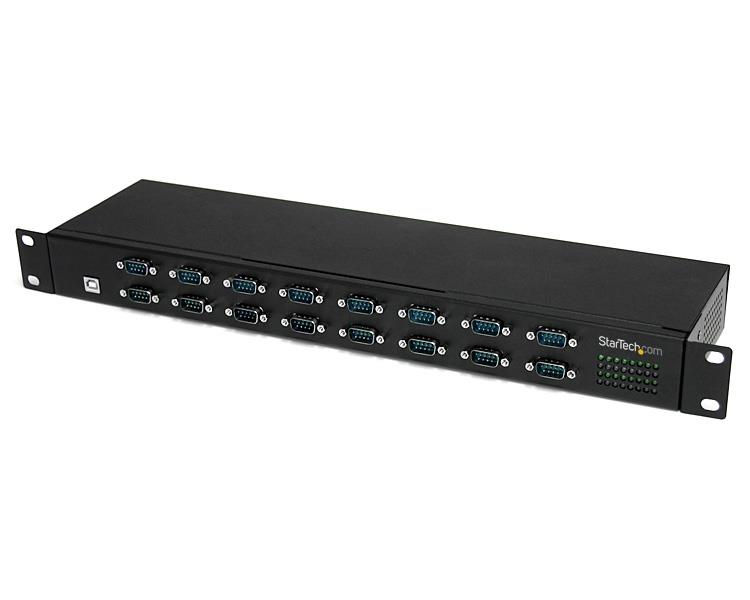

StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer
Brand: StarTech.com · SKU: ICUSB23216F · MPN: ICUSB23216F · Category: Components
StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer, USB 2.0 Type-B, Serial, 480 Mbit/s, Black, Steel, Data. StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer (part number ICUSB23216F) is an enterprise components product available from Server Tech Central. Key specifications include depth 430 mm, width 120 mm, height 45 mm, manual Yes, weight 1.52 kg, chipset FTDI - FT232RL, baud rate 926.1 Kbit/s, data bits 7, 8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 430 mm |
|---|---|
| Width | 120 mm |
| Height | 45 mm |
| Manual | Yes |
| Weight | 1.52 kg |
| Chipset | FTDI - FT232RL |
| Baud rate | 926.1 Kbit/s |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| RS-232 ports | 16 |
| Certification | CE, FCC, RoHS |
| Input current | 0.8 A |
| Input voltage | 110 - 240 V |
| Package depth | 448 mm |
| Package width | 215 mm |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Serial |
| LED indicators | Data |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Package height | 61 mm |
| Package weight | 2.5 kg |
| Ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 1.52 kg |
| Dimensions | 120 mm x 430 mm x 45 mm |
Product Description
The ICUSB23216F 16-Port Rack Mountable FTDI USB Serial Hub (FTDI) adds 16 RS232 Serial ports with data transfer rates up to 921.6 Kbps, for control by a desktop or laptop computer system using a single USB port. This durable, hardened USB to RS232 hub offers an all metal chassis, which fits into standard 19-inch server storage racks for an organized industrial USB to COM port solution, and supports an extended -40°C to 85°C (-40°F to 185°F) operating temperature range that allows for reliable use in even the harshest environments. The hub features COM port retention, retaining assigned serial COM port values, allowing the same values to automatically be re-assigned to the port provided by the adapter in the event it is disconnected, then re-connected to the host computer. The USB-serial hub includes both an AC adapter and Terminal Block power options and features a reliable FTDI USB to serial chipset that offers simple installation into a broad range of operating systems including Windows®, Linux and Mac OS. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Extended, hardened operating temperature range allows the device to remain operational in harsh conditions - Adding 16 ports using a single USB port delivers maximum control of several RS232 serial devices, without having to purchase multiple I/O cards - Rack-mountable, all-metal chassis for durability in industrial environments
Key Features
StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Power consumption (typical): 30 W, Input voltage: 110 - 240 V, Input current: 0.8 A. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 430 mm, Height: 45 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer (ICUSB23216F) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 16 Port Rackmount FTDI USB to Serial COM Adapter Hub - RS232 Multiplexer compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the ICUSB23216F.
