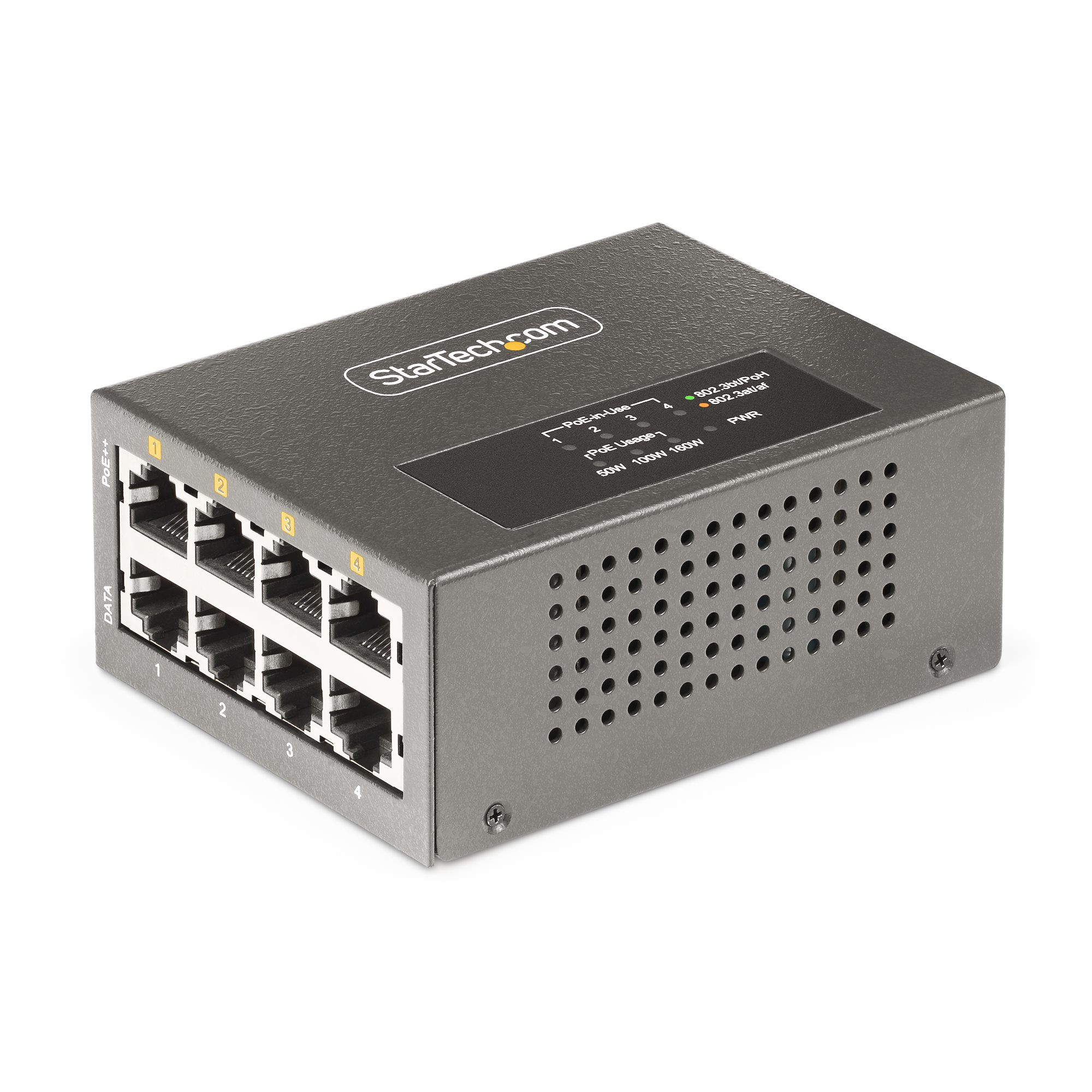

StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged
Brand: StarTech.com · SKU: STA-AS445C-POE-INJECTOR · MPN: 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged · Category: Components
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, 10,100,1000,2500,5000 Mbit/s, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, Cat5e, Cat6, Cat6a, Microsemi - PD69208T4, Microsemi - PD69200R, Grey
Specifications
| Depth | 94 mm |
|---|---|
| Width | 70 mm |
| Height | 39 mm |
| Weight | 278 g |
| Chipset | Microsemi - PD69208T4, Microsemi - PD69200R |
| DC-in jack | Yes |
| Jumbo frames | 9000 |
| Input current | 2.5 A |
| Package depth | 300 mm |
| Package width | 170 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Status |
| Output current | 3.3 A |
| Package height | 90 mm |
| Package weight | 1.7 kg |
| Product colour | Grey |
| Wall mountable | Yes |
| Housing material | Metal |
| RJ-45 input ports | 4 |
| RJ-45 output ports | 4 |
| AC adapter included | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Warranty | 3-Year Warranty |
| Weight | 278 g |
| Dimensions | 70 mm x 94 mm x 39 mm |
Product Description
Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ). Versatile PoE Injector Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage. Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup. Flexible Power Options Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter. The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures. Increased Network Speeds The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access. The StarTech.com Advantage
Key Features
StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,5000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u. Product colour: Grey, Housing material: Metal, Maximum operating distance: 100 m. AC adapter input voltage: 100 - 240 V, Input current: 2.5 A, AC adapter output voltage: 54 V. Compliance certificates: CE, Federal Communications Commission (FCC), UKCA. Width: 70 mm, Depth: 94 mm, Height: 39 mm
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"As a genuine StarTech.com component, the STA-AS445C-POE-INJECTOR ensures 100% compatibility for Mid-Lifecycle Capacity Expansion. It is an essential part for Systems Maintenance Techs tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged (STA-AS445C-POE-INJECTOR) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-AS445C-POE-INJECTOR.
