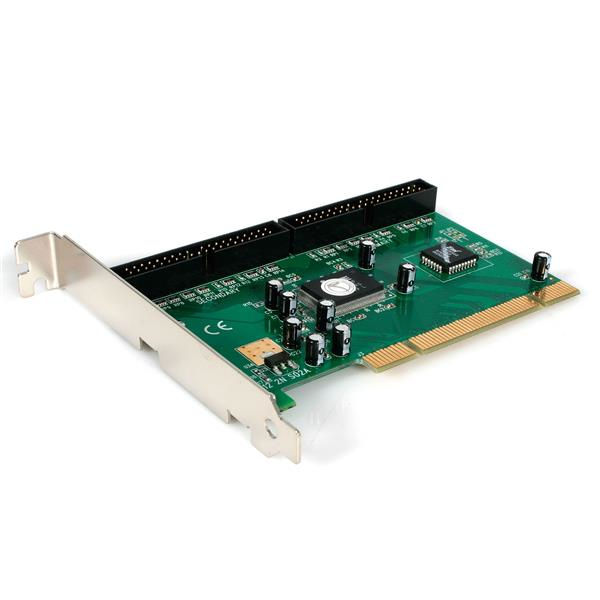

StarTech.com 2 Port PCI IDE Controller Adapter Card
Brand: StarTech.com · SKU: PCIIDE2 · MPN: PCIIDE2 · Category: Components
StarTech.com 2 Port PCI IDE Controller Adapter Card, PCI, IDE/ATA, ITE IT8212F, 0.133 Gbit/s, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Windows Server 2008 R2, Windows Server 2012
Specifications
| Depth | 120 mm |
|---|---|
| Width | 18 mm |
| Height | 85 mm |
| Weight | 73 g |
| Chipset | ITE IT8212F |
| Internal | Yes |
| I/O ports | 2 - IDC 40 M |
| Package depth | 210 mm |
| Package width | 39 mm |
| Host interface | PCI |
| Package height | 143 mm |
| Package weight | 220 g |
| Ports quantity | 2 |
| Output interface | IDE/ATA |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Data transfer rate (max) | 0.133 Gbit/s |
| Compatible operating systems | DOS, Windows 98/ME/NT4/2000/XP/Server 2003/Vista |
| Supported data transfer rates | 133 MB/s |
| Linux operating systems supported | Yes |
| Number of Parallel ATA connectors | 2 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Warranty | 3-Year Warranty |
| Weight | 73 g |
| Dimensions | 18 mm x 120 mm x 85 mm |
Product Description
Add two internal IDE connectors to a computer through a PCI slot This 2 Port IDE (Ultra ATA/133) Controller Card can be installed in a PCI slot, to add more IDE storage capability to your PC. Providing two IDE drive channels with support for two drives per channel and data transfer rates of up to 133 MBps, this adapter card can act as the primary boot device and replace built-in IDE ports, or provide 2 additional high-speed ports to the system. Designed to perform with high-speed IDE/133 drives, the adapter card also supports 100 MBps hard drives, 66 MBps hard drives, 33 MBps hard drives, CD-ROMS, CDRW drives, and other ATA peripherals. To ensure hassle-free installation, the IDE Controller Card includes Bus-Master drivers for Windows 98/ME/NT 4/2000/XP and Vista. The StarTech.com Advantage - Two dual channel IDE connectors support up to four PATA devices on one card - Backed by a StarTech.com lifetime warranty and free lifetime technical support
Key Features
StarTech.com 2 Port PCI IDE Controller Adapter Card. Host interface: PCI, Output interface: IDE/ATA. Chipset: ITE IT8212F, Data transfer rate (max): 0.133 Gbit/s. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012. Width: 18 mm, Depth: 120 mm, Height: 85 mm. Package width: 39 mm, Package depth: 210 mm, Package height: 143 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port PCI IDE Controller Adapter Card (PCIIDE2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port PCI IDE Controller Adapter Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port PCI IDE Controller Adapter Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCIIDE2.
